Removal







REMOVAL





1. Remove cylinder head cover(s). Cylinder Head Cover - Removal

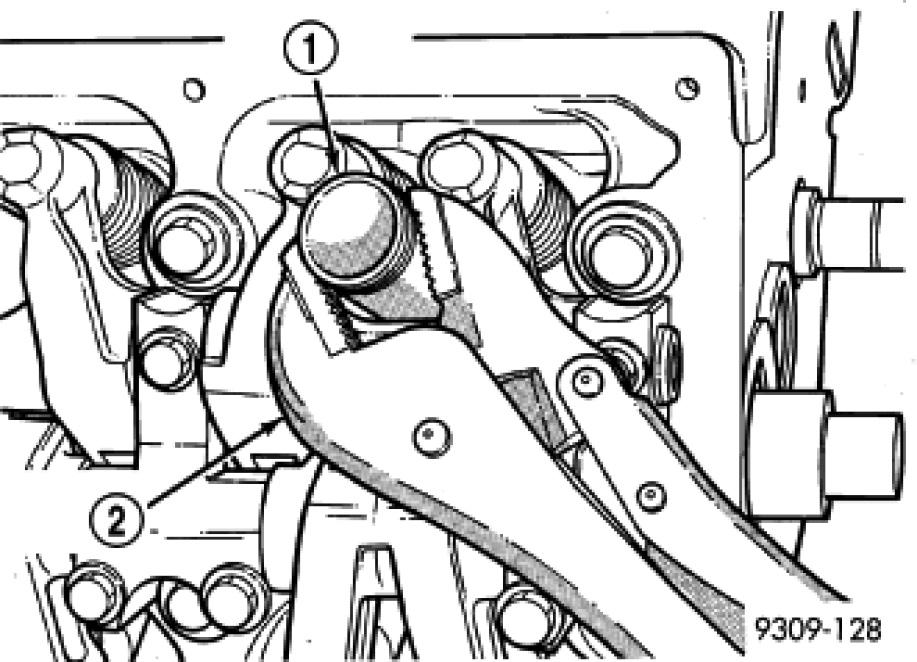

2. Using suitable locking pliers, remove the tube from the cylinder head and discard tube.
3. Clean area around spark plug with Mopar(R) Parts Cleaner or equivalent.
