Vibration Damper - Removal

REMOVAL





1. Disconnect negative battery cable.
2. Raise vehicle on hoist.
3. Remove the right front wheel and accessory drive belt splash shield.
4. Remove accessory drive belt Accessory Drive Belt - Removal.
5. Remove vibration damper bolt.

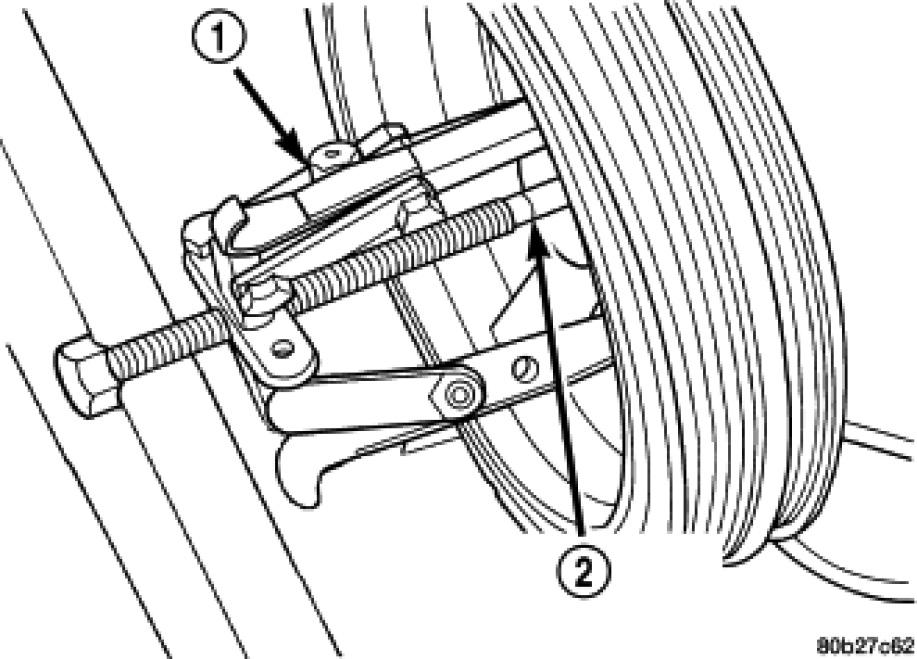

6. Use Special Tool 1023 puller (1) , and insert 9020-R (2), remove crankshaft damper.
