Vibration Damper - Installation







INSTALLATION

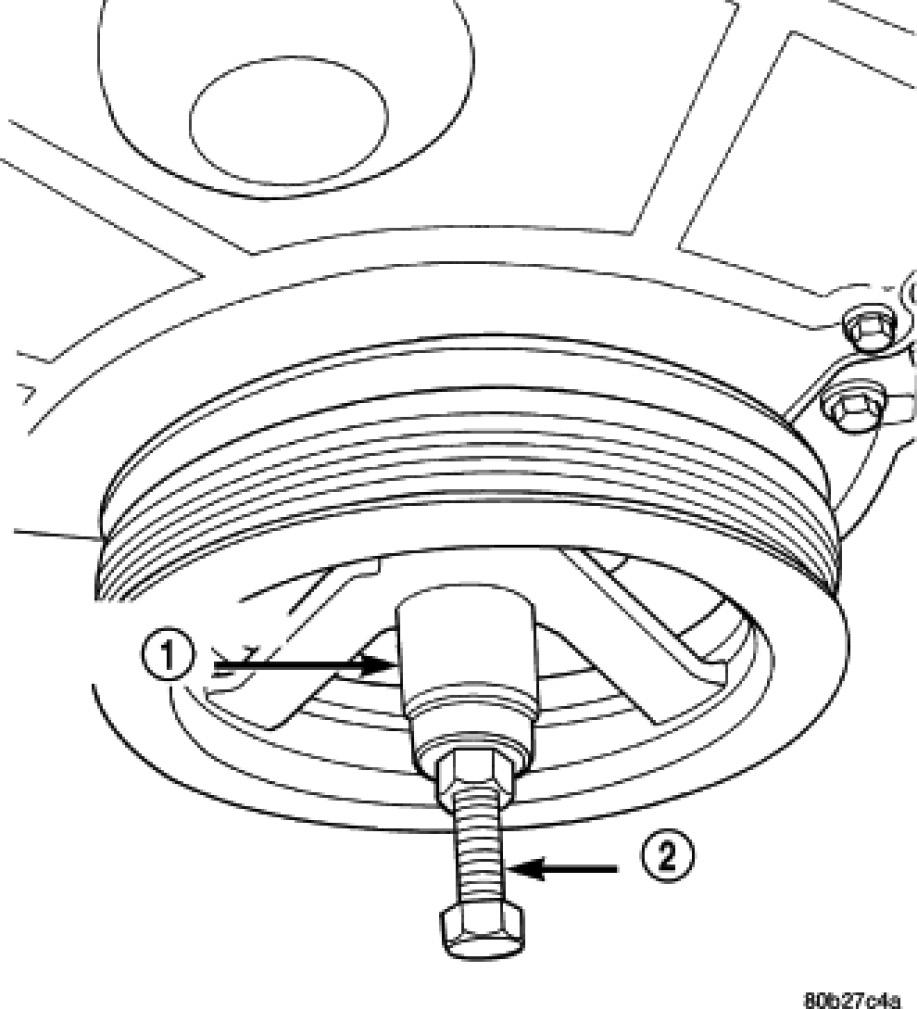

1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt (2), with Nut and Thrust Bearing from 6792, and 6792-1 (1) Installer.
2. Install vibration damper bolt. Torque bolt to 95 Nm (70 ft. lbs.).
3. Install accessory drive belt Accessory Drive Belt - Installation.
4. Install the accessory drive belt splash shield and right front wheel.
5. Lower vehicle.
6. Connect negative battery cable.
