Installation

INSTALLATION





1. Inspect the draincock body and O-ring for damage or foreign material. Replace as necessary.

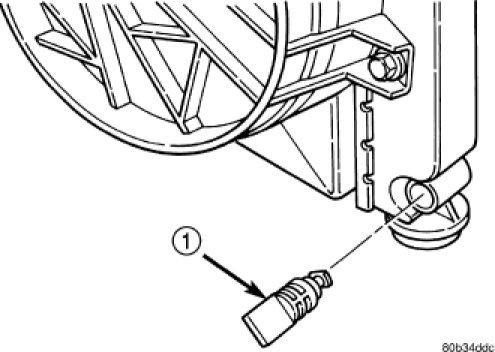

2. Position the draincock assembly horizontally to the tank opening with the manufactures identification mark facing down.
3. Push the draincock assembly into the tank opening while rotating clockwise until it snaps into place.
4. Close the draincock stem by turning clockwise until it stops at the horizontal position.
5. Fill the cooling system Service and Repair.
