Radiator Fan - Installation

INSTALLATION

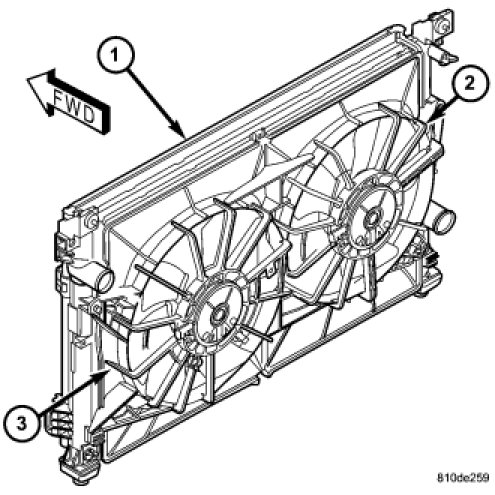

1. Install the radiator fan(s) into mounts and attaching clips on the radiator.
2. Install radiator fan(s) attaching screws. Tighten to 5 Nm (45 in. lbs.).
3. Connect the radiator fan(s) electrical connectors.
4. Install the front fascia Front Fascia - Installation.
5. Install the upper radiator mounts to the crossmember bolts, if removed. Tighten to 8 Nm (70 in. lbs.).
