Radiator Pressure Cap - Description







DESCRIPTION

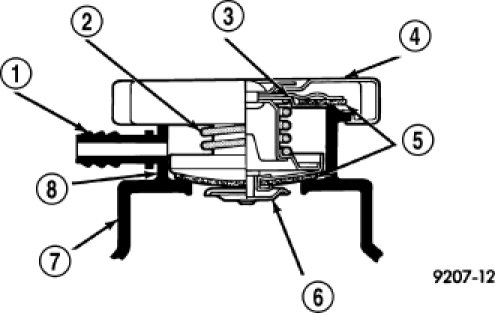

The cooling system pressure cap is located on the coolant pressure container. The cap construction includes; stainless steel swivel top, rubber seals, and retainer, main spring, and a spring loaded valve.
