Radio, Stereo, and Compact Disc

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

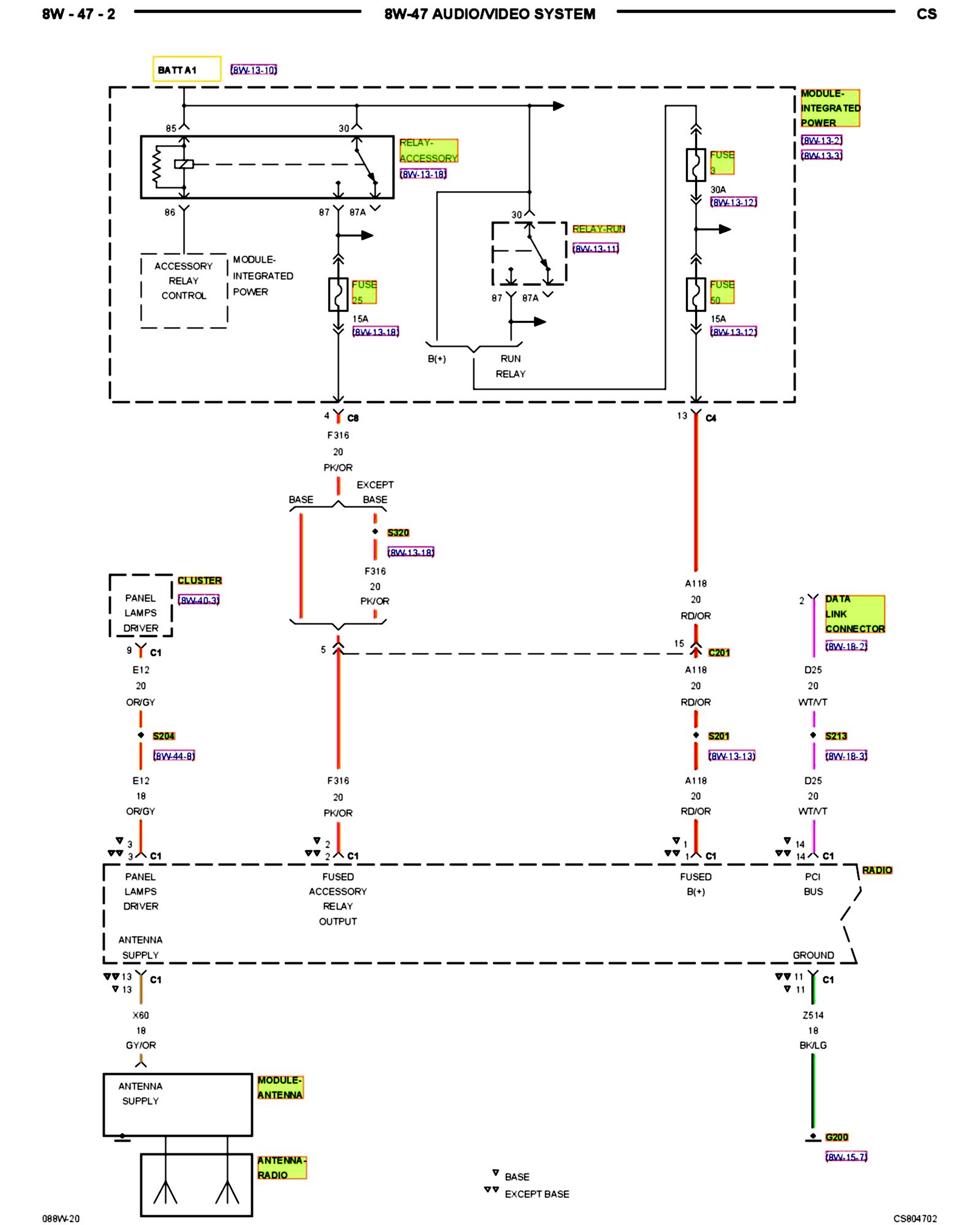

8w-47-02:

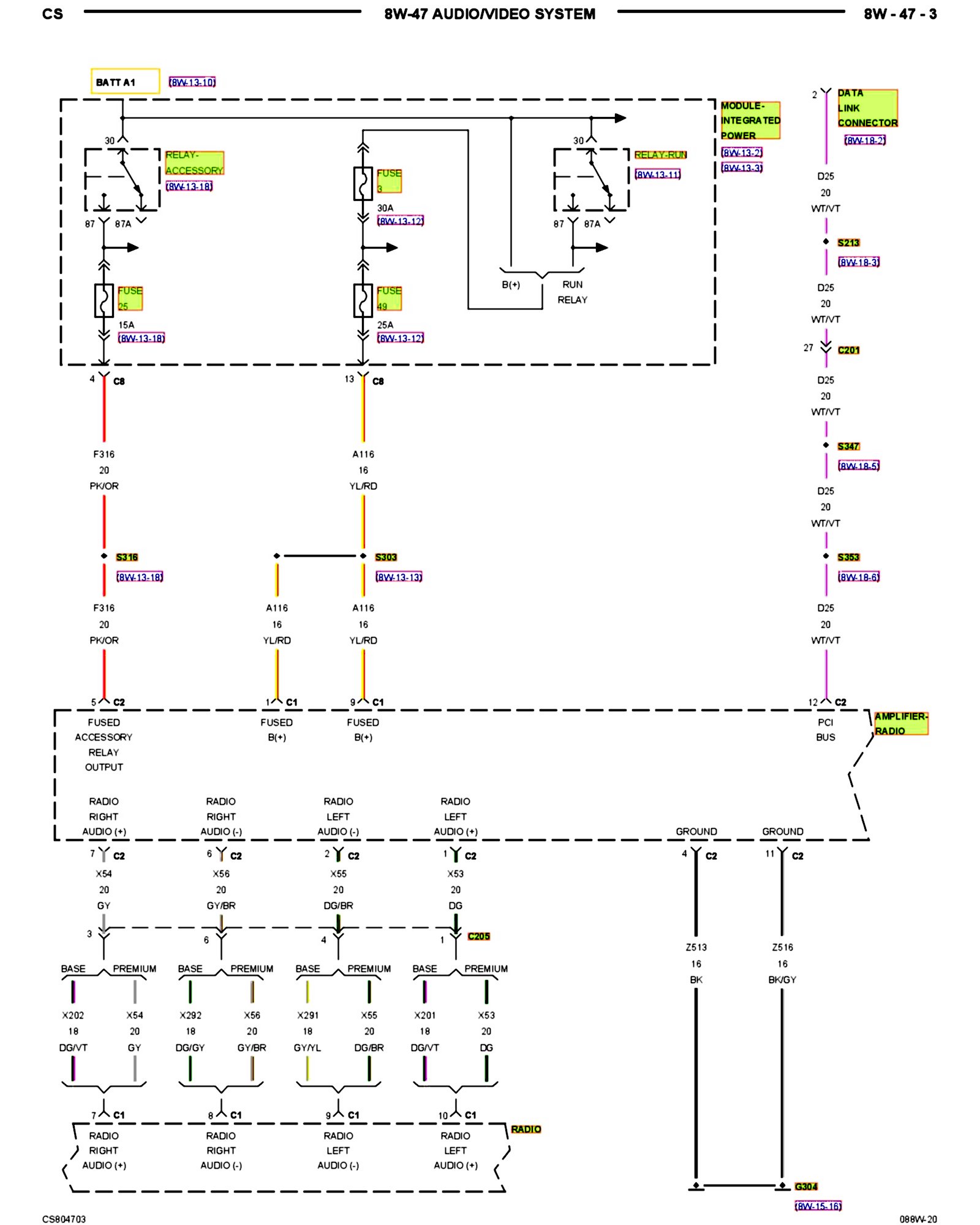

8w-47-03:

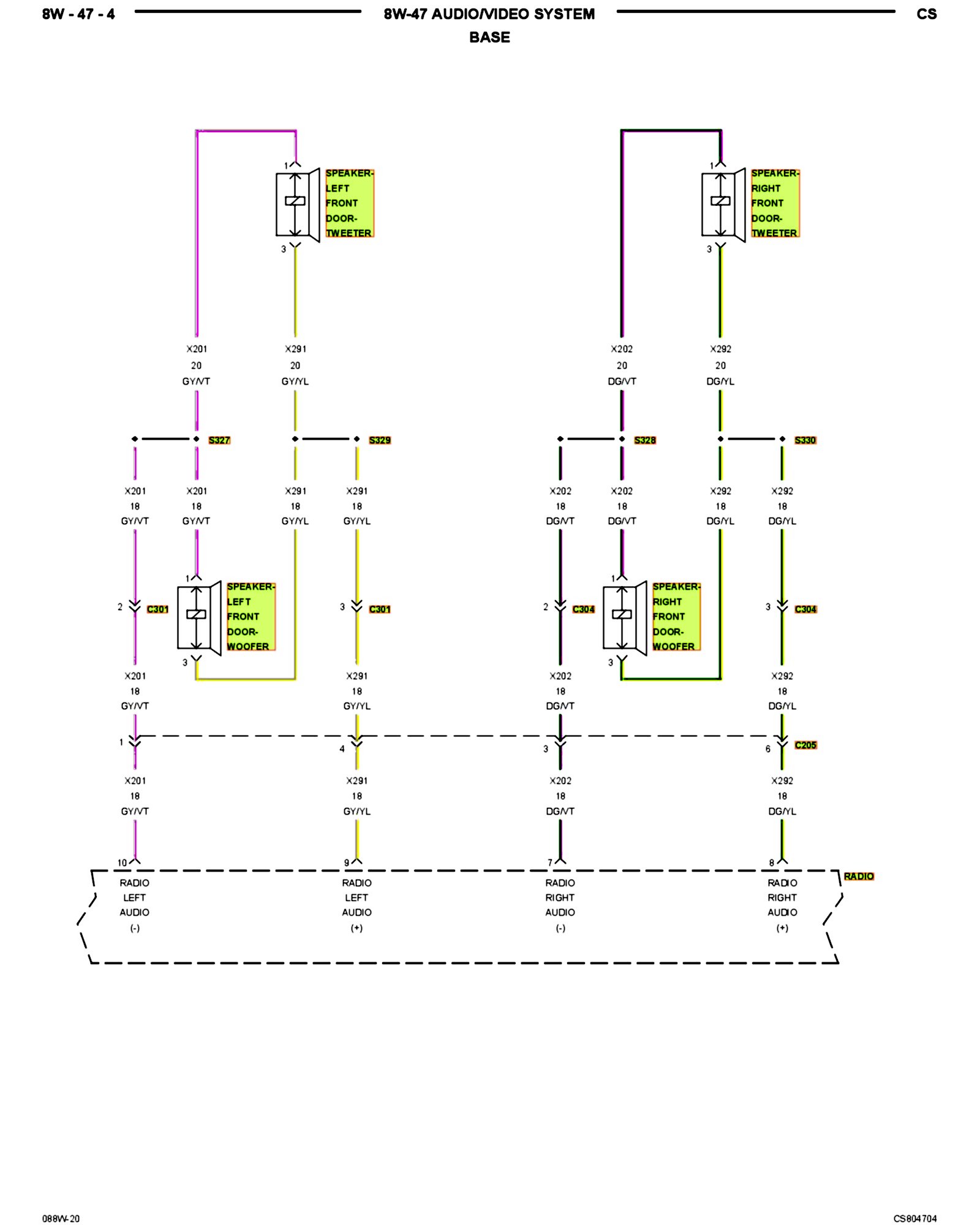

8w-47-04:

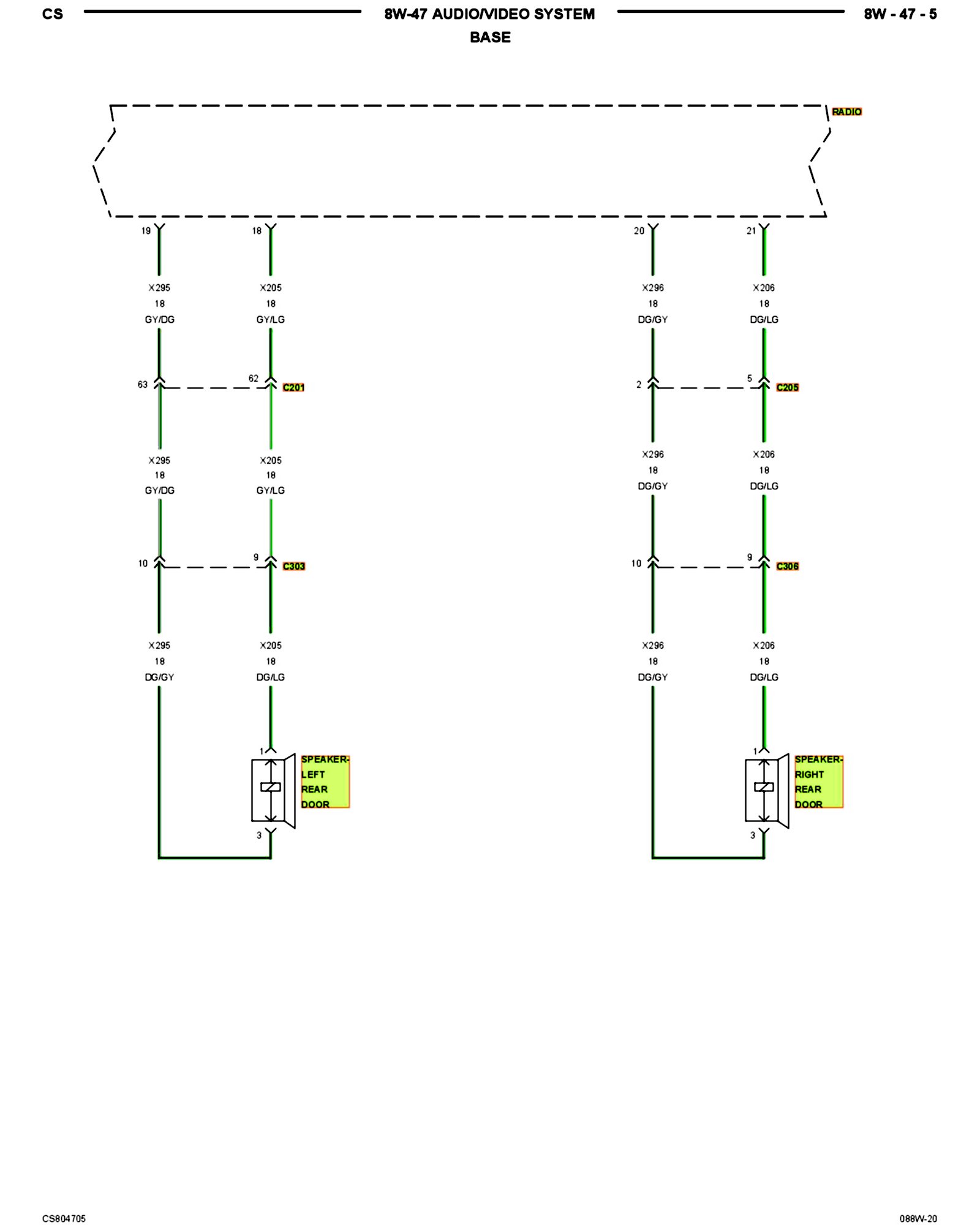

8w-47-05:

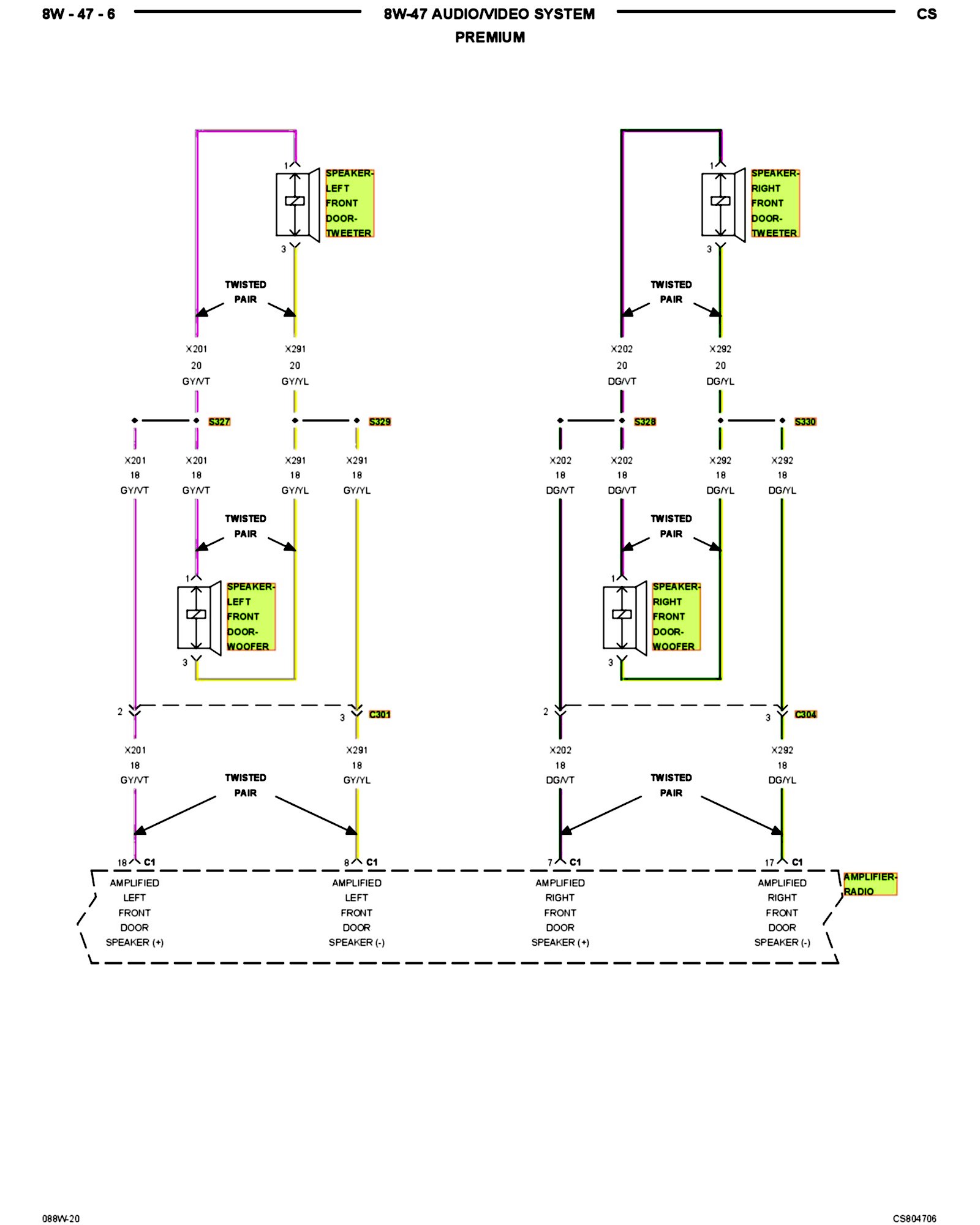

8w-47-06:

8w-47-07:

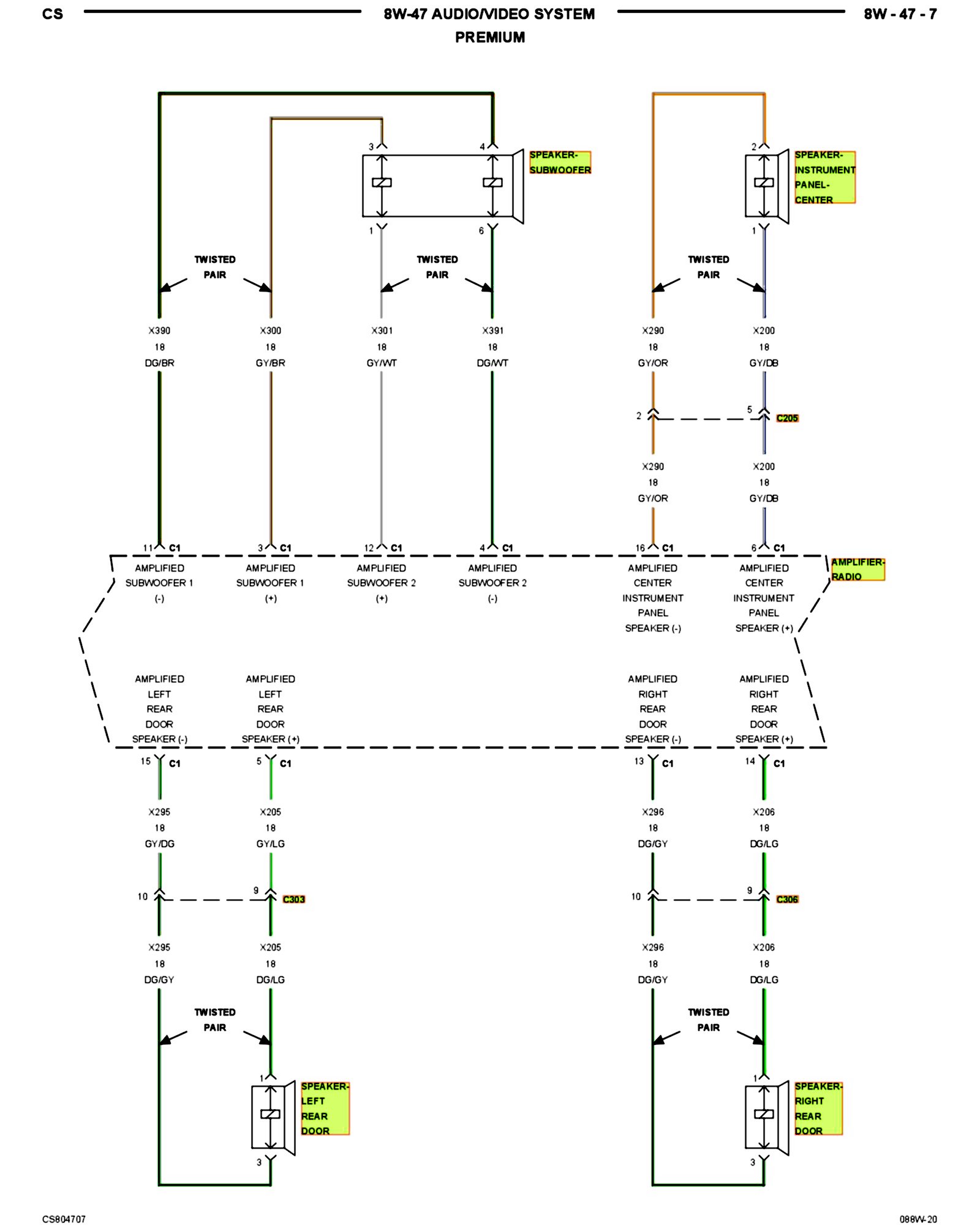

8w-47-08:

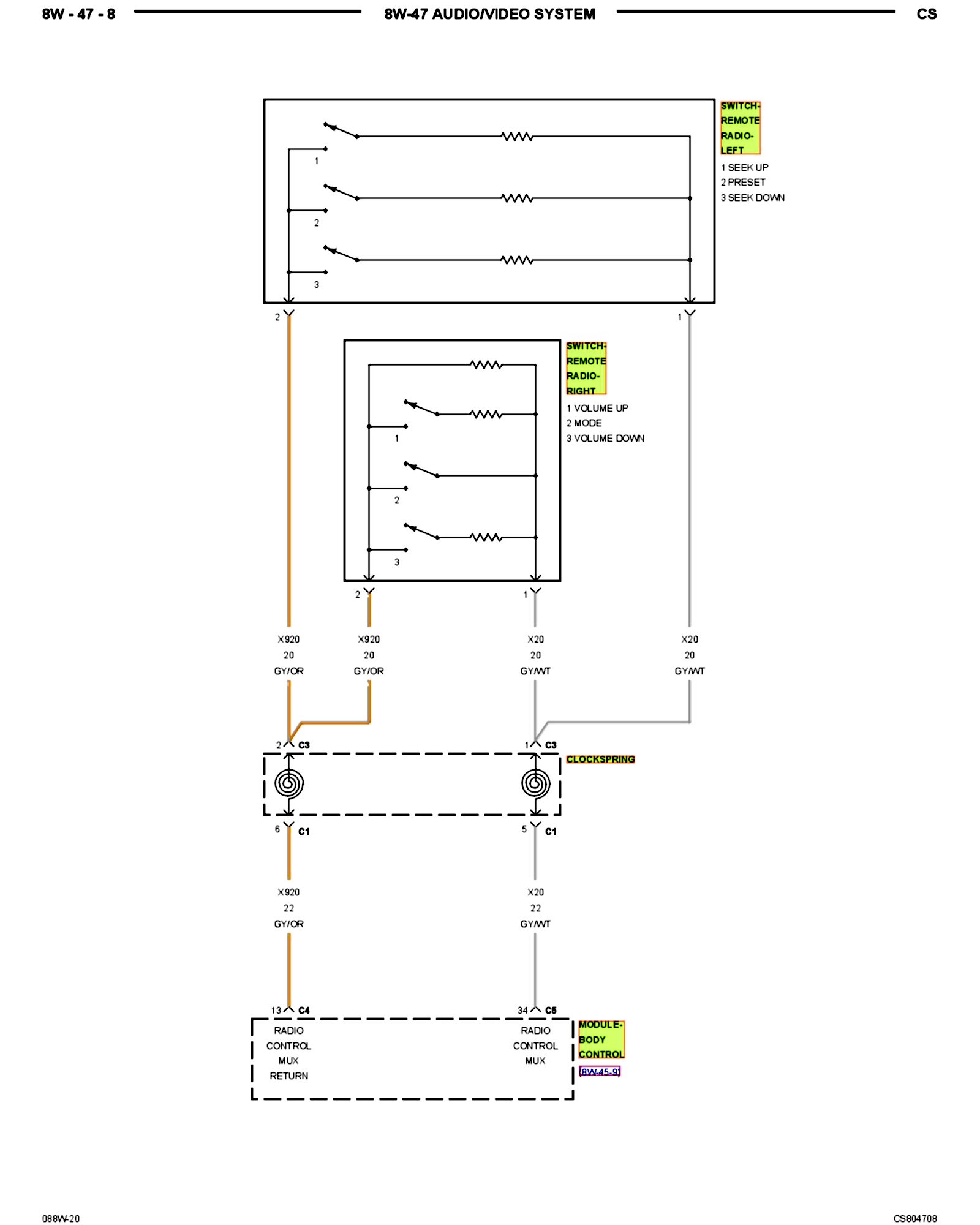

8w-47-09:

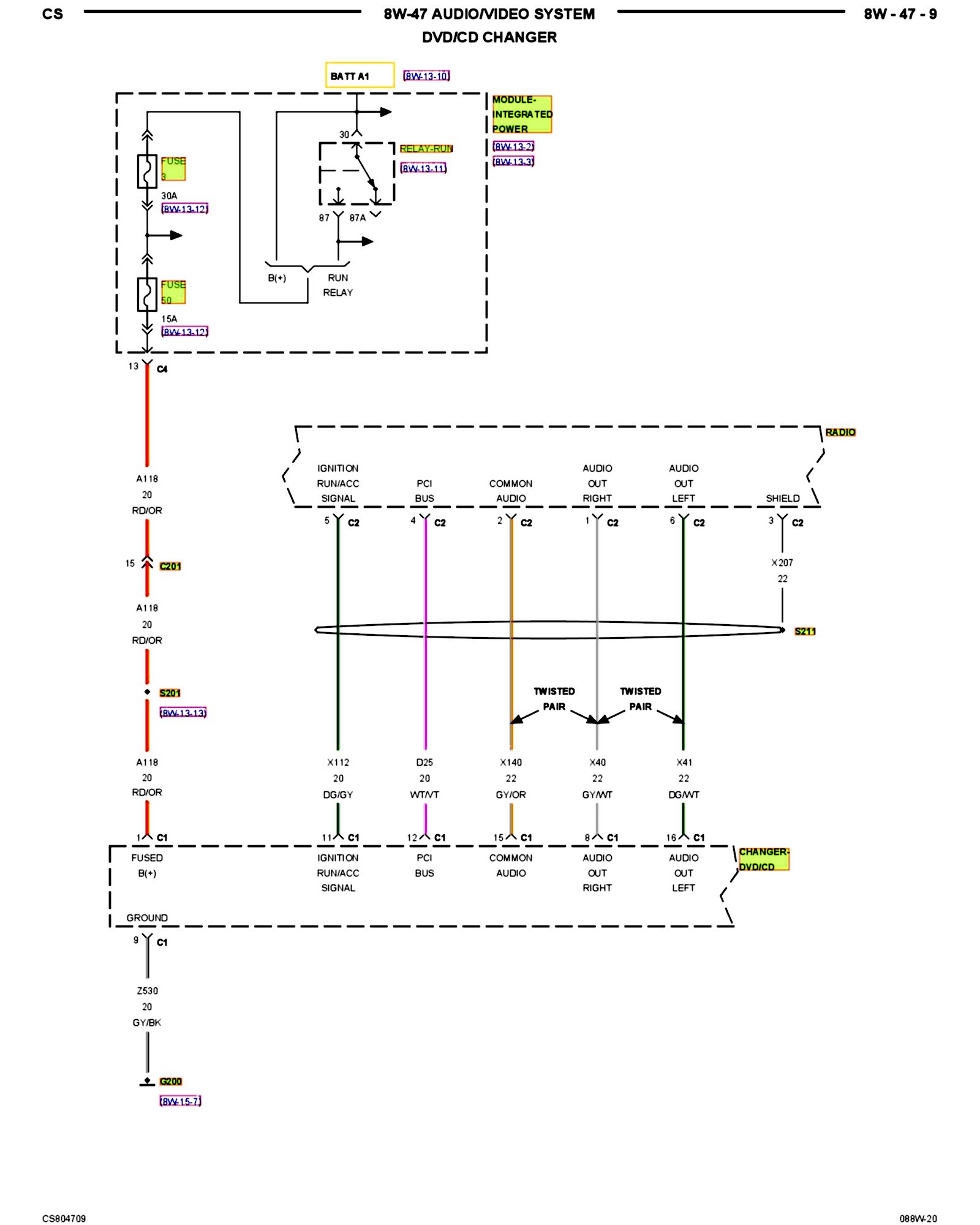

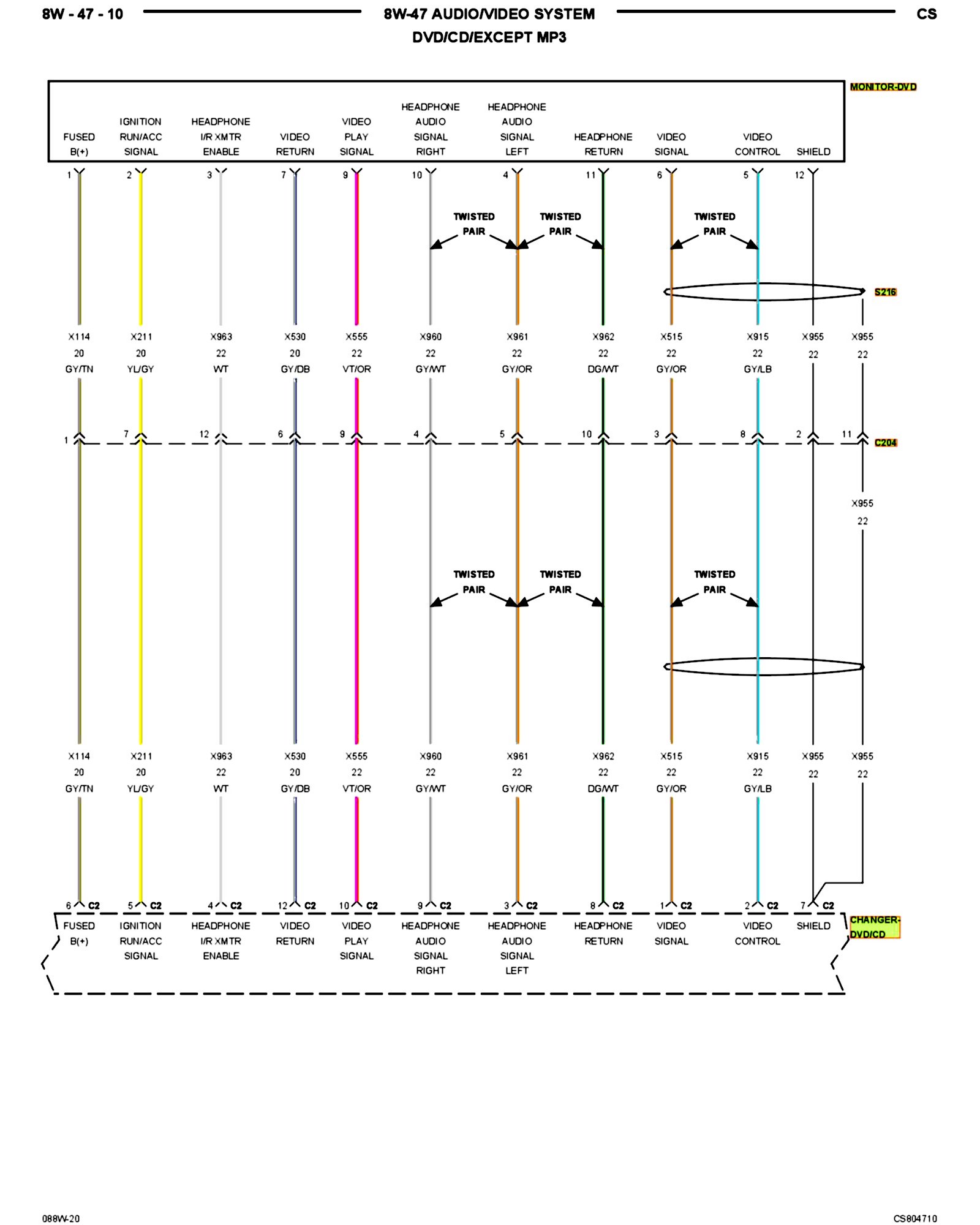

8w-47-10:

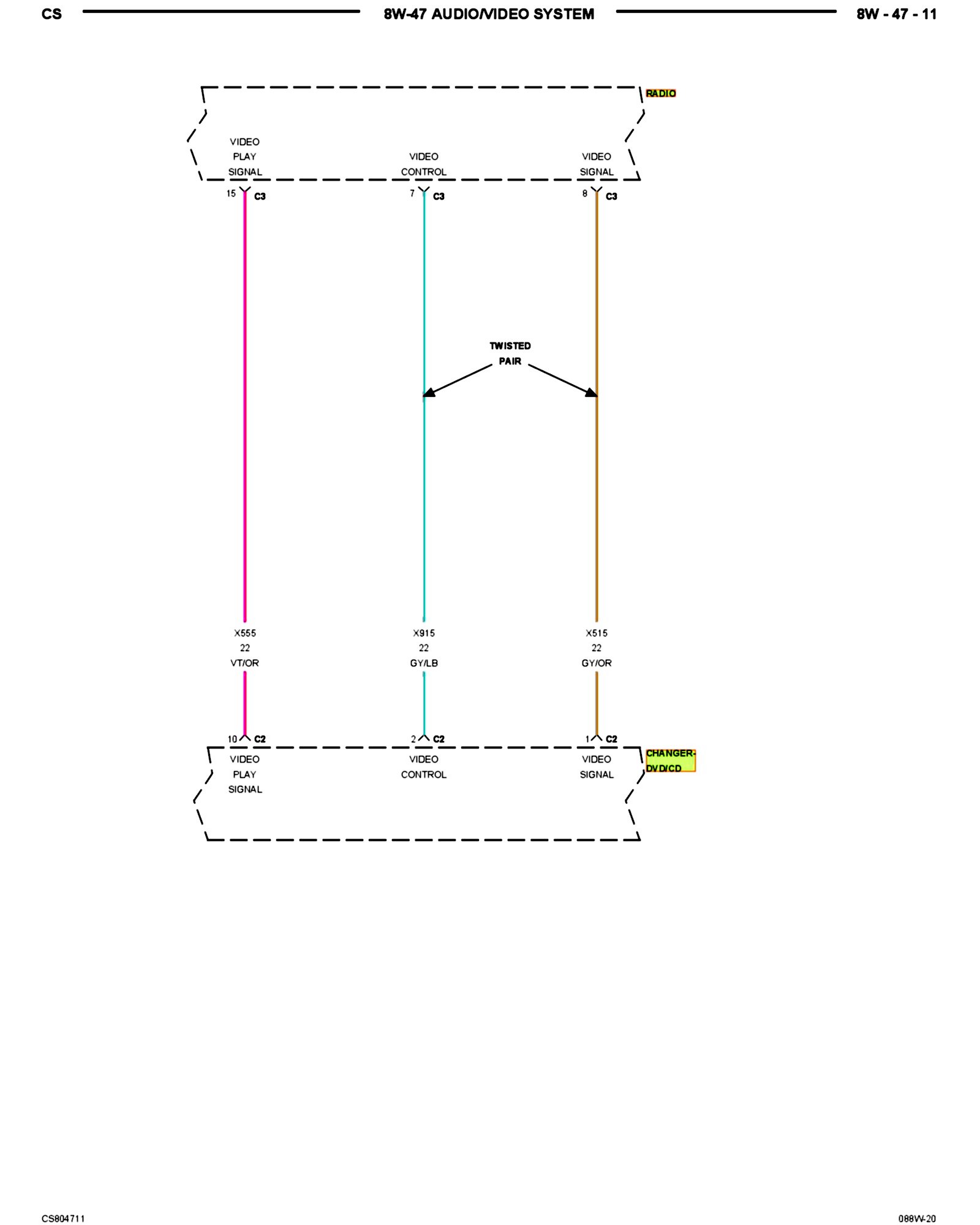

8w-47-11:

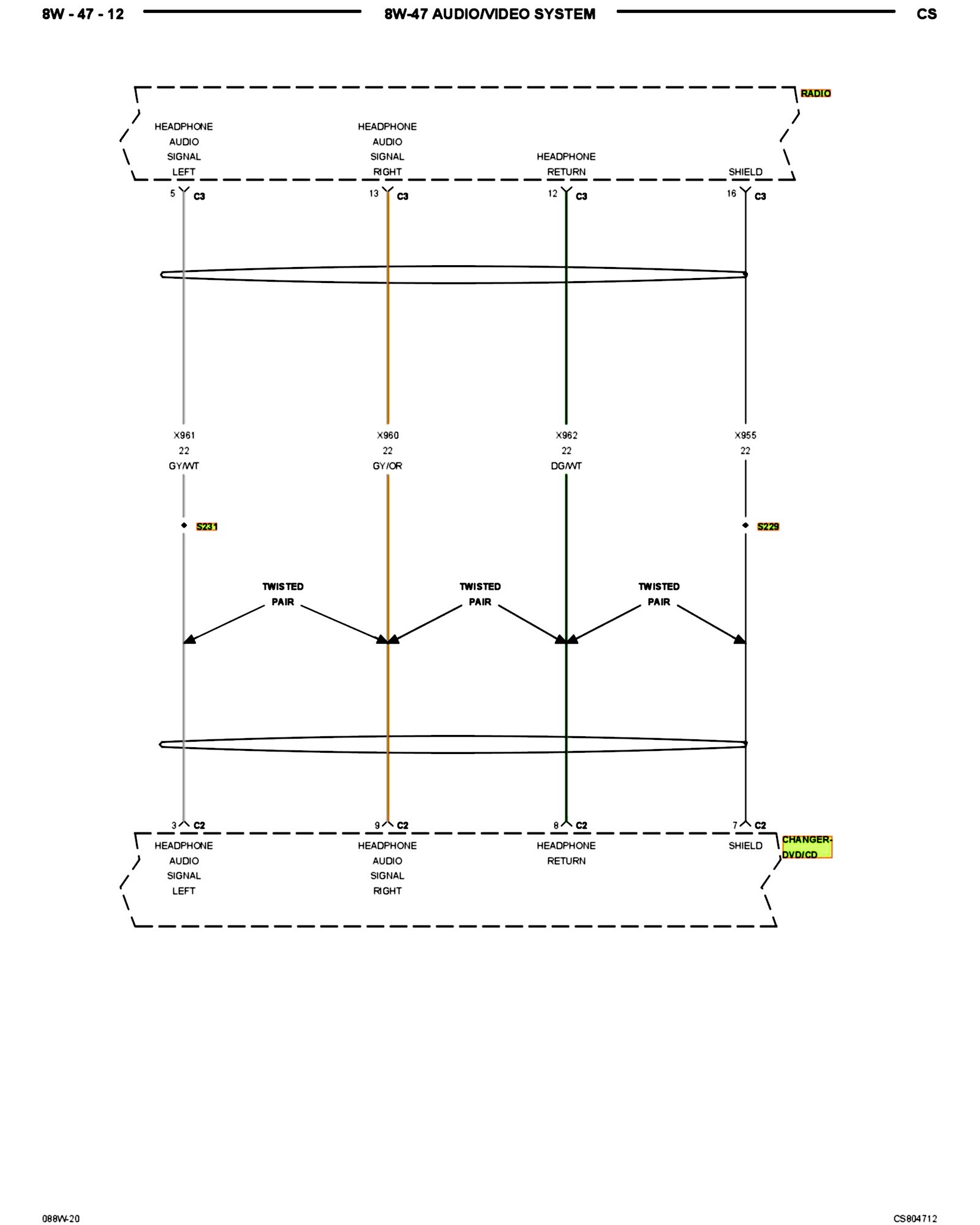

8w-47-12:

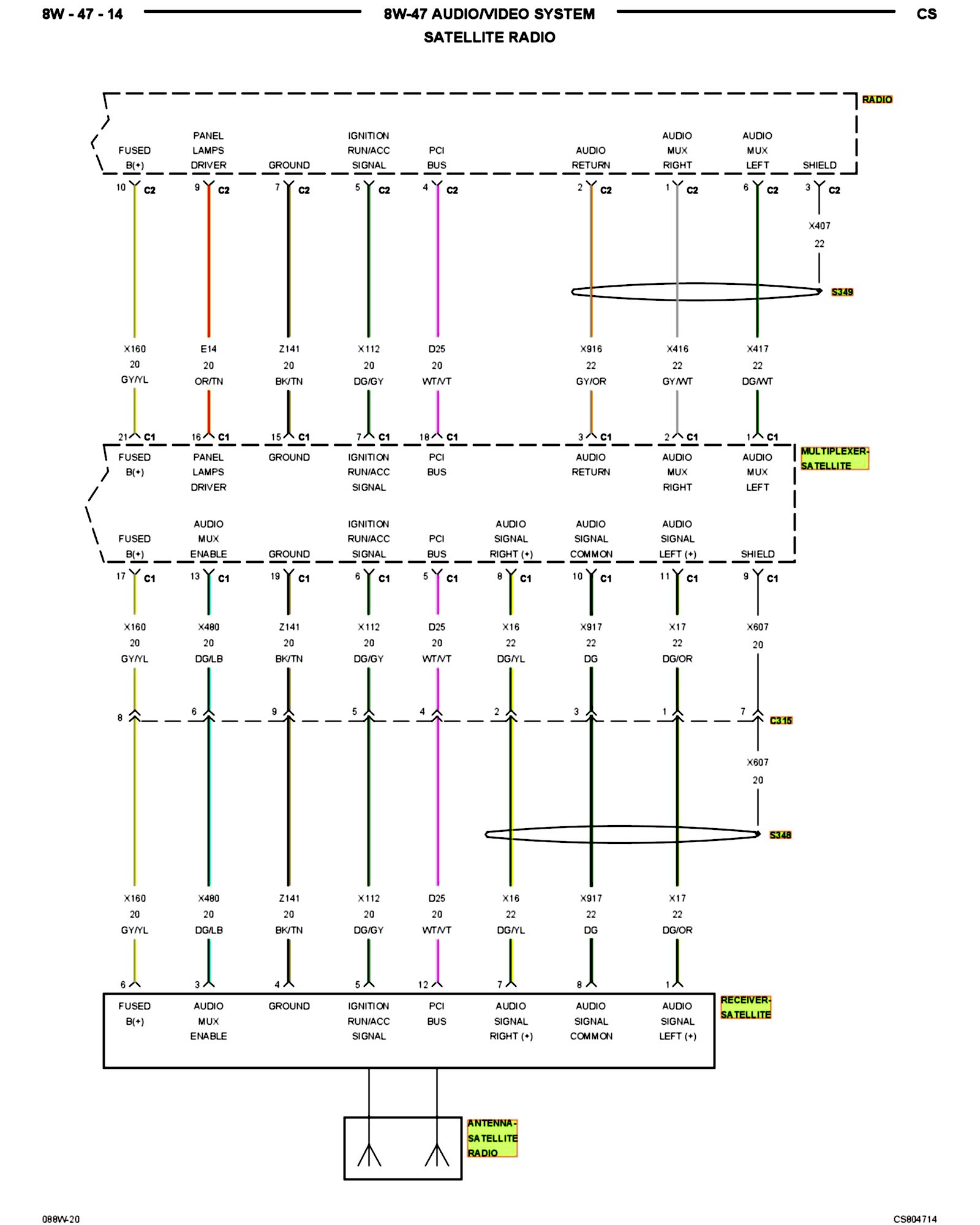

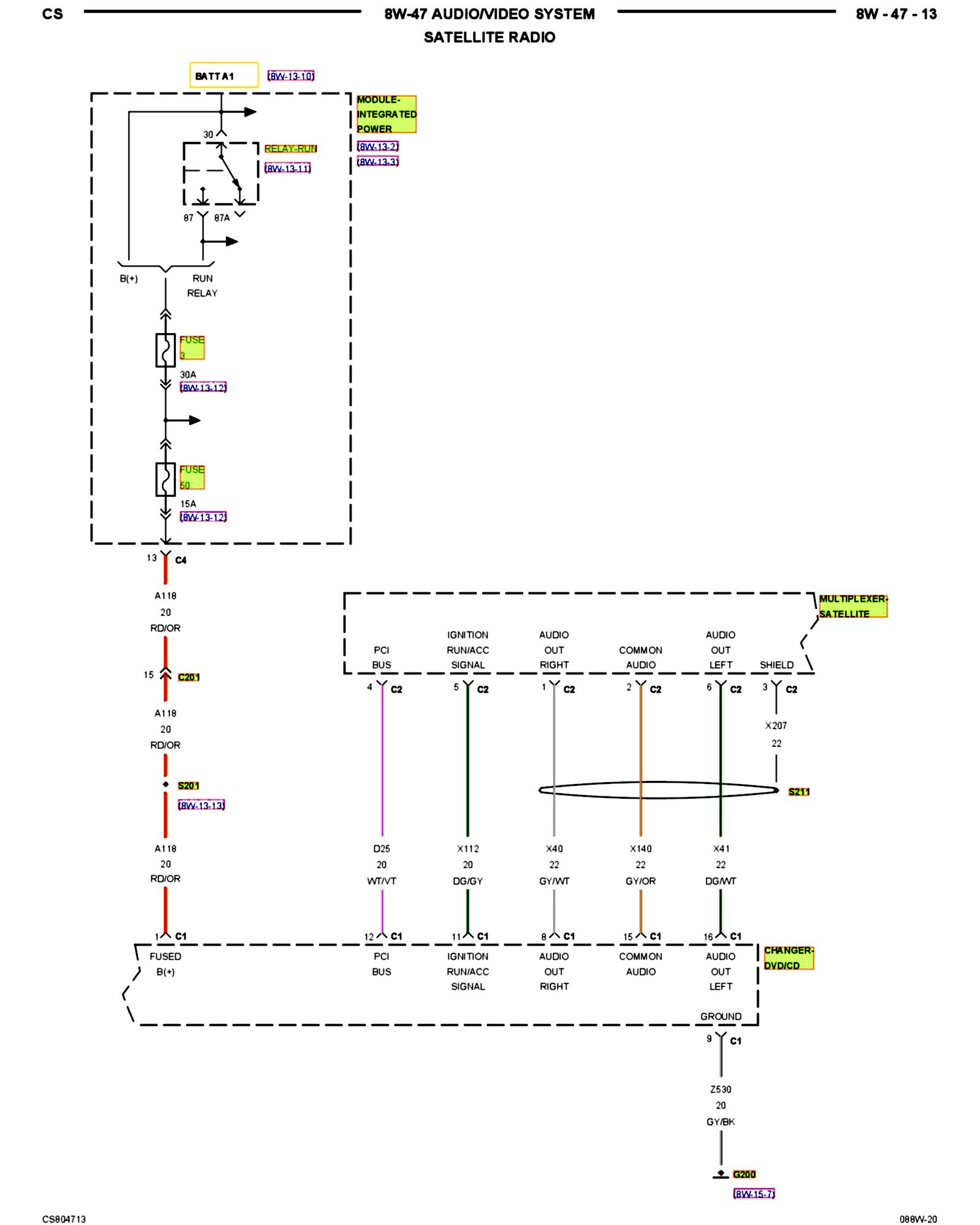

8w-47-13:

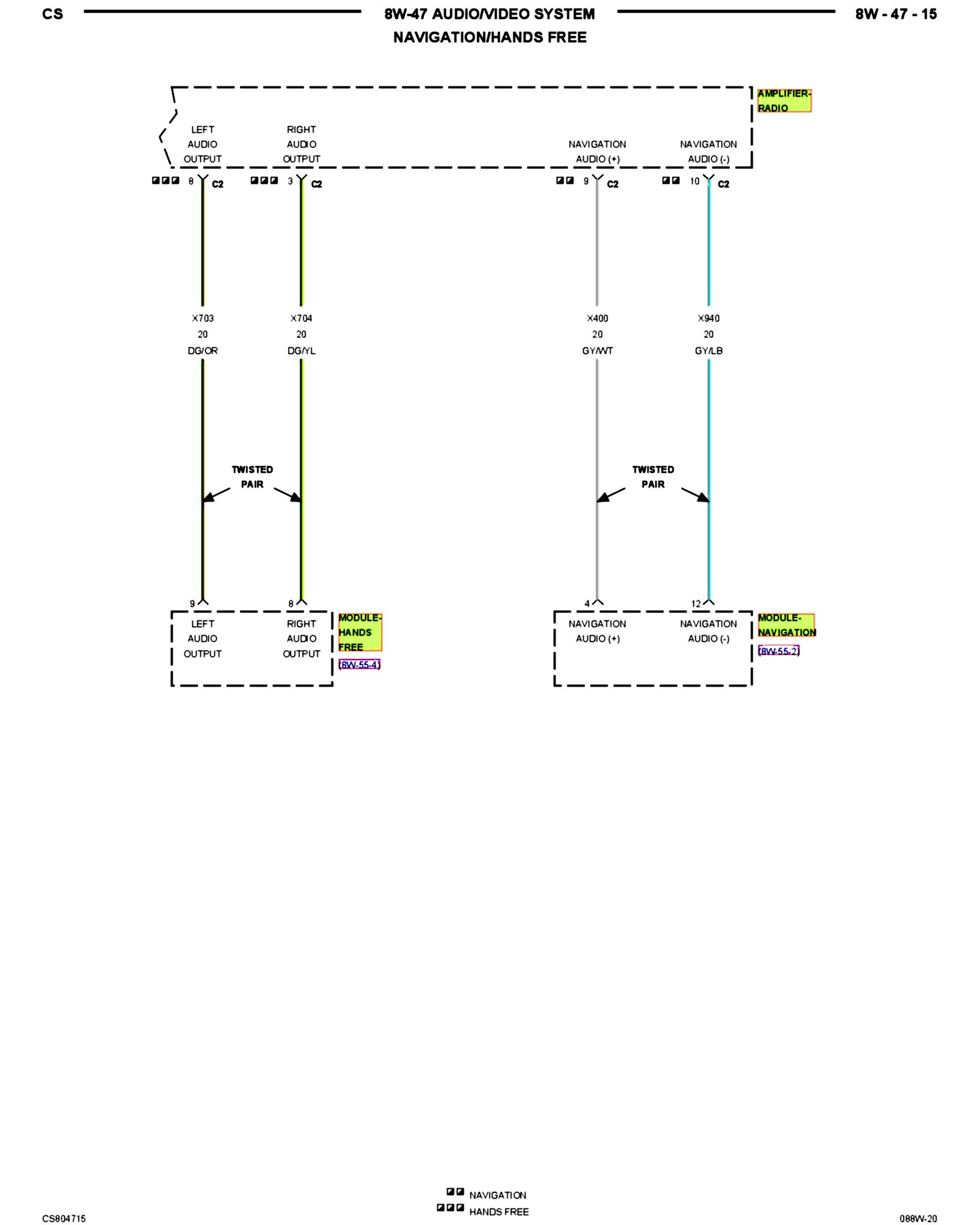

8w-47-14:

8w-47-15:

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
