Group 8W-63 (Power Seats)

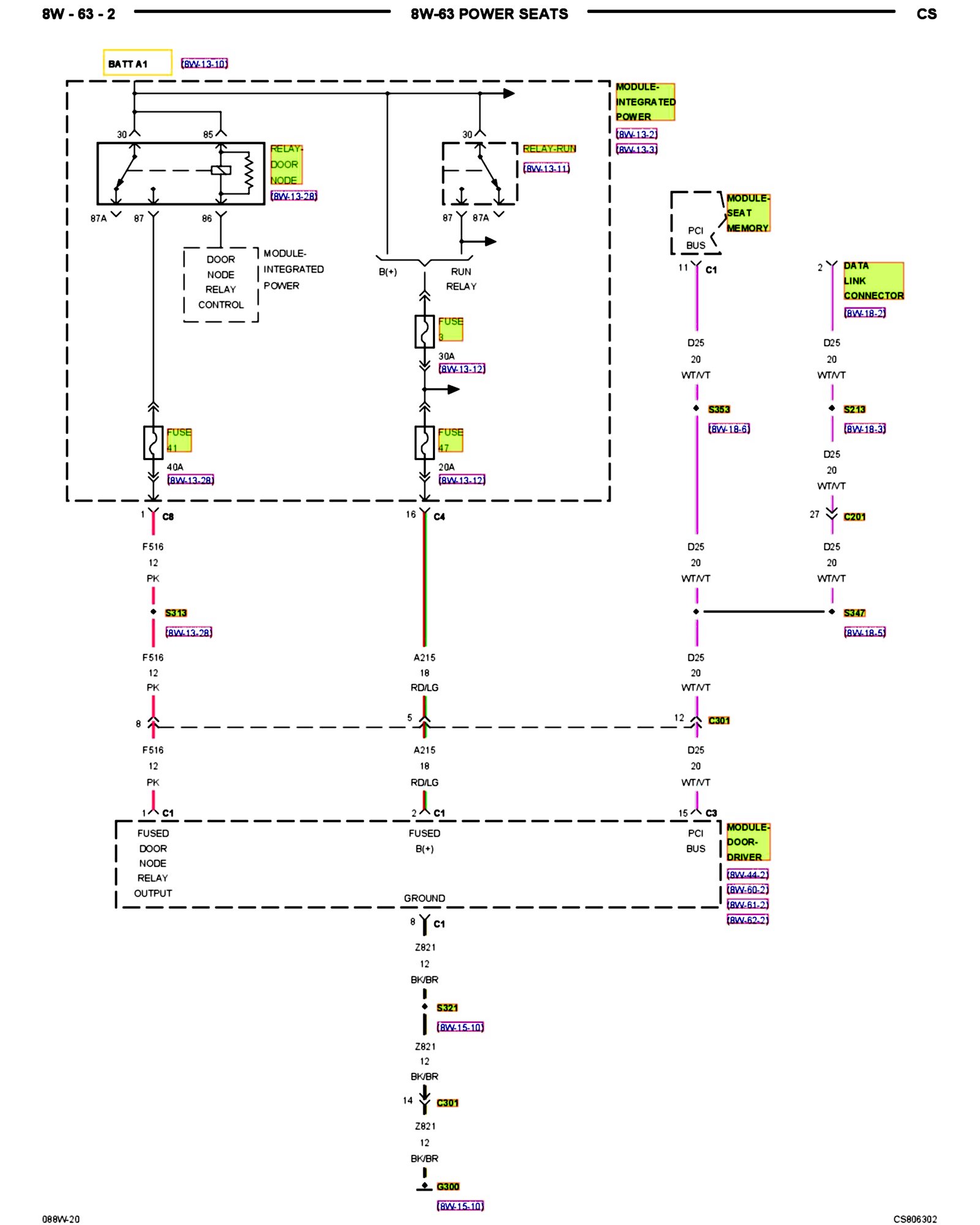

8w-63-02:

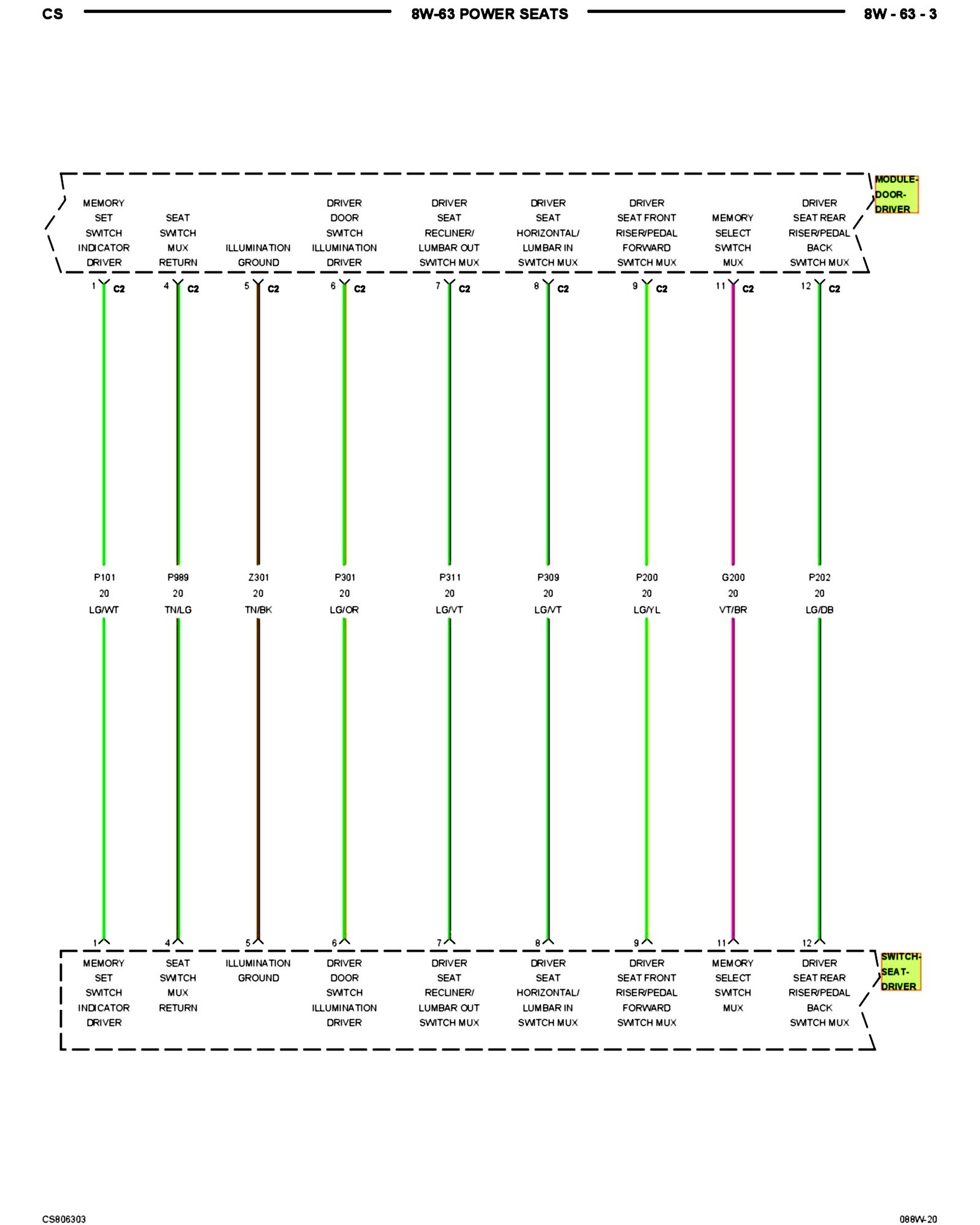

8w-63-03:

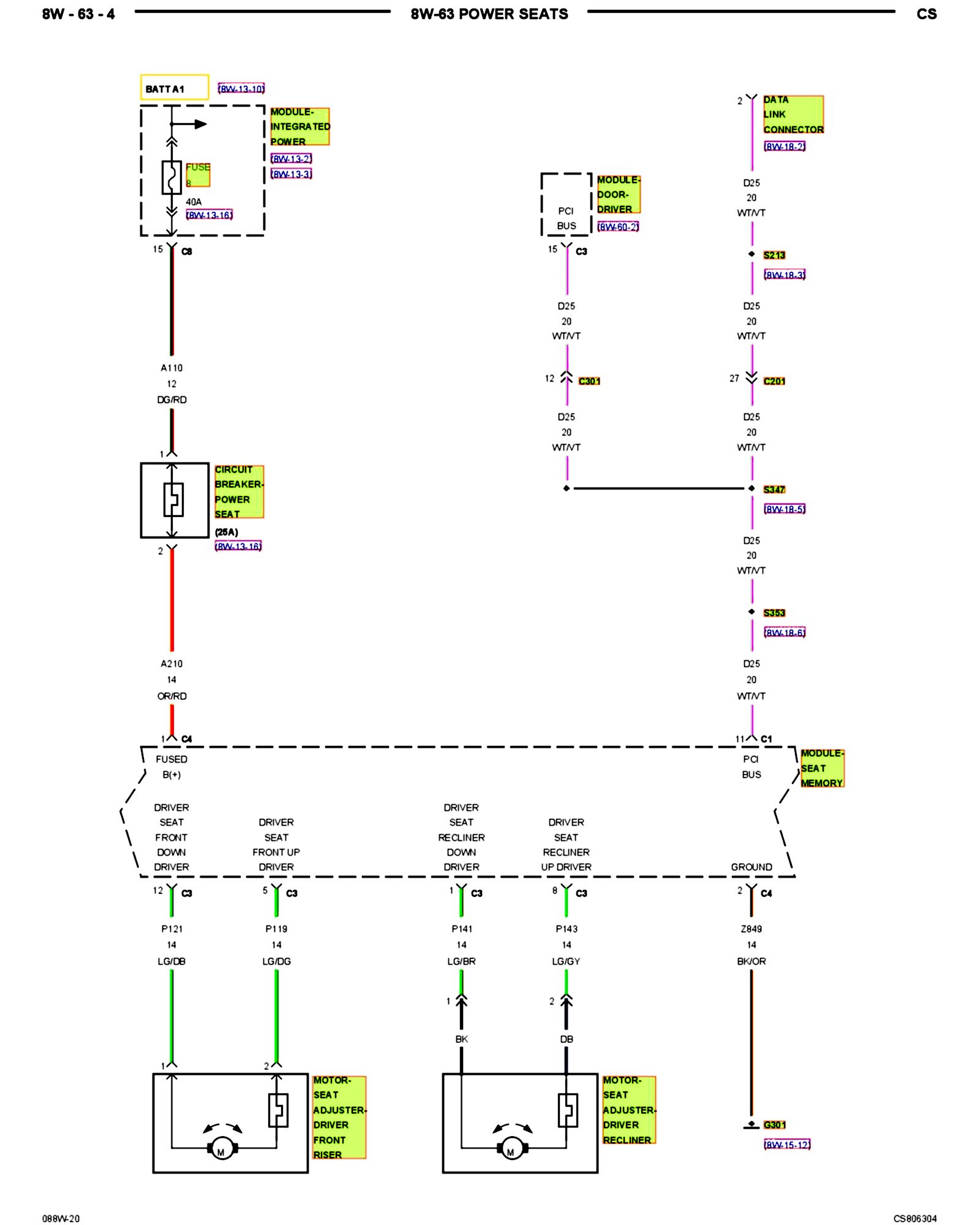

8w-63-04:

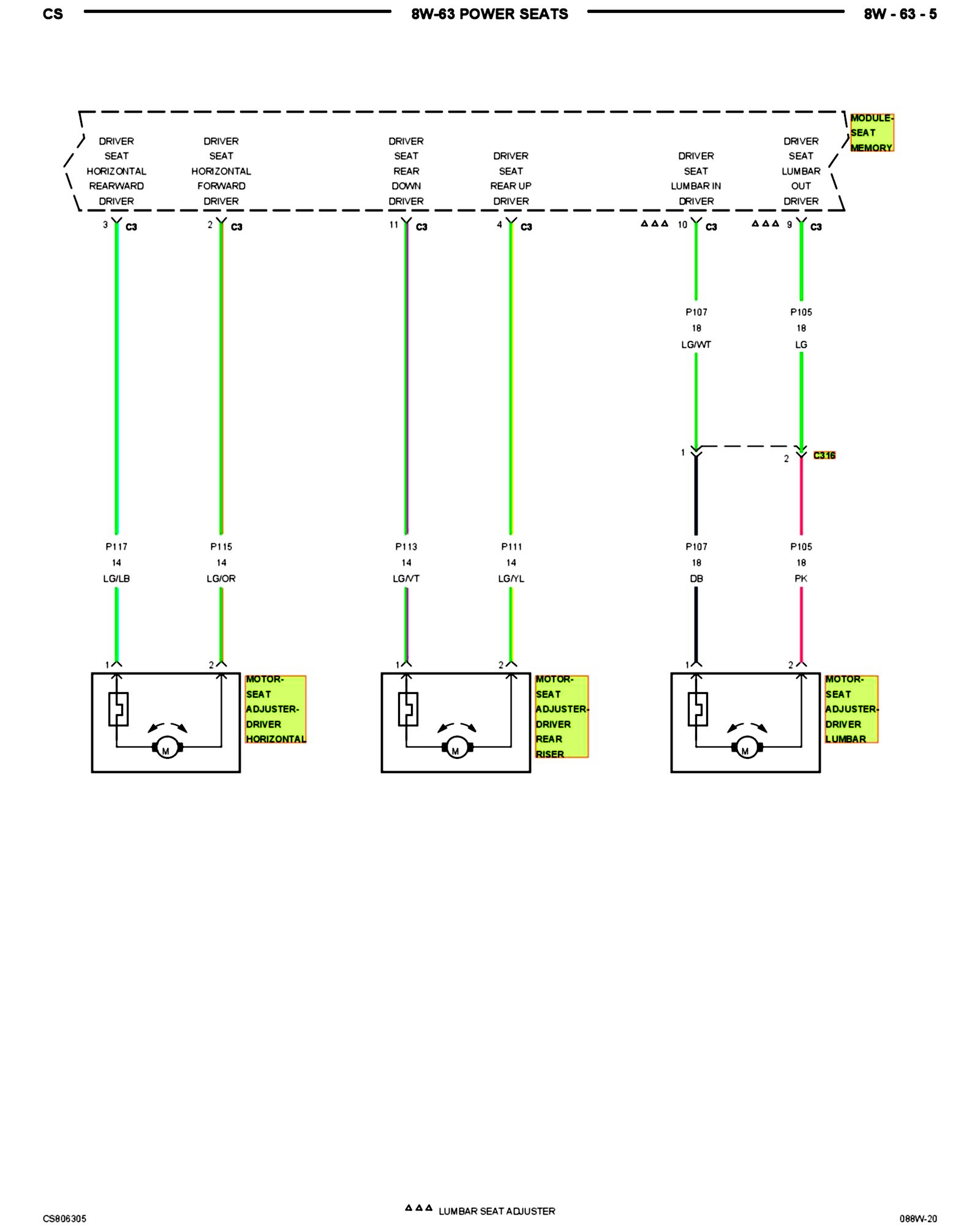

8w-63-05:

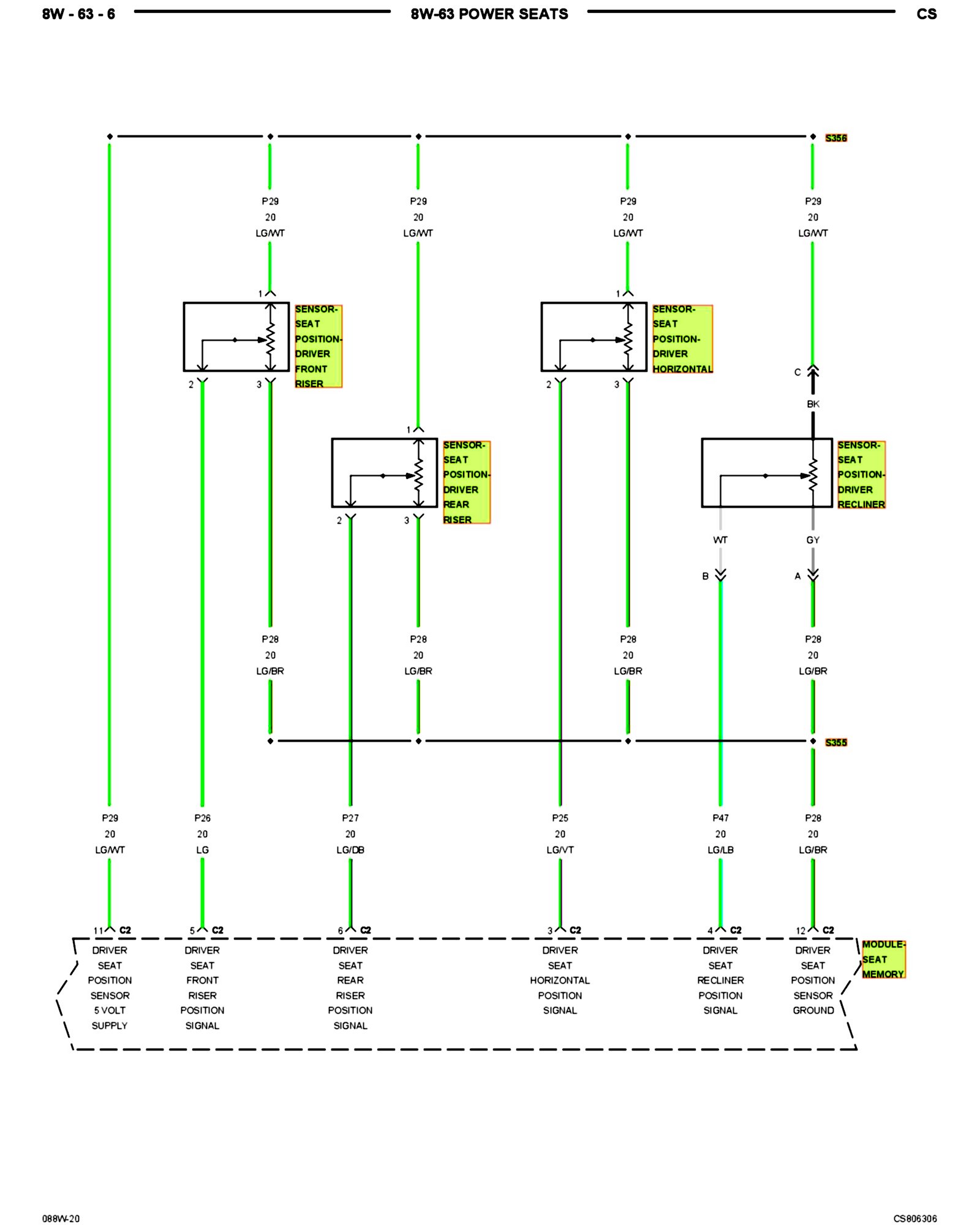

8w-63-06:

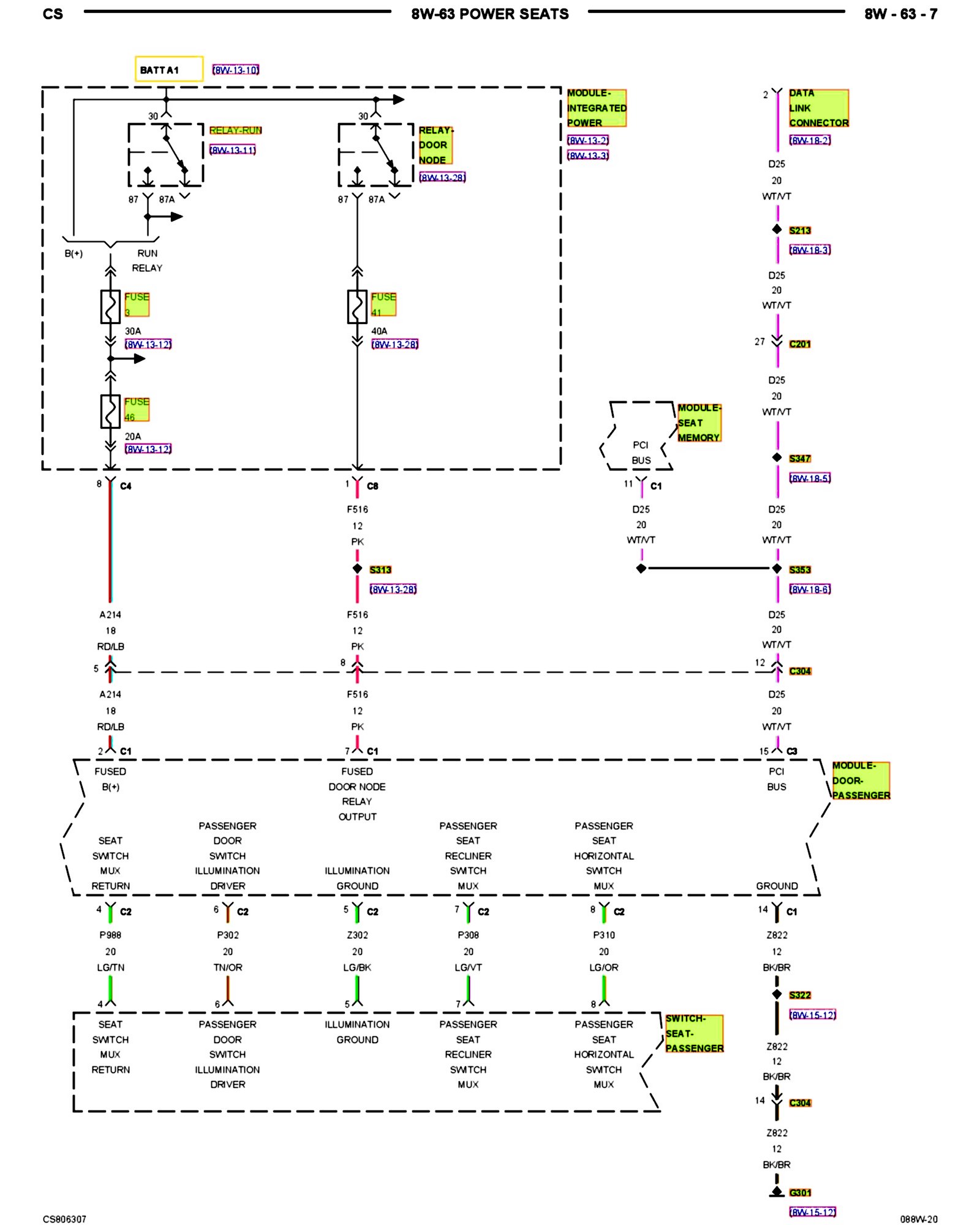

8w-63-07:

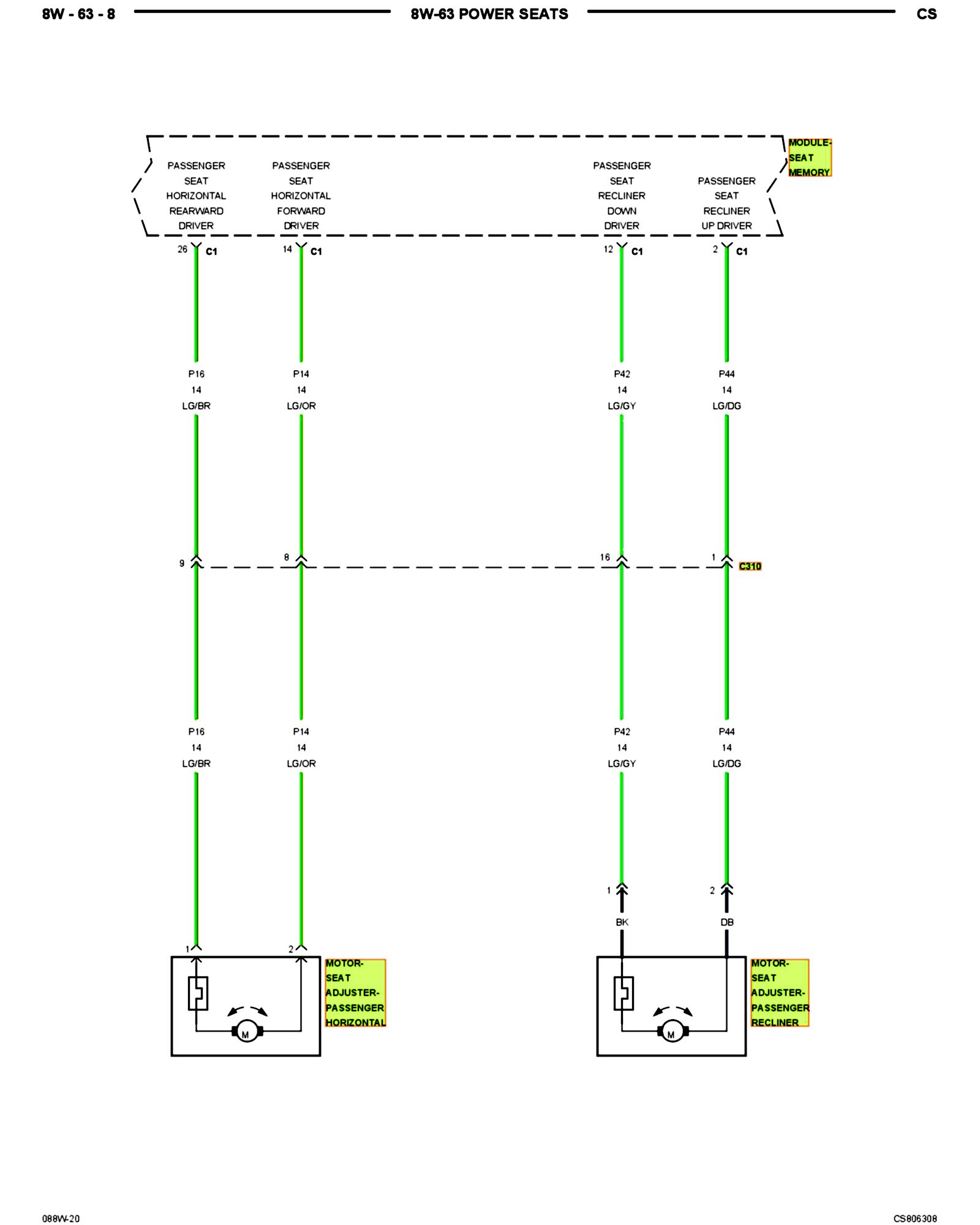

8w-63-08:

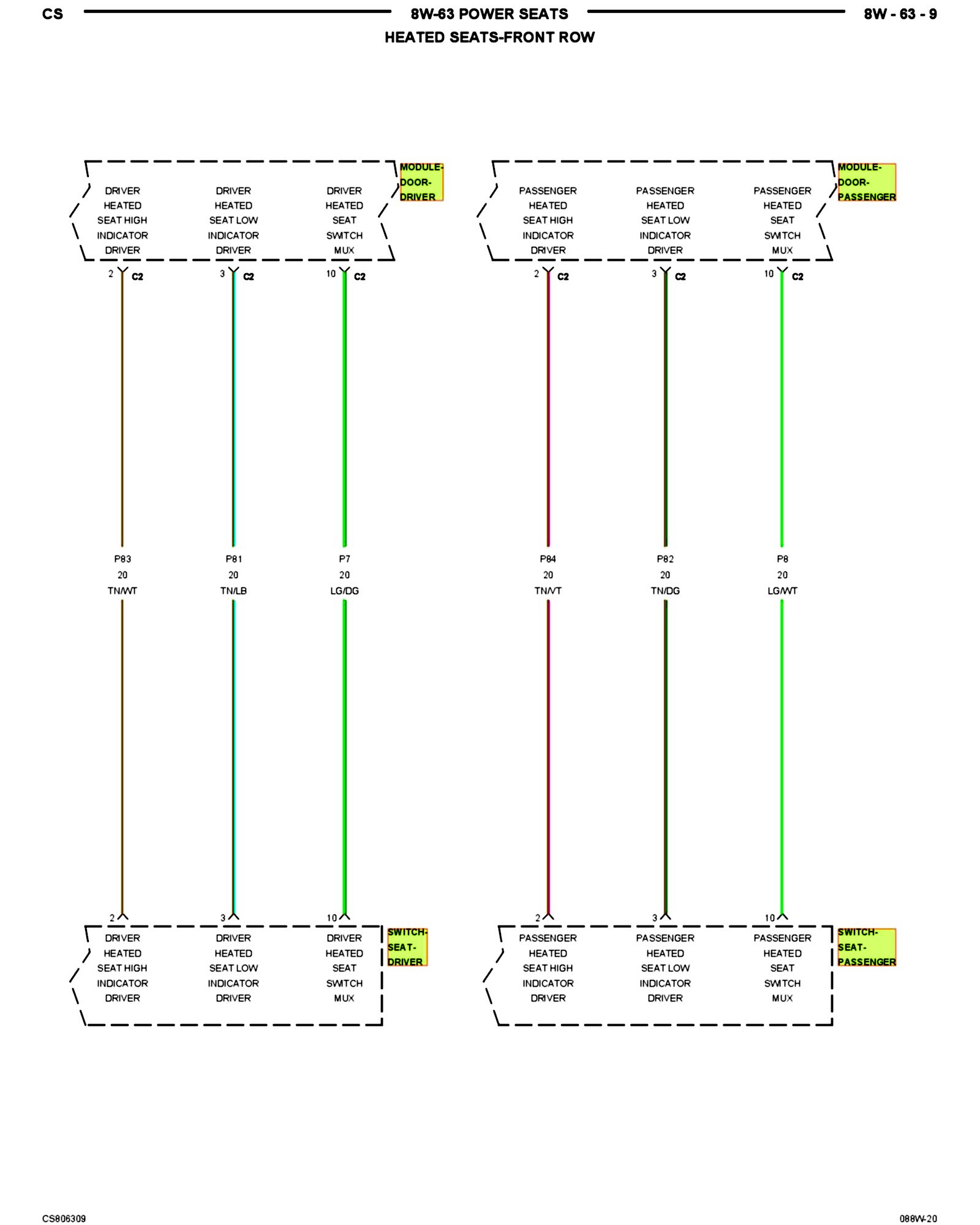

8w-63-09:

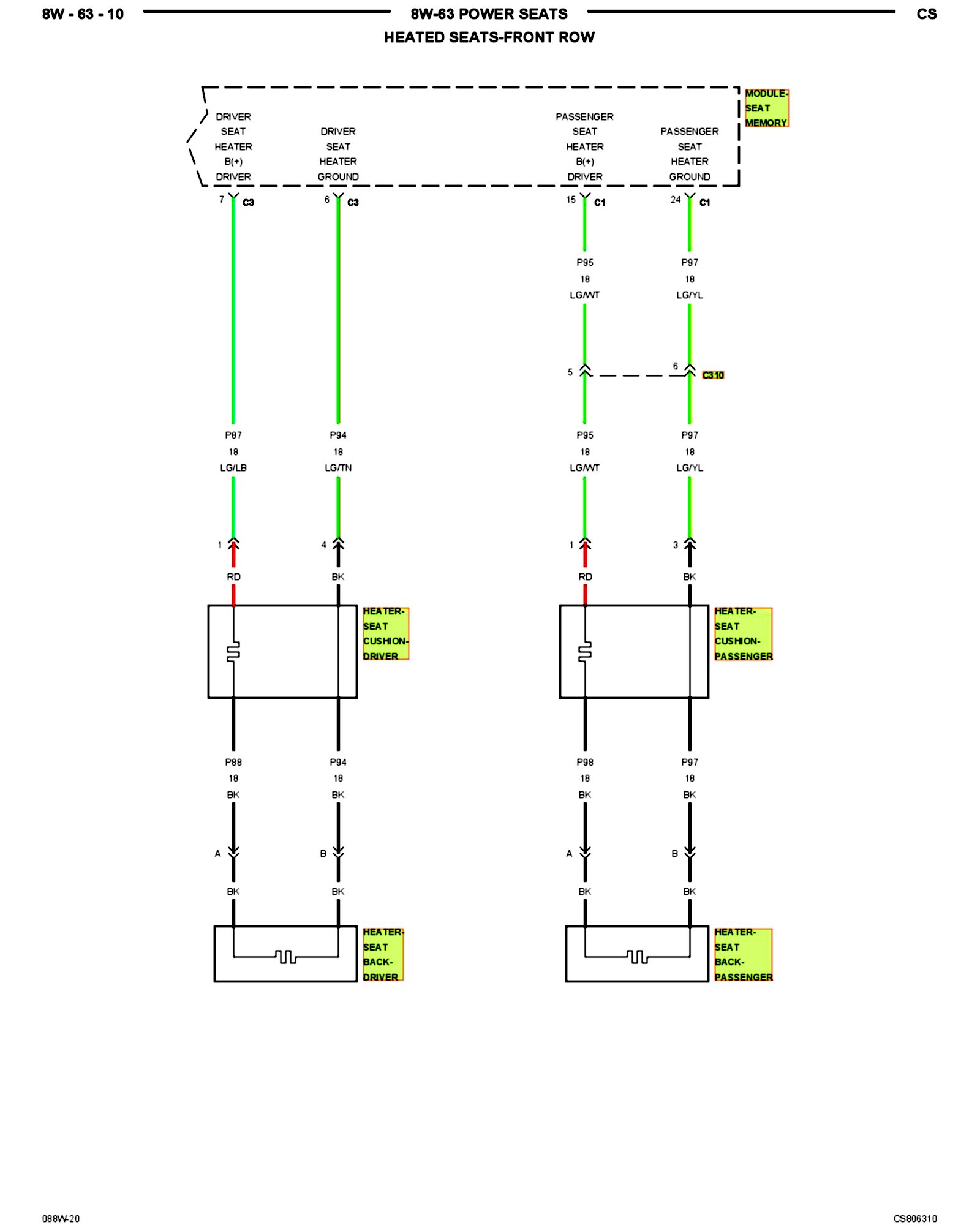

8w-63-10:

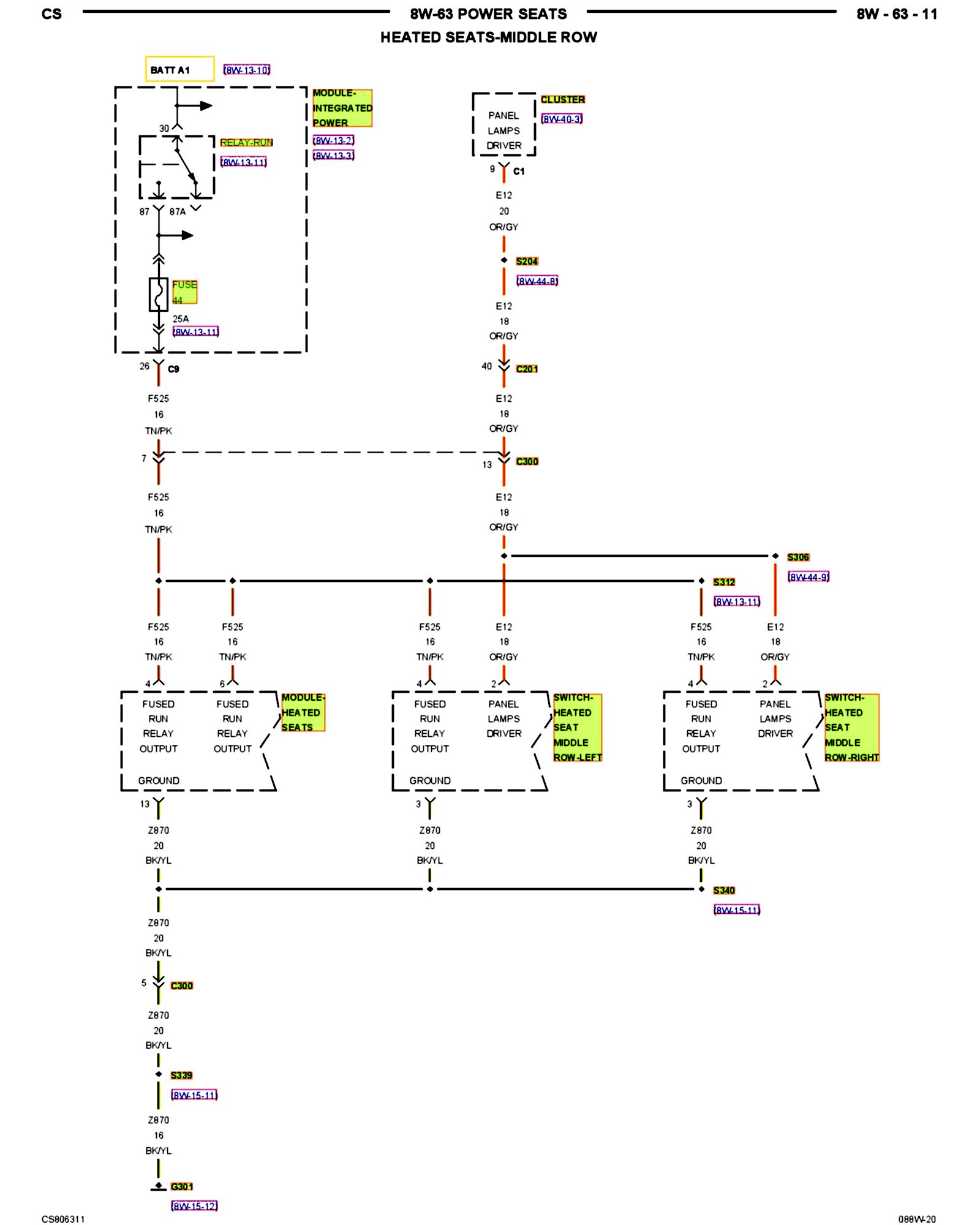

8w-63-11:

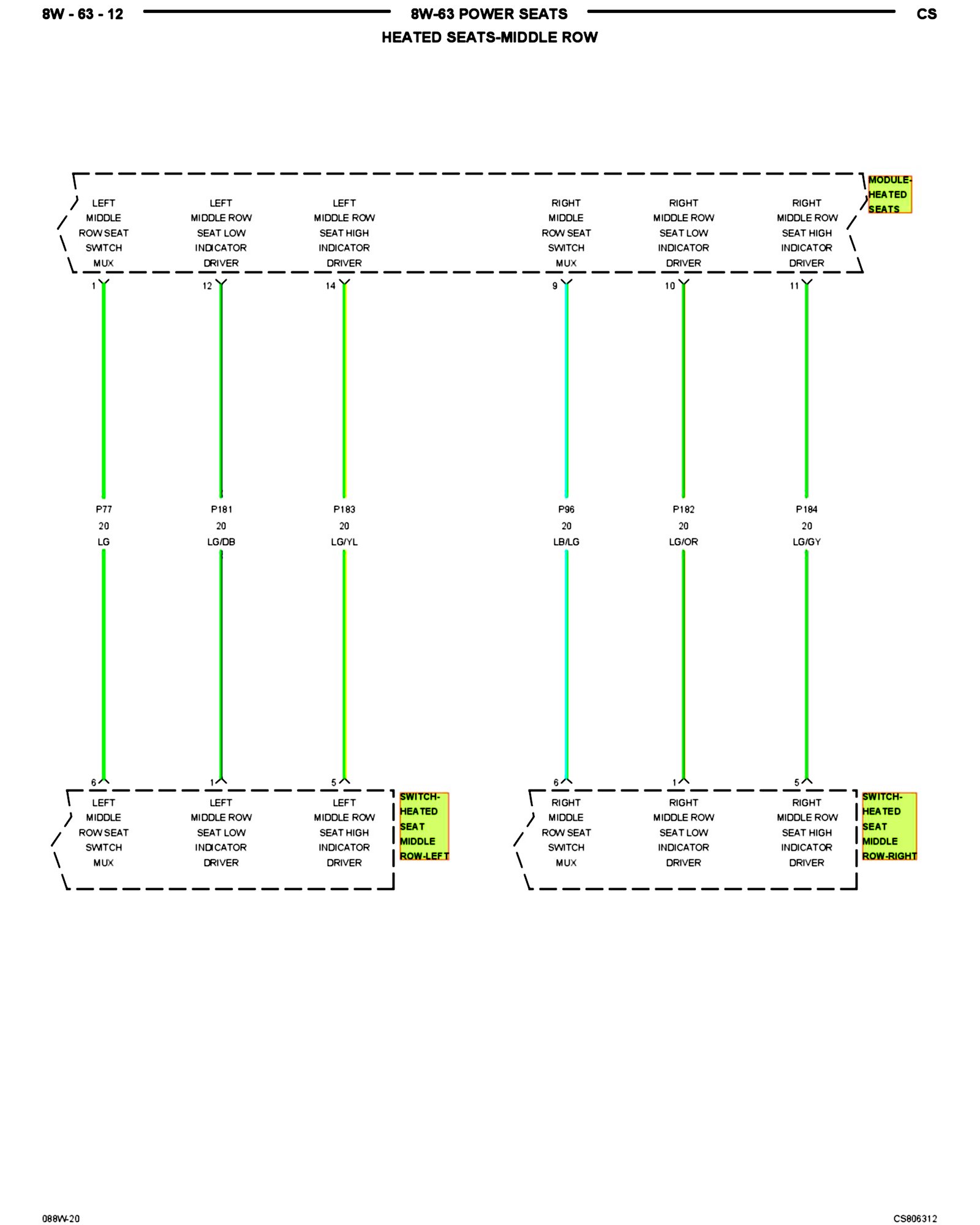

8w-63-12:

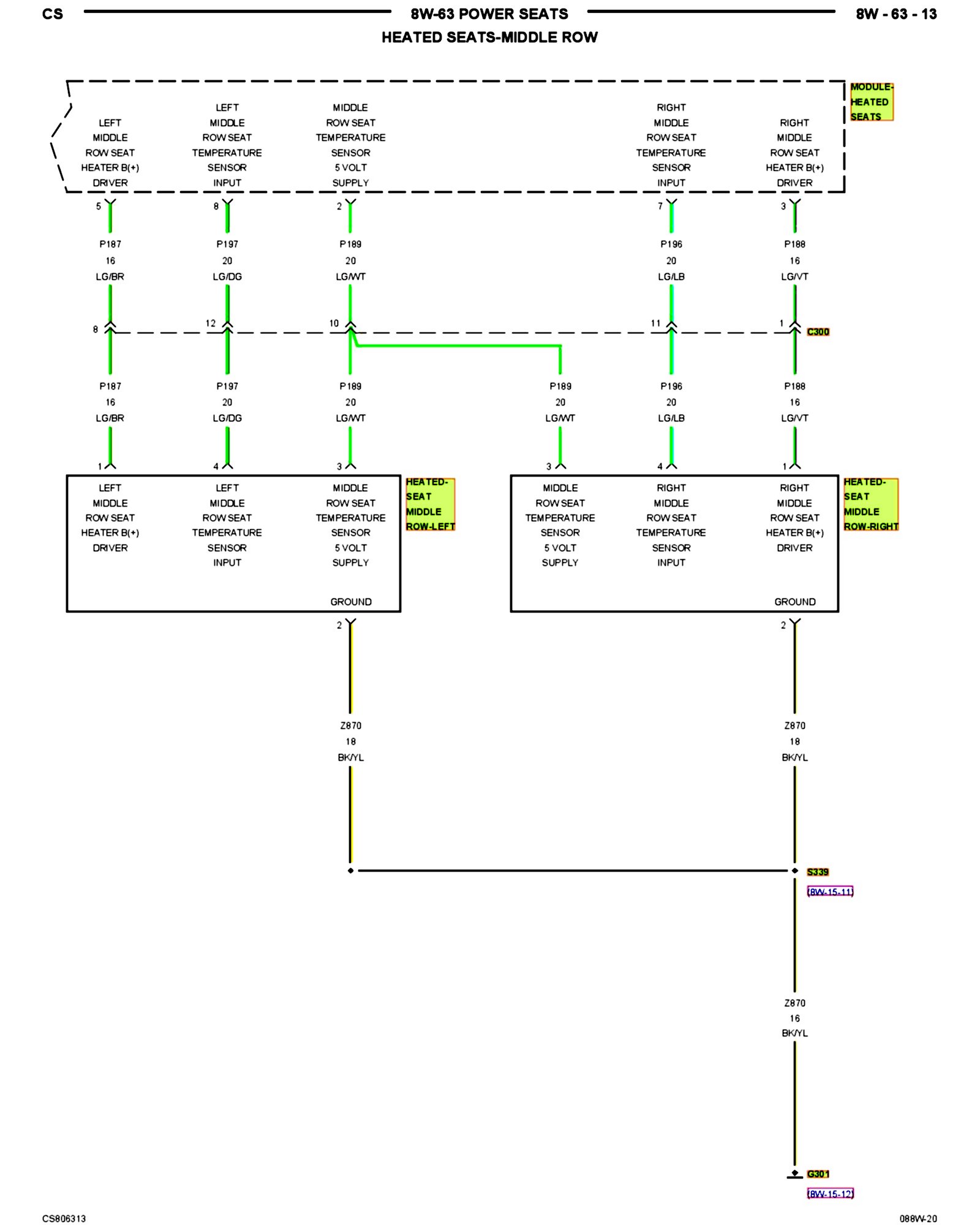

8w-63-13:
