Group 8W-44 (Interior Lighting)

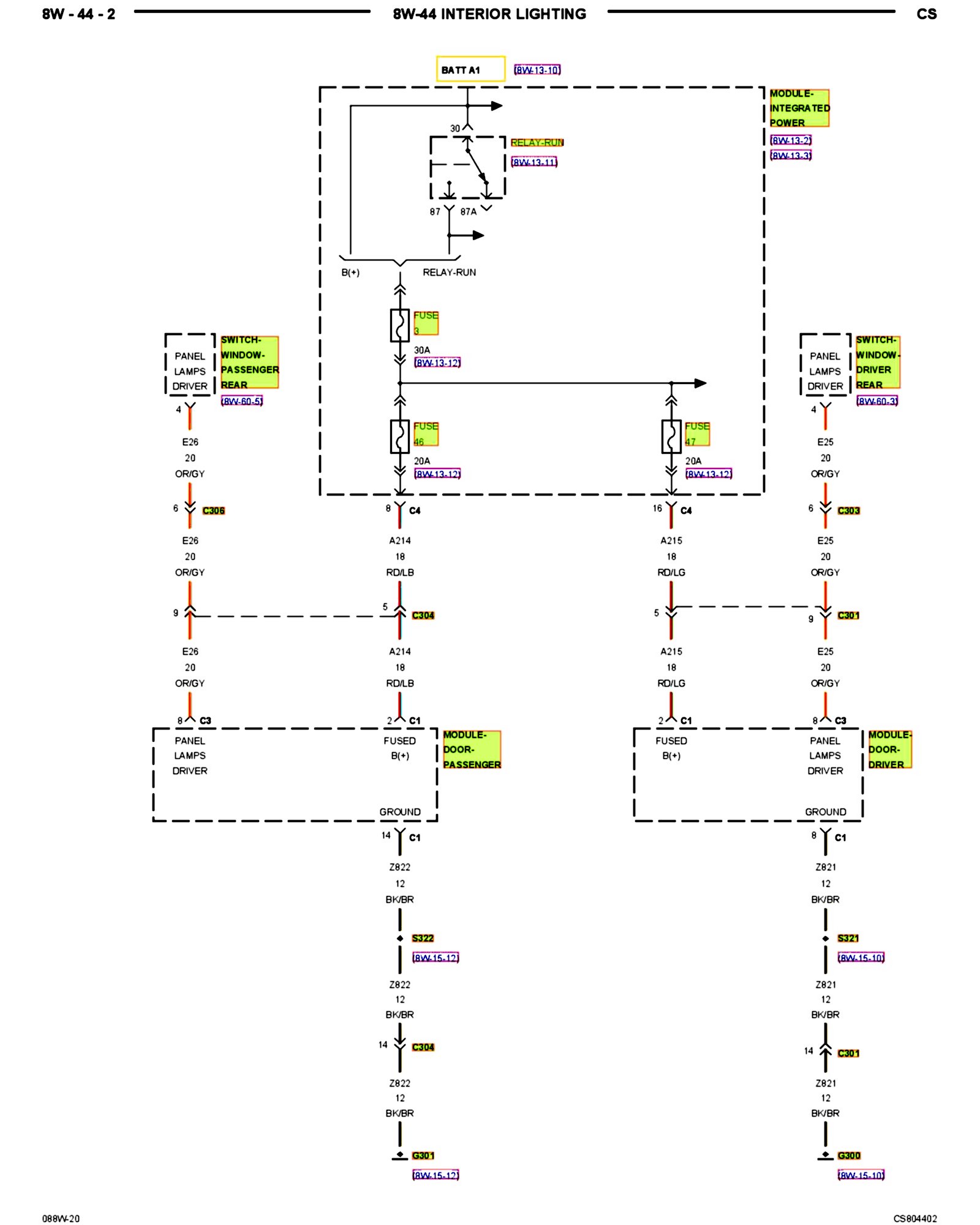

8w-44-02:

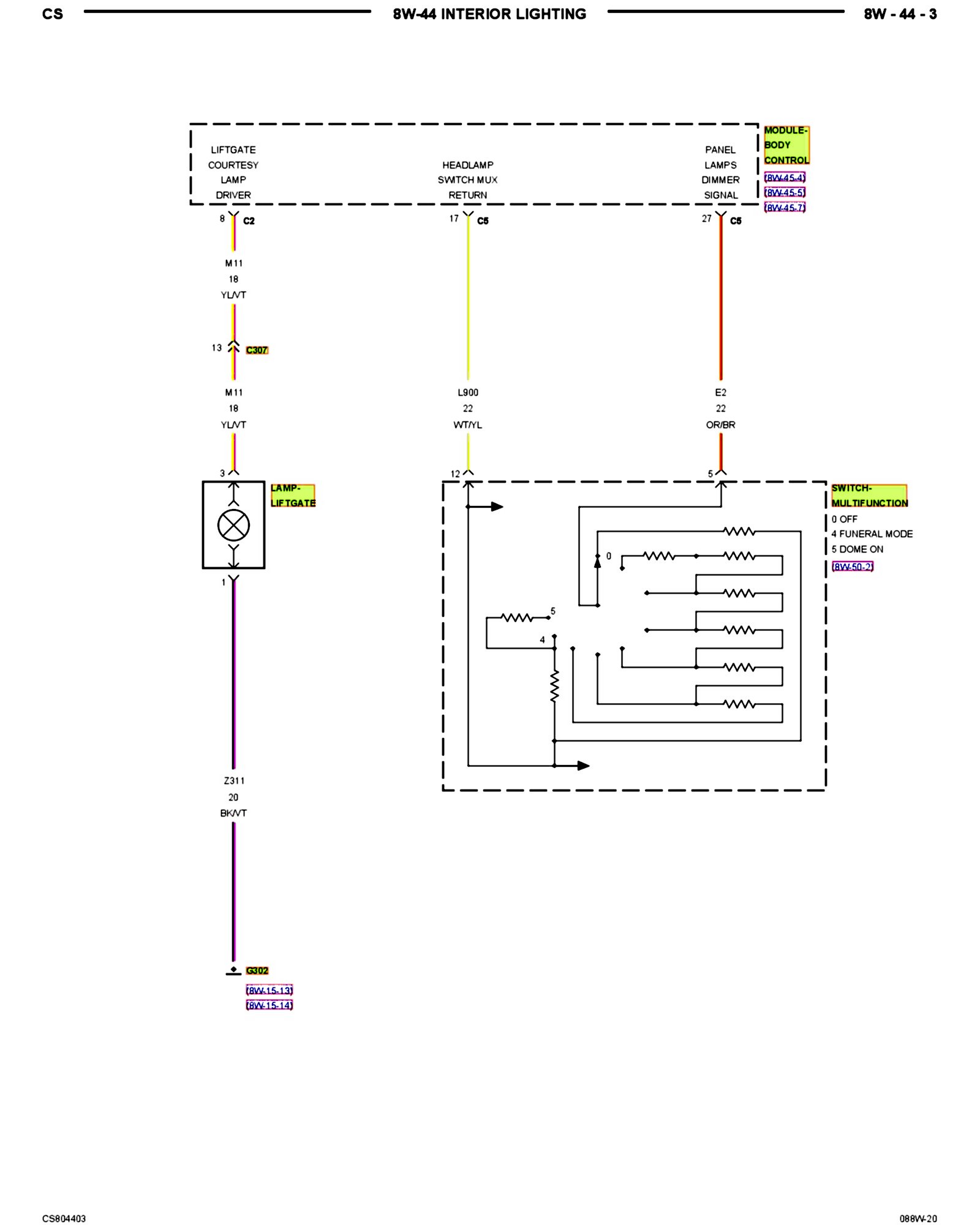

8w-44-03:

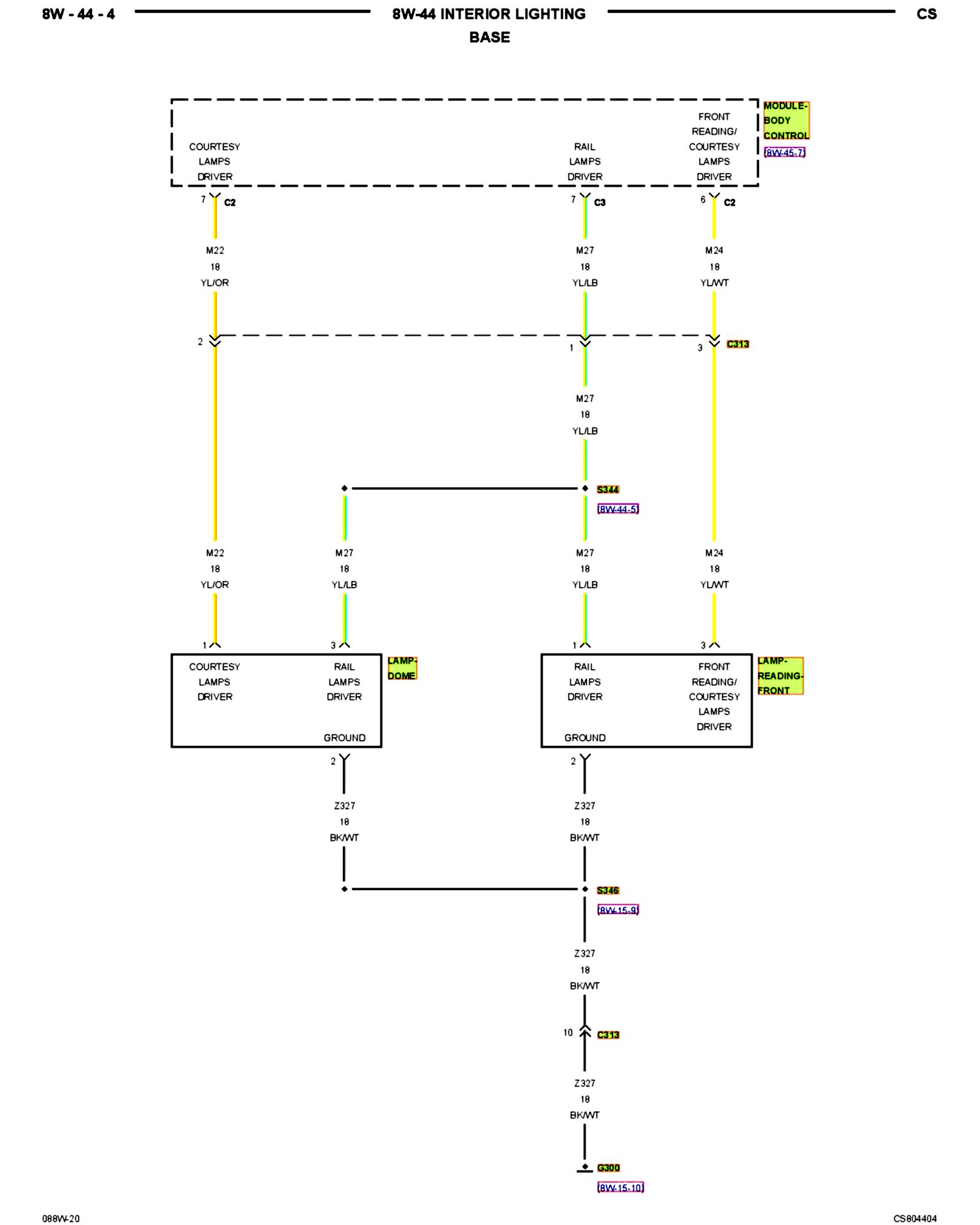

8w-44-04:

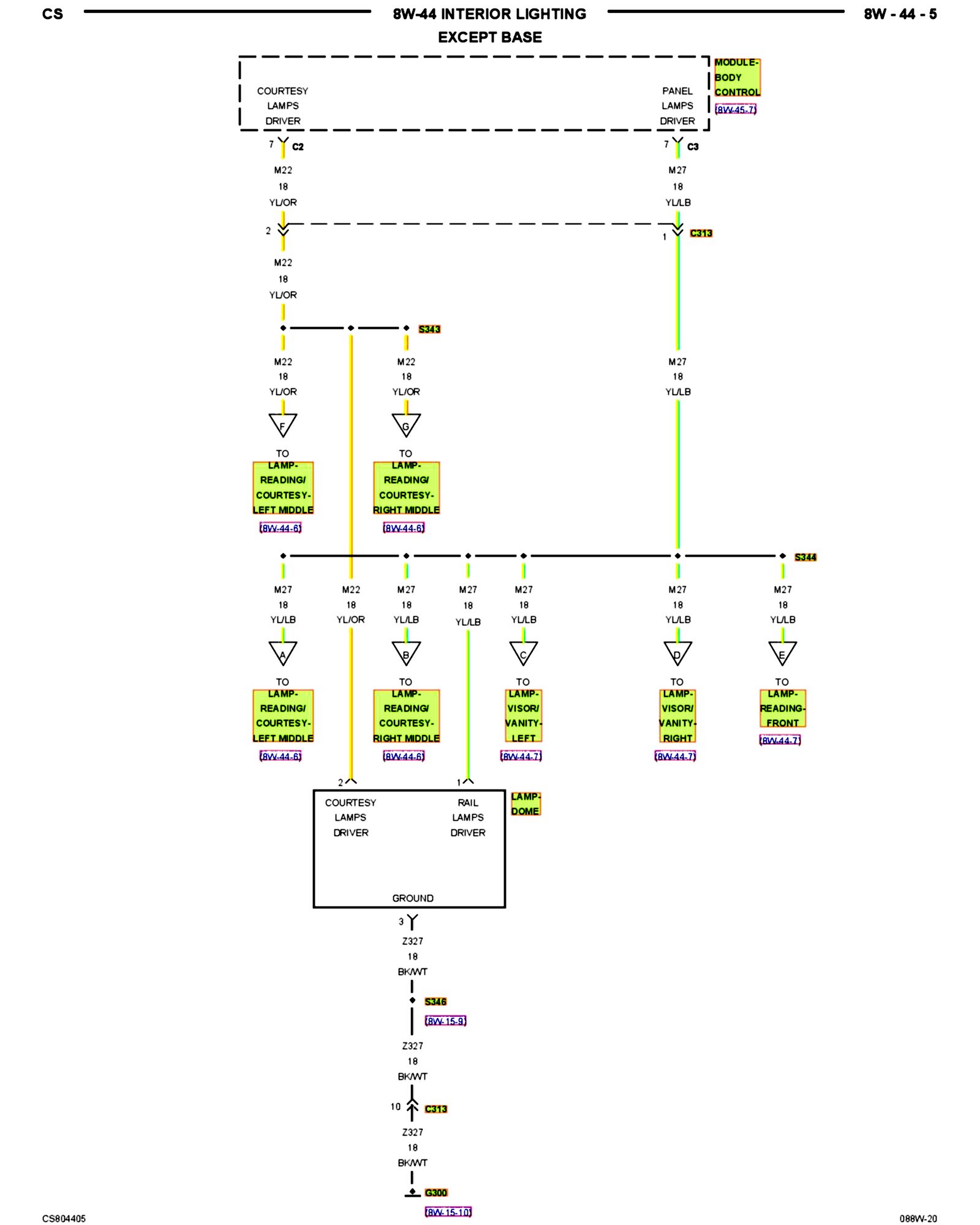

8w-44-05:

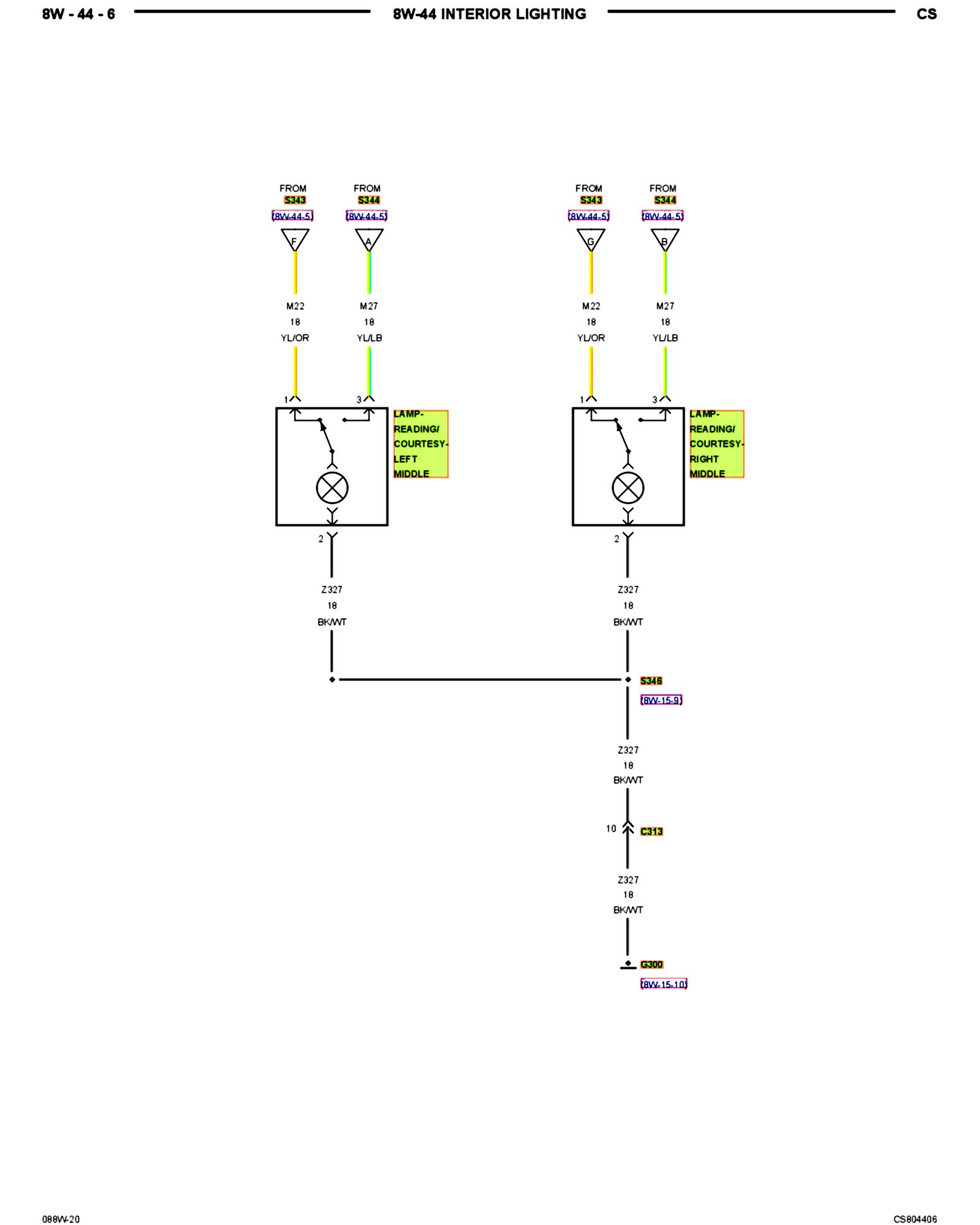

8w-44-06:

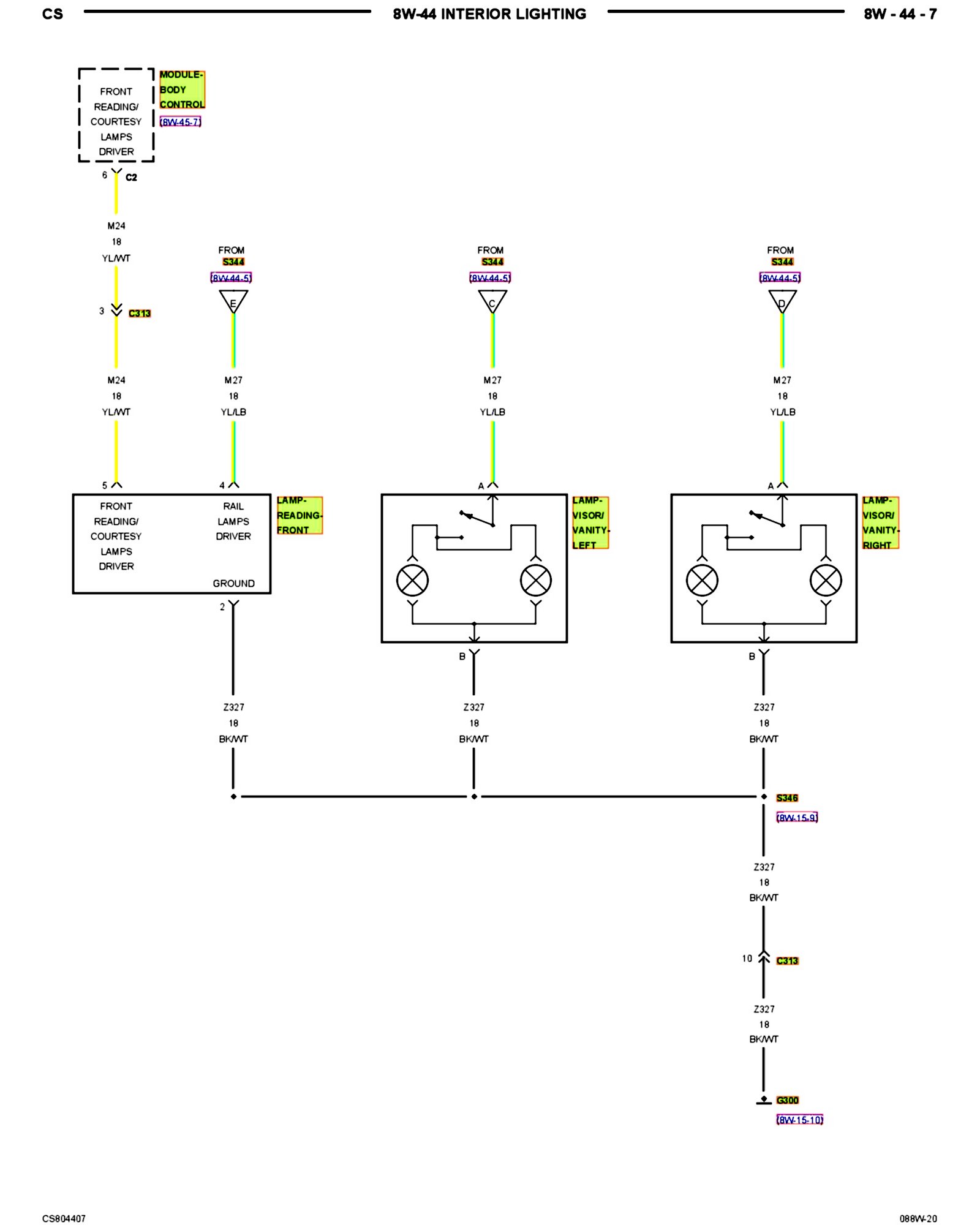

8w-44-07:

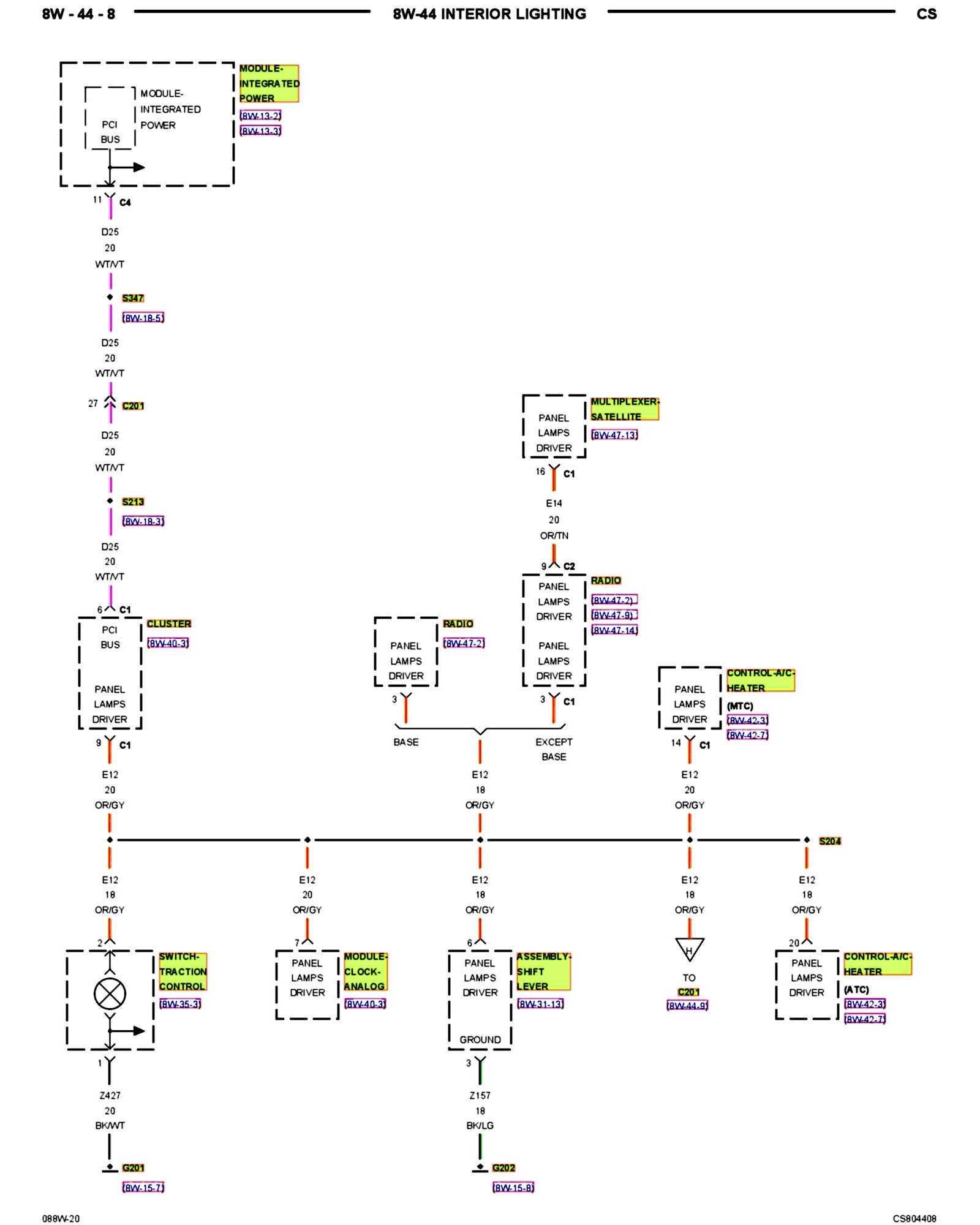

8w-44-08:

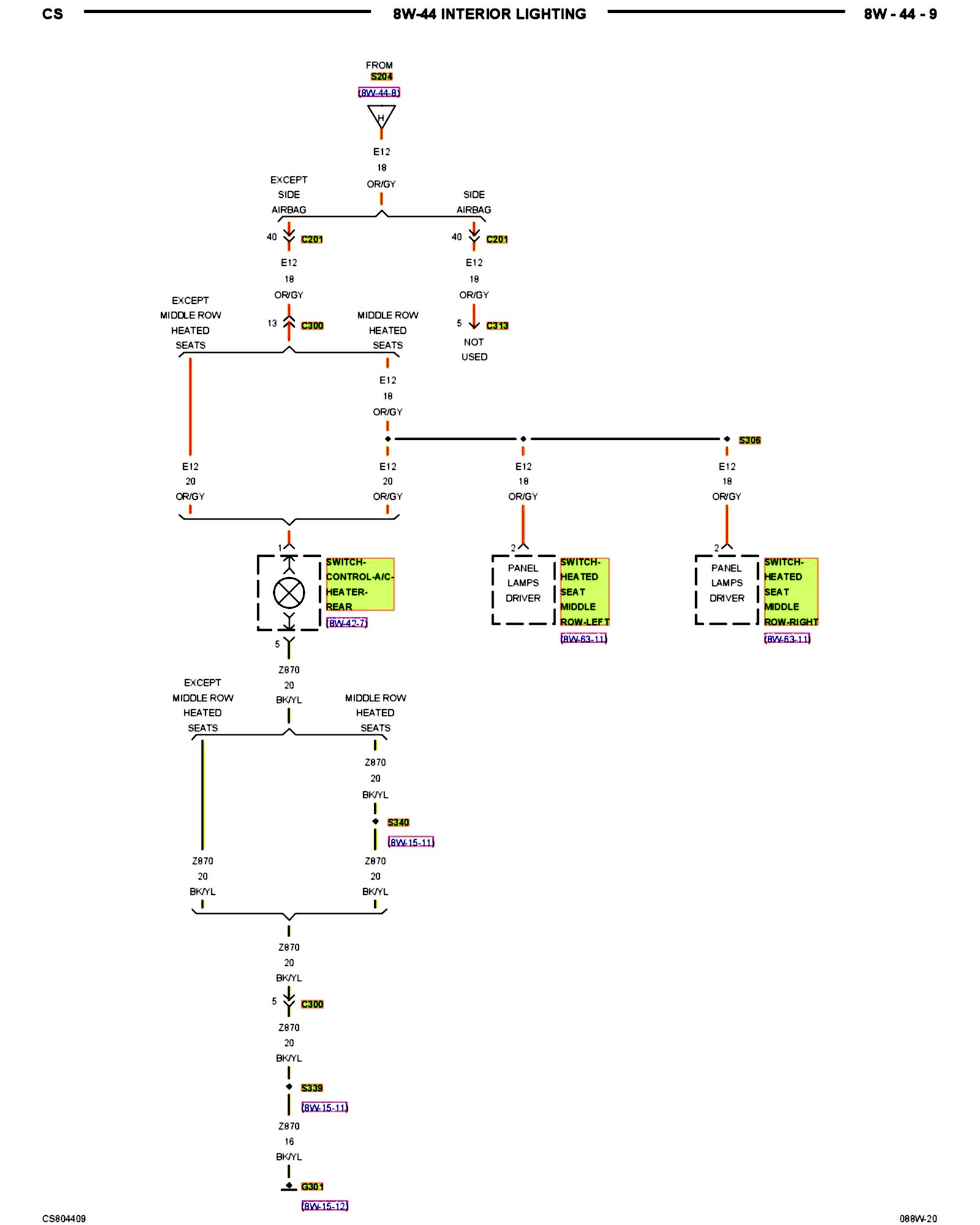

8w-44-09:

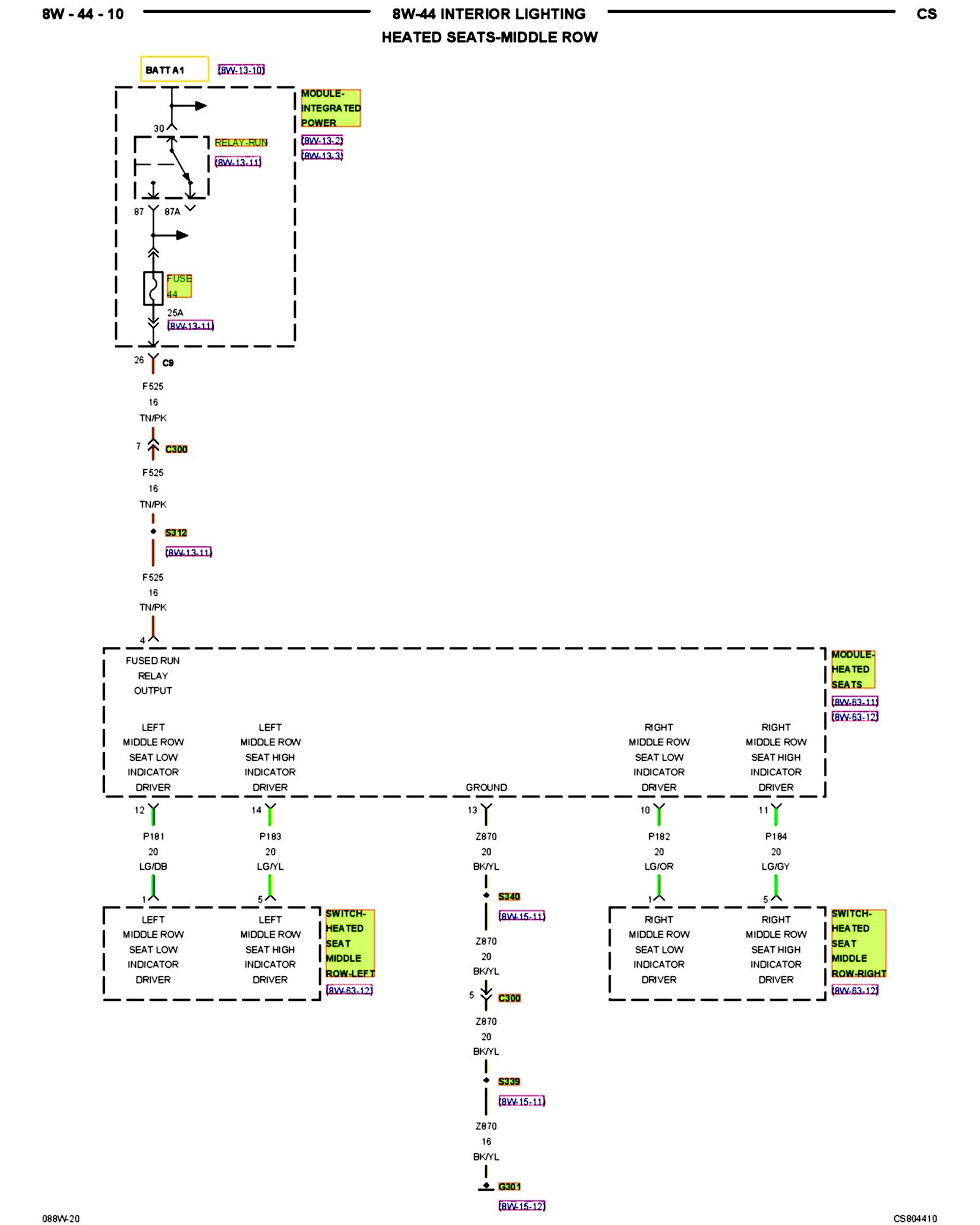

8w-44-10:
