Home >> Chrysler >> 2008 >> Pacifica V6-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-21 (Starting System)

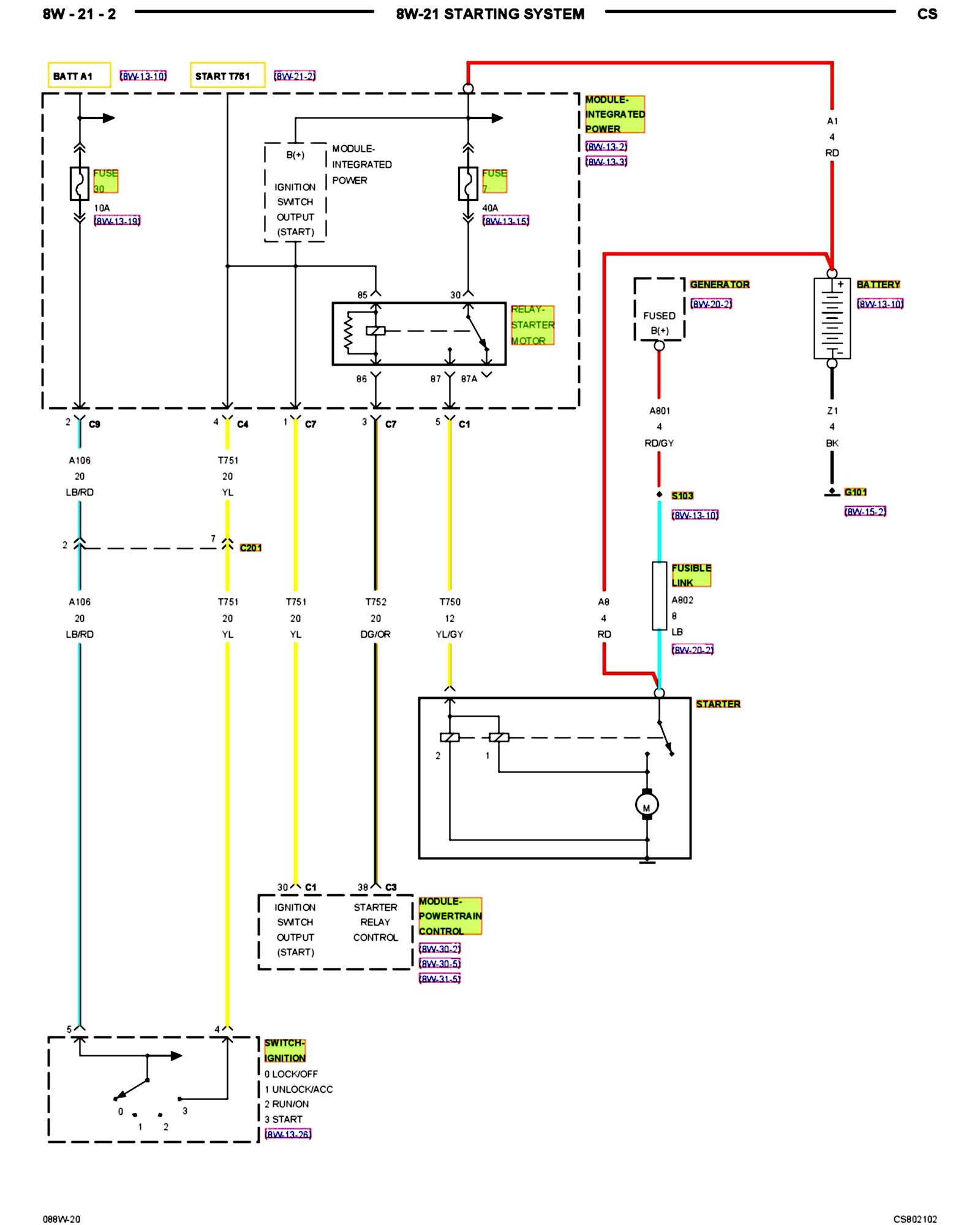

Group 8W-21 (Starting System)

8w-21-02:
