Group 8W-18 (Bus Communications)
Group 8W-18 (Bus Communications)

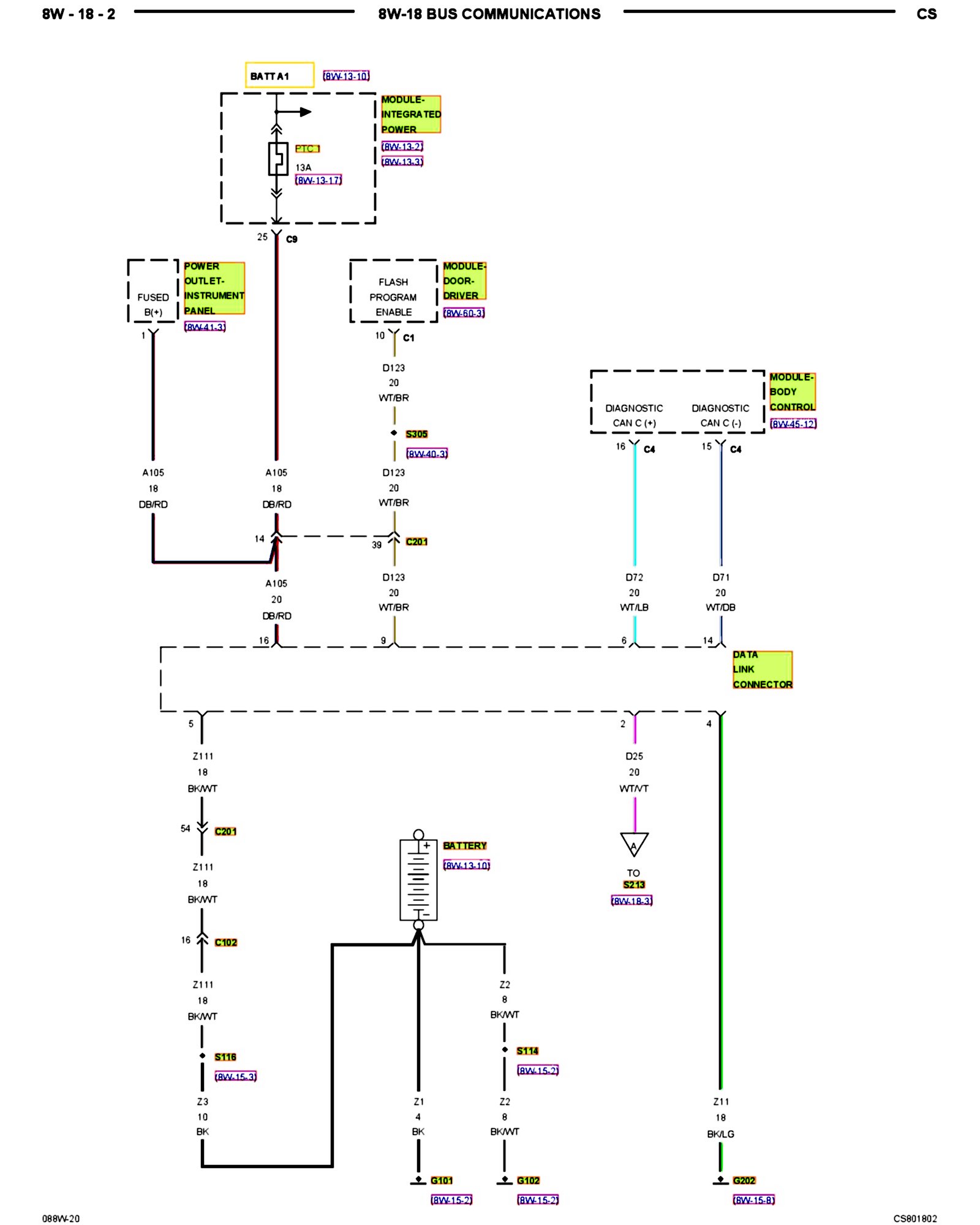

8w-18-02:

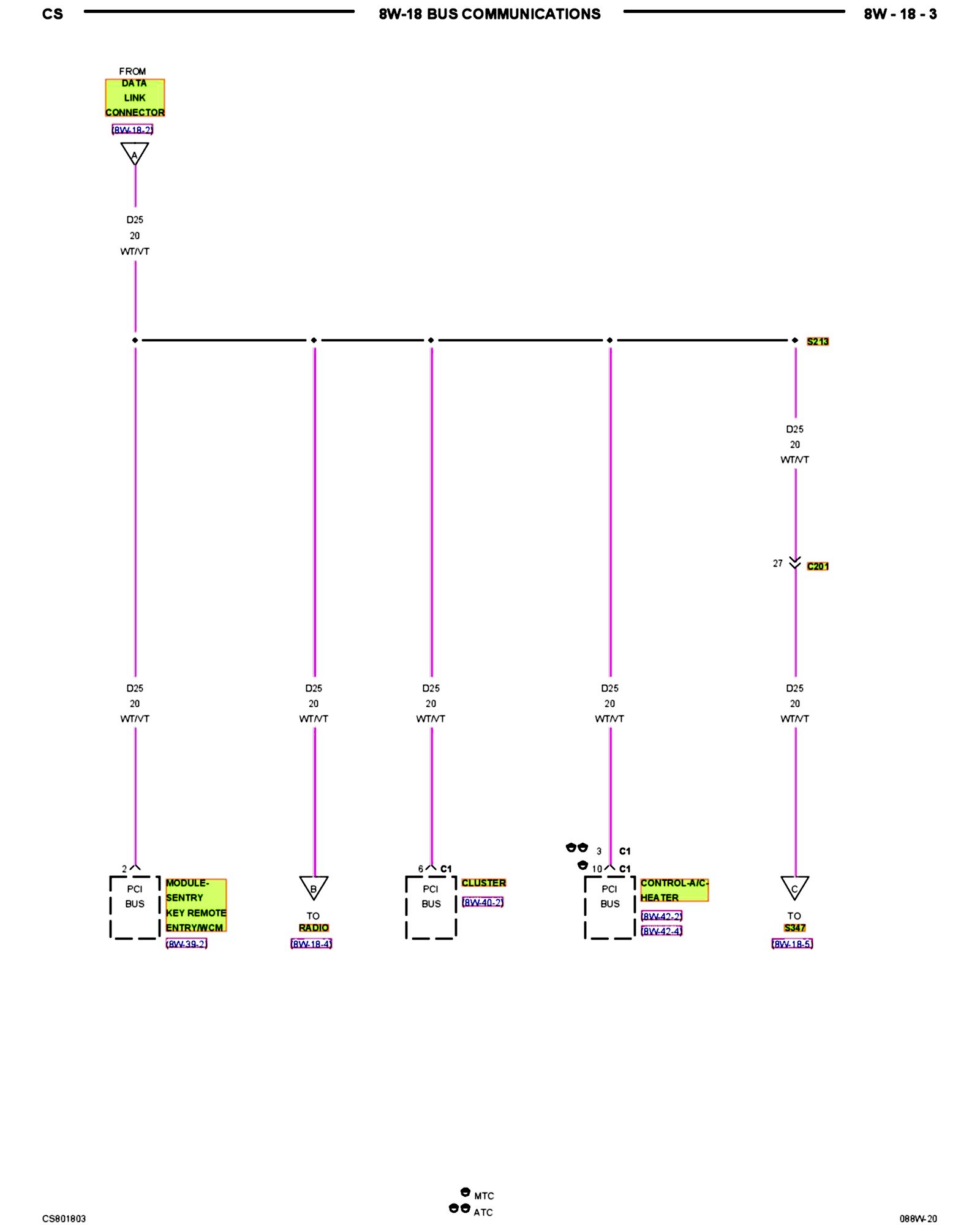

8w-18-03:

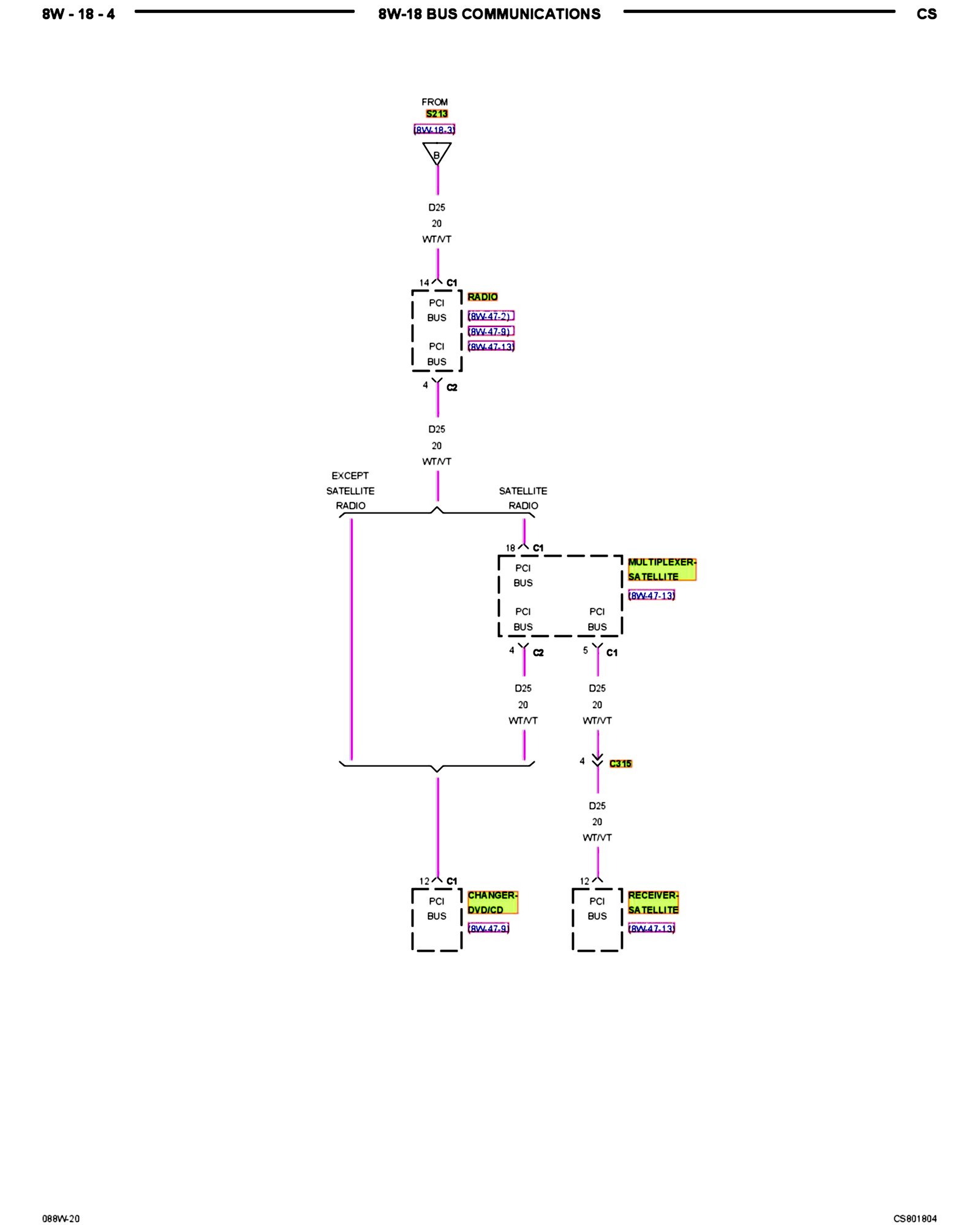

8w-18-04:

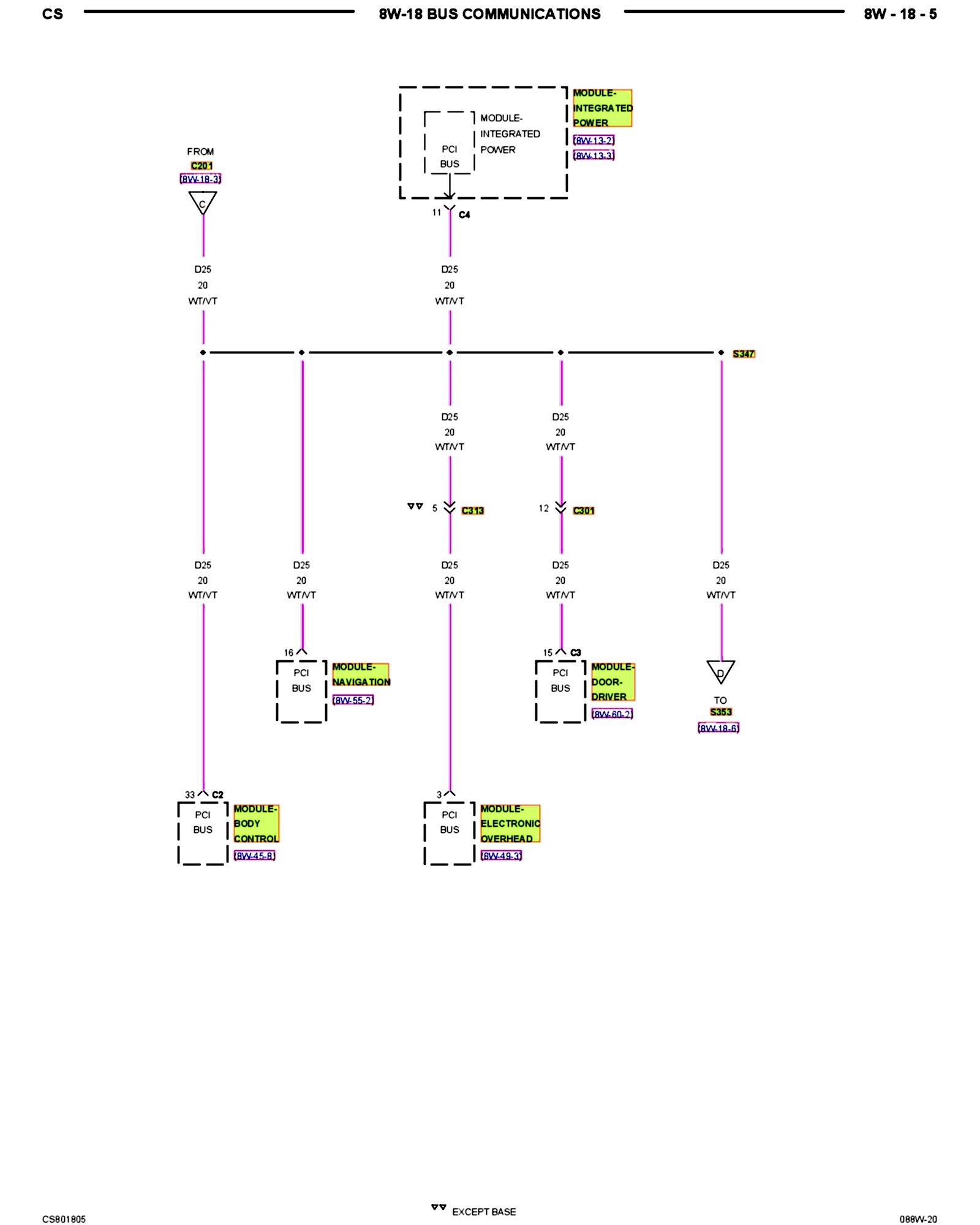

8w-18-05:

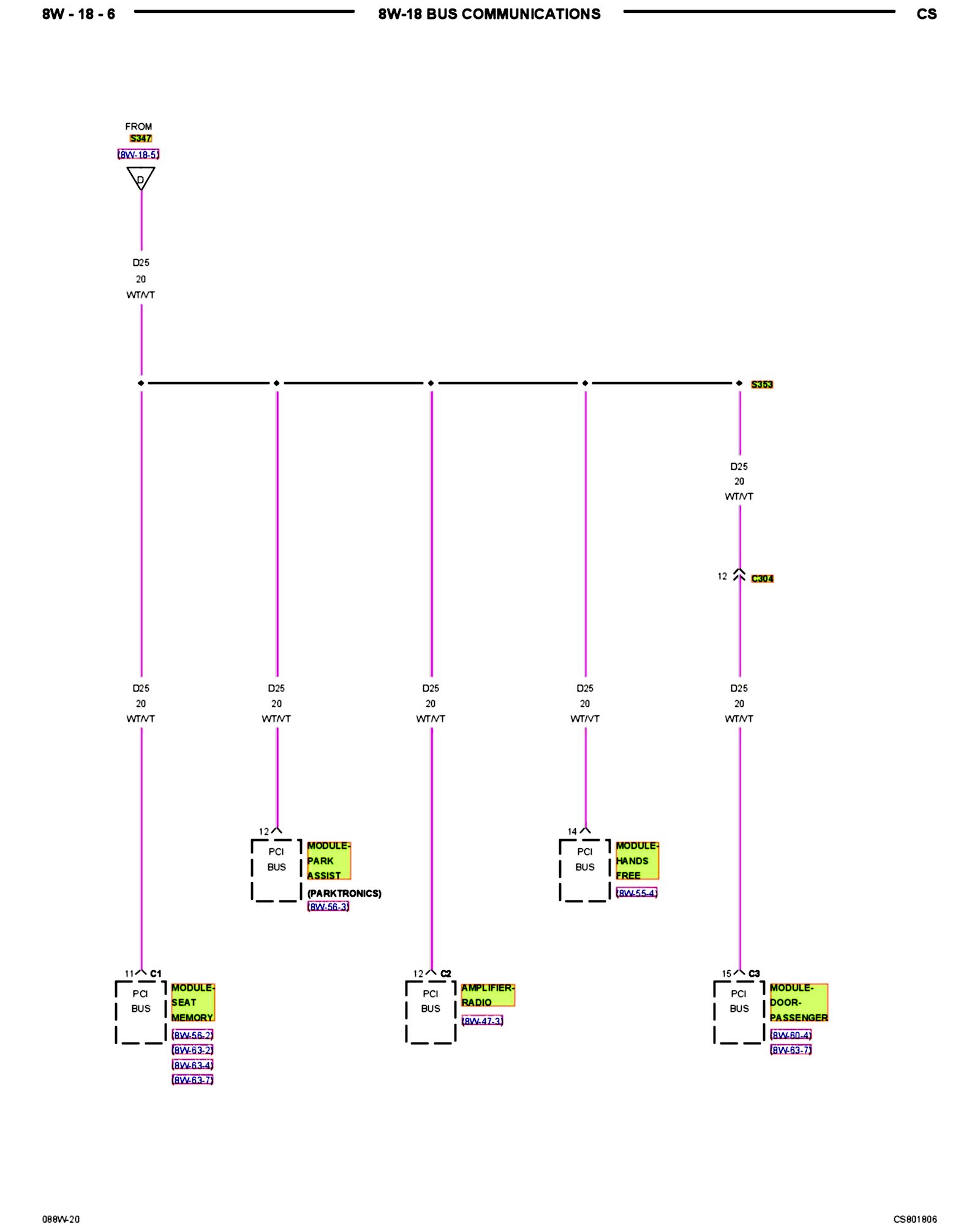

8w-18-06:

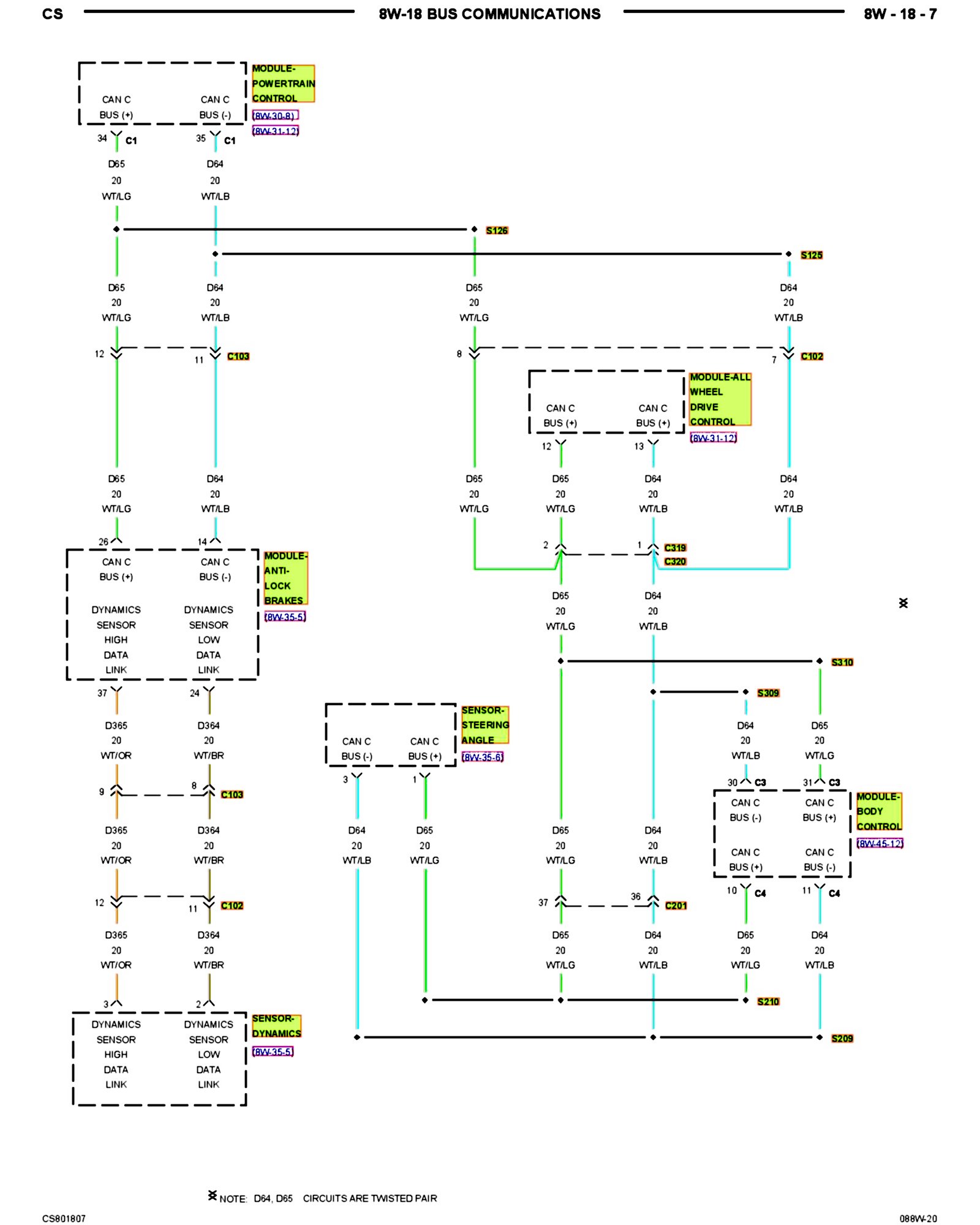

8w-18-07:

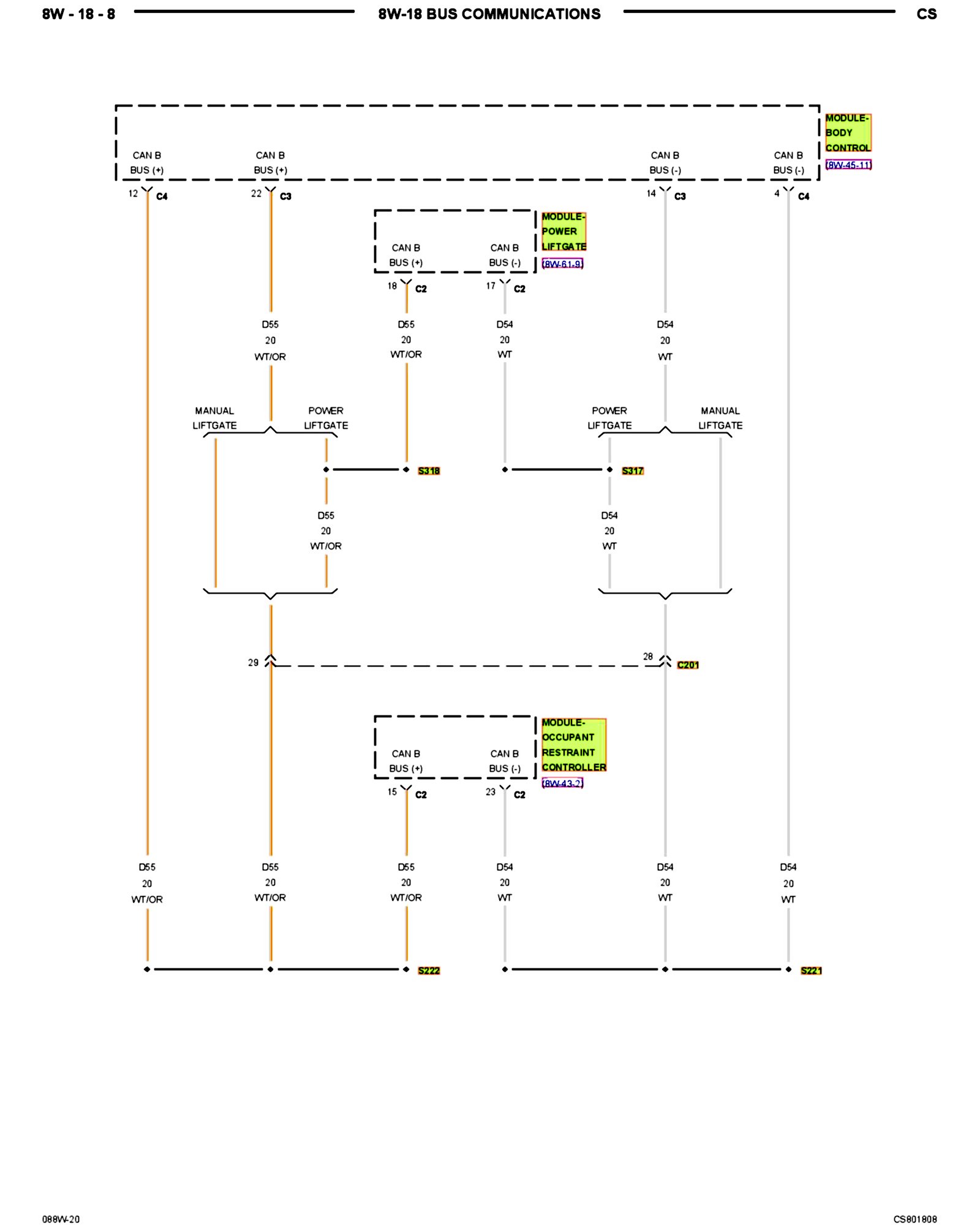

8w-18-08:
