Group 8W-15 (Ground Distribution)
Group 8W-15 (Ground Distribution)
8w-15-02:

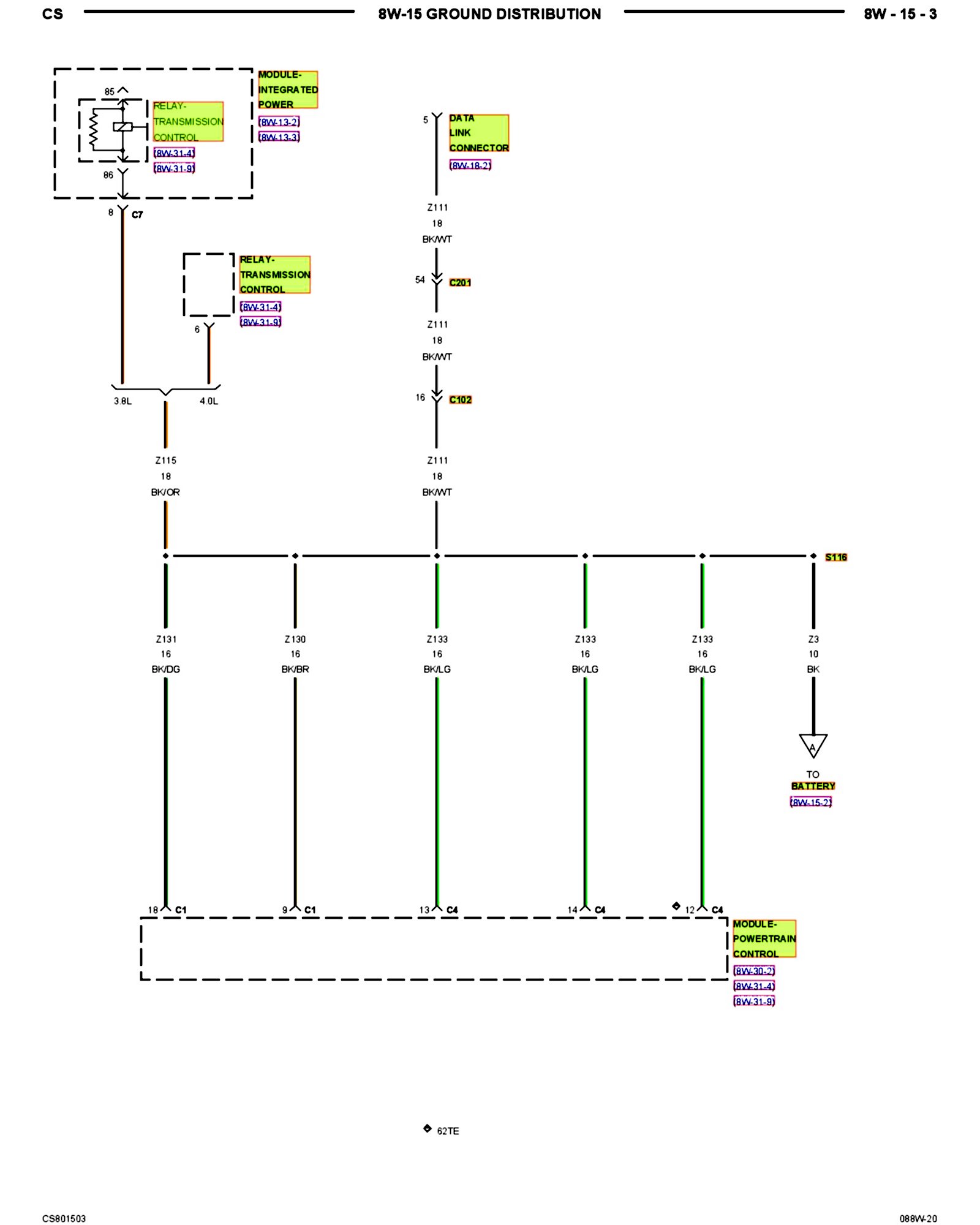

8w-15-03:
8w-15-04:
8w-15-05:
8w-15-06:
8w-15-07:
8w-15-08:

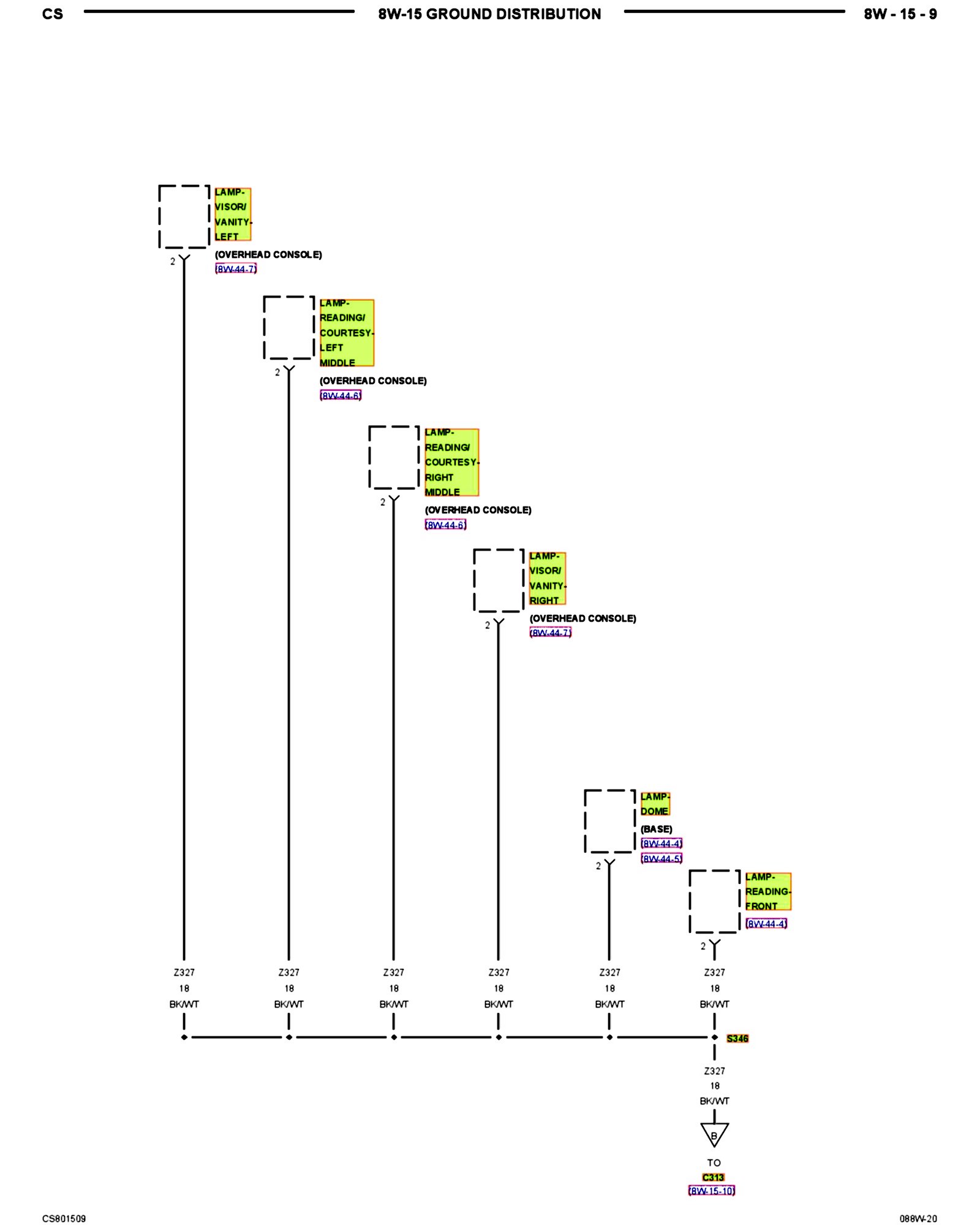

8w-15-09:
8w-15-10:
8w-15-11:
8w-15-12:
8w-15-13:
8w-15-14:
8w-15-15:
8w-15-16:
8w-15-17:
