Speaker-Right Front Door-Tweeter

Component ID: 386

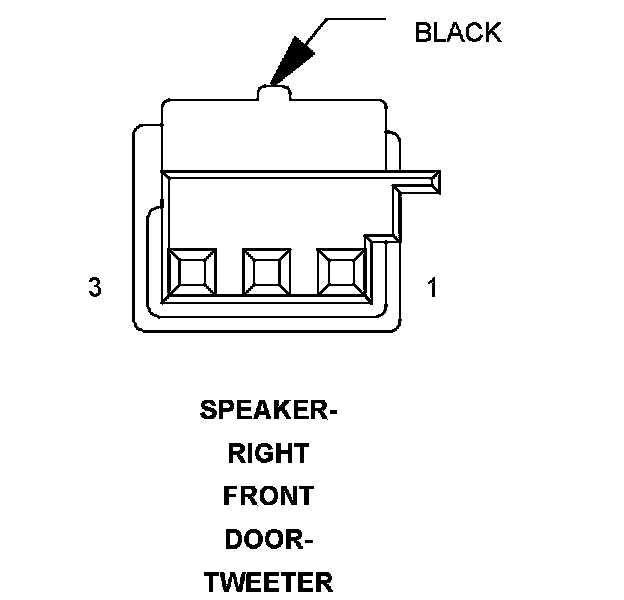

Component : SPEAKER-RIGHT FRONT DOOR-TWEETER

Connector:
Name : SPEAKER-RIGHT FRONT DOOR-TWEETER
Color : BLACK
# of pins : 3




Pin Circuit Description
1 X202 20DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
2 - -
3 X292 20DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)

Component Location - 40
