Motor-Seat Adjuster-Driver Recliner

Component ID: 202
Component : MOTOR-SEAT ADJUSTER-DRIVER RECLINER

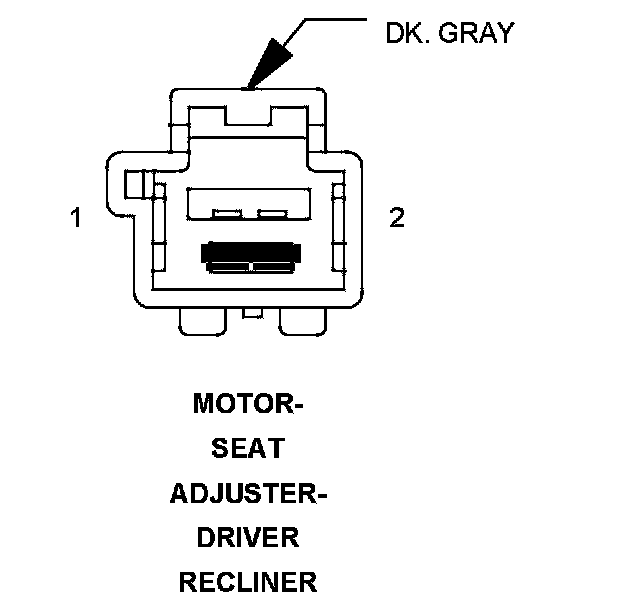

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER RECLINER
Color : DK. GRAY
# of pins : 2




Pin Circuit Description
1 P141 14LG/BR DRIVER SEAT RECLINER DOWN DRIVER
2 P143 14LG/GY DRIVER SEAT RECLINER UP DRIVER

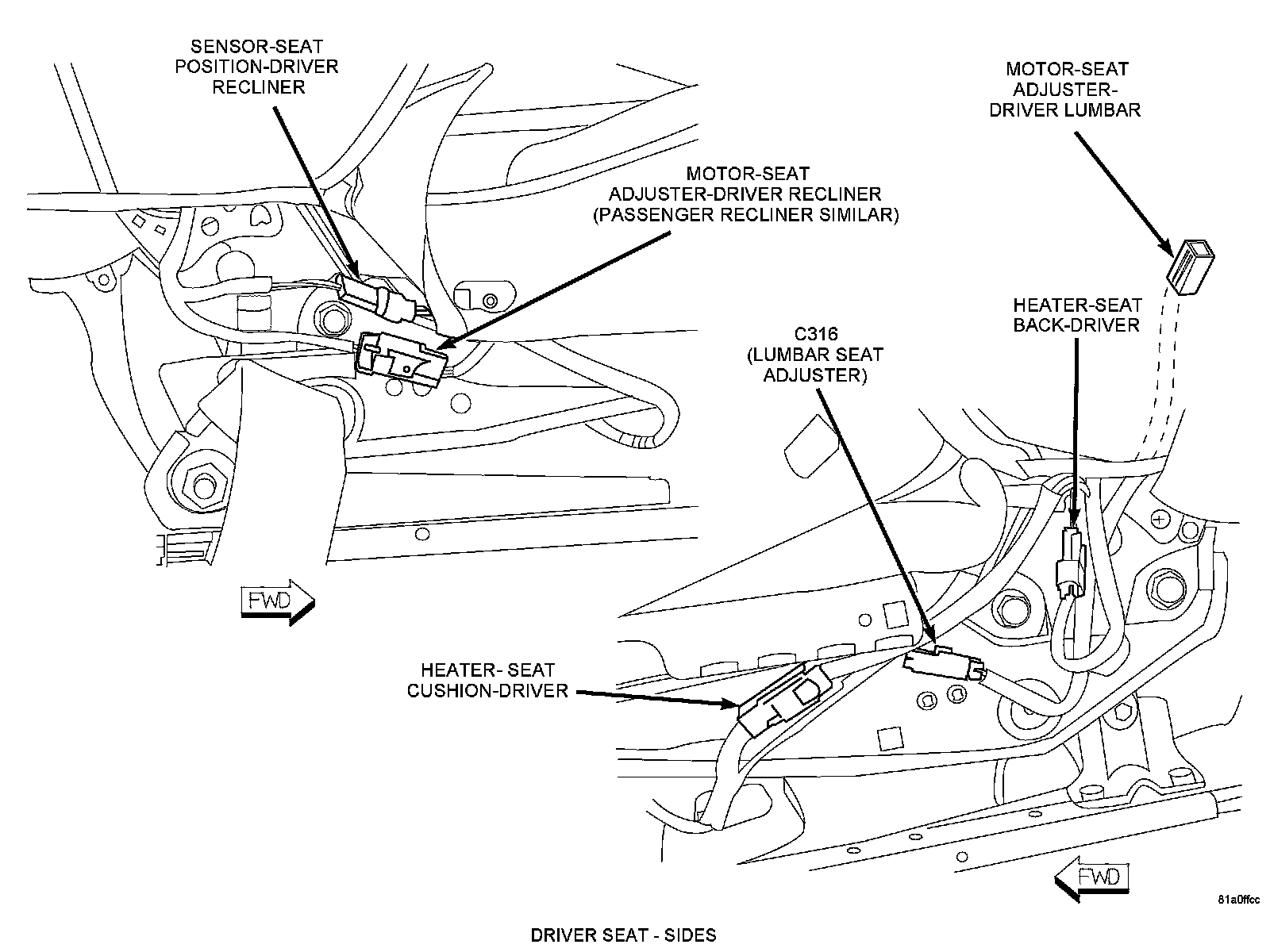

Component Location - 38
