Parking Brake Warning Switch

Component ID: 400

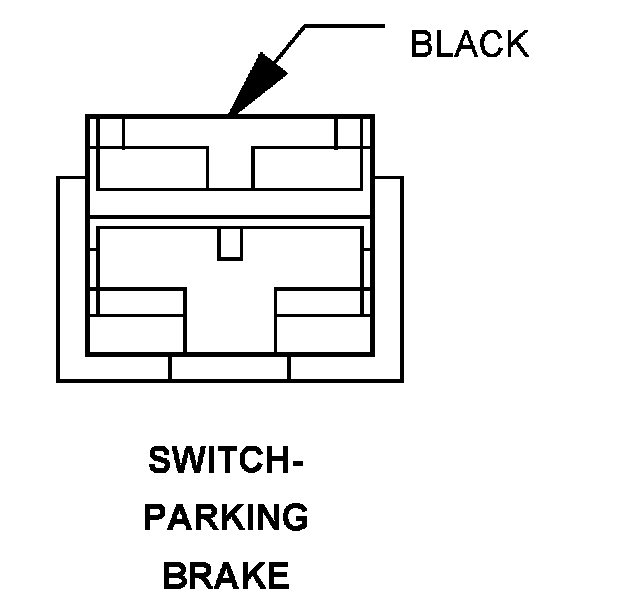

Component : SWITCH-PARKING BRAKE

Connector:
Name : SWITCH-PARKING BRAKE
Color : BLACK
# of pins : 1




Pin Circuit Description
1 B25 20DG/WT PARK BRAKE SWITCH SENSE

Component Location - 25
