Lamp-Side Marker-Right Front

Component ID: 158

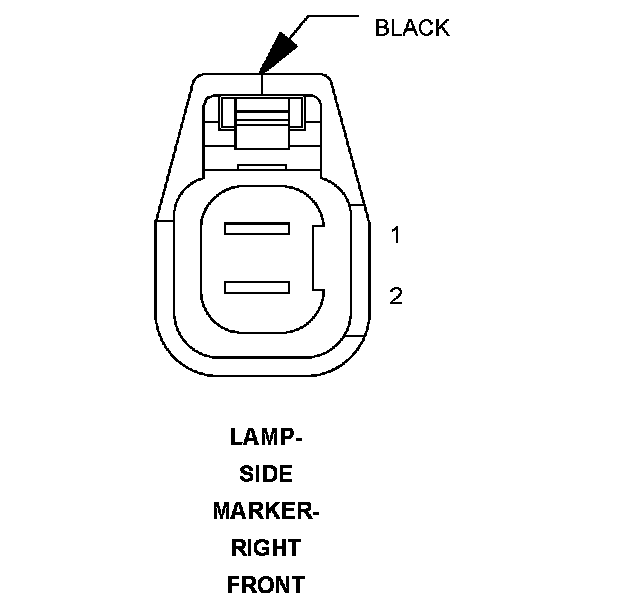

Component : LAMP-SIDE MARKER-RIGHT FRONT

Connector:
Name : LAMP-SIDE MARKER-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 L74 20WT/LB RIGHT FRONT SIDE MARKER LAMP DRIVER
2 Z378 20BK/TN GROUND

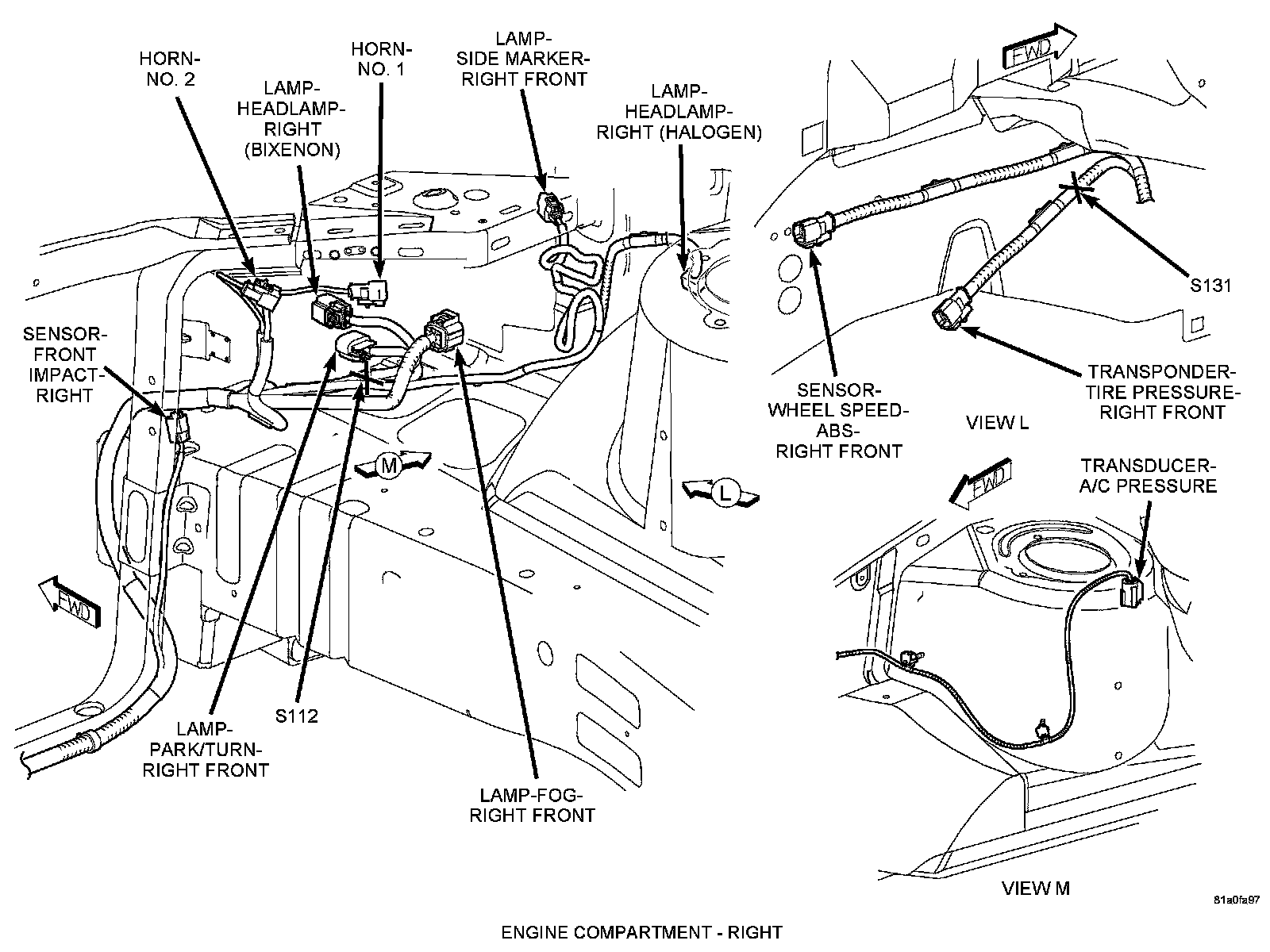

Component Location - 3
