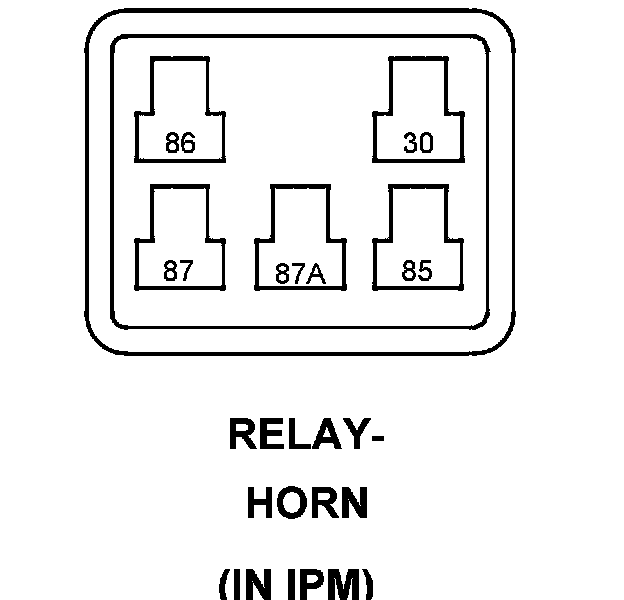

Horn Relay
Component ID: 229
Component : RELAY-HORN
Connector:
Name : RELAY-HORN
Color :
# of pins : 0
30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL HORN RELAY CONTROL
87 X2 16DG/OR HORN RELAY OUTPUT
87A - -
Component ID: 229
Component : RELAY-HORN
Connector:
Name : RELAY-HORN
Color :
# of pins : 0
30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL HORN RELAY CONTROL
87 X2 16DG/OR HORN RELAY OUTPUT
87A - -
