Sensor-Park Assist-No. 8

Component ID: 362

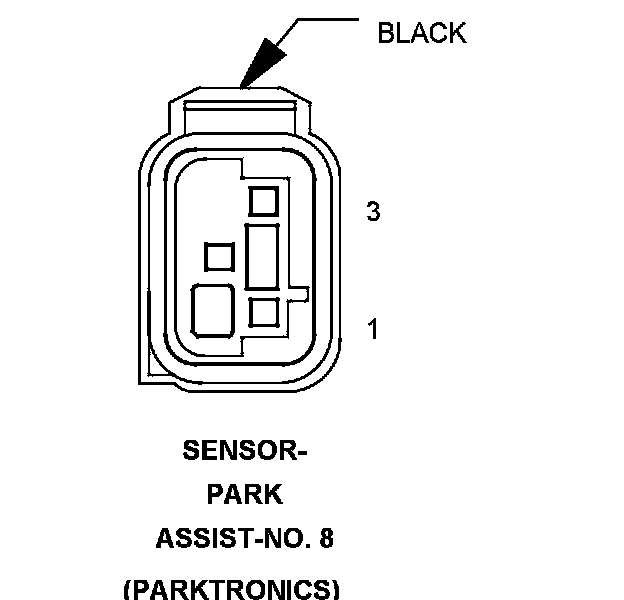

Component : SENSOR-PARK ASSIST-NO. 8

Connector:
Name : SENSOR-PARK ASSIST-NO. 8
Color : BLACK
# of pins : 3
Qualifier : (PARKTRONICS)




Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
2 D701 20WT/LB PARK ASSIST SENSOR NO. 8 SIGNAL
3 X750 20GY/LB PARK ASSIST SENSOR GROUND
