Center Mounted Brake Lamp

Component ID: 149

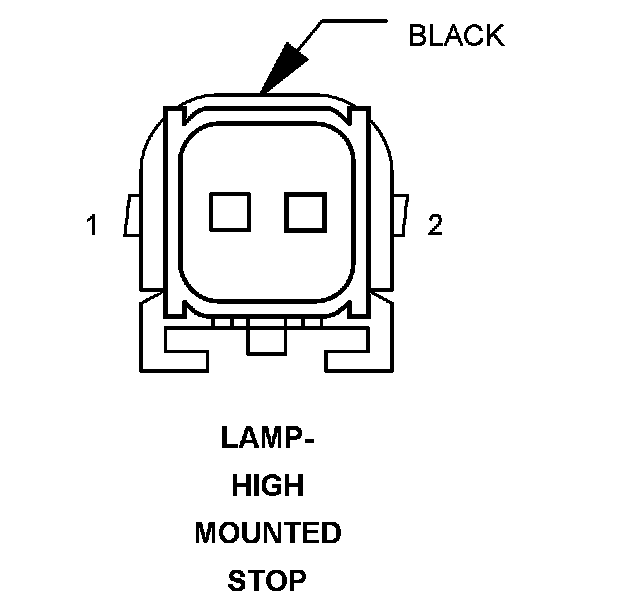

Component : LAMP-HIGH MOUNTED STOP

Connector:
Name : LAMP-HIGH MOUNTED STOP
Color : BLACK
# of pins : 2




Pin Circuit Description
1 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
2 Z350 20BK/TN GROUND

Component Location - 44
