Canister Purge Solenoid

Component ID: 381
Component : SOLENOID-EVAP/PURGE

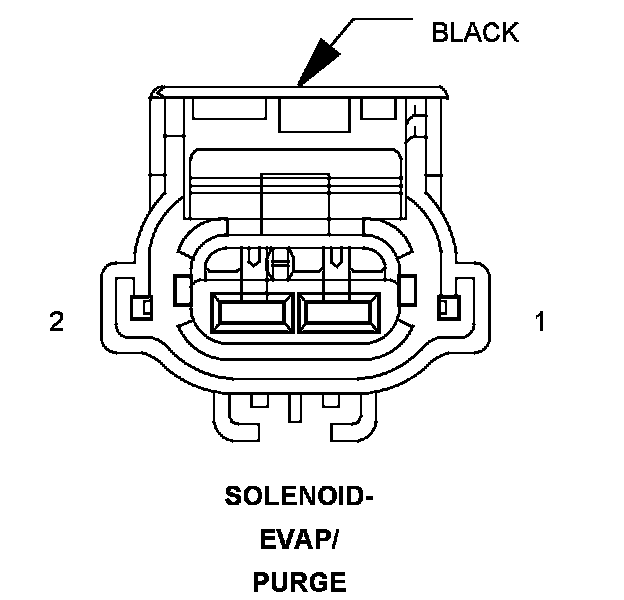

Connector:
Name : SOLENOID-EVAP/PURGE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K52 20DB/WT EVAP PURGE CONTROL
2 K70 20DB/BR EVAP PURGE RETURN

Component Location - 13
