C302

Component ID: 40
Component : C302

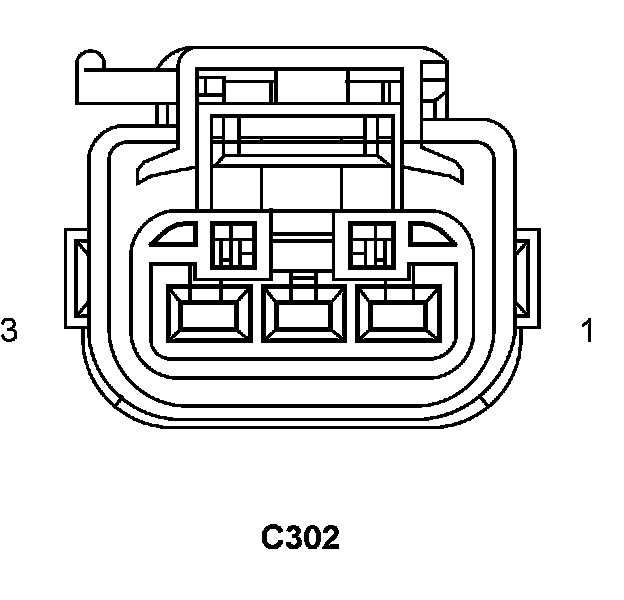

Connector:
Name : C302
Color :
# of pins : 3
Gender : FEMALE




Pin Circuit Description
1 - -
2 A916 12RD/VT FUSED B(+)
3 - -

Component Location - 25




Component Location - 40

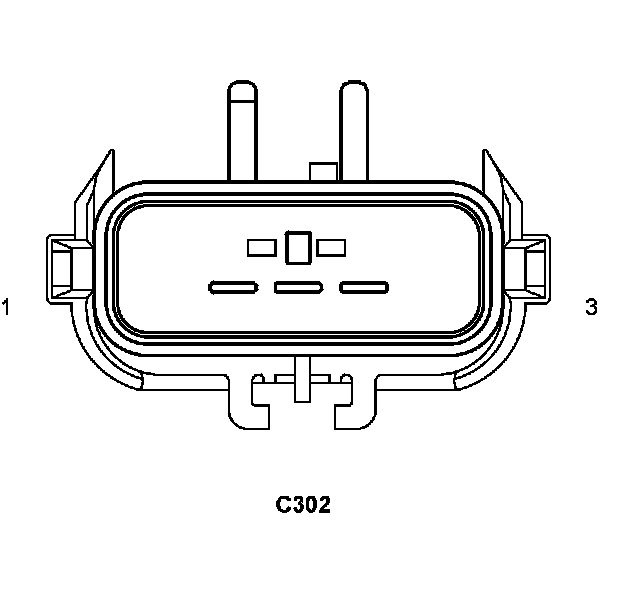

Connector:
Name : C302
Color :
# of pins : 3
Gender : MALE




Pin Circuit Description
1 - -
2 A916 14RD/VT FUSED B(+)
3 - -

Component Location - 25




Component Location - 40
