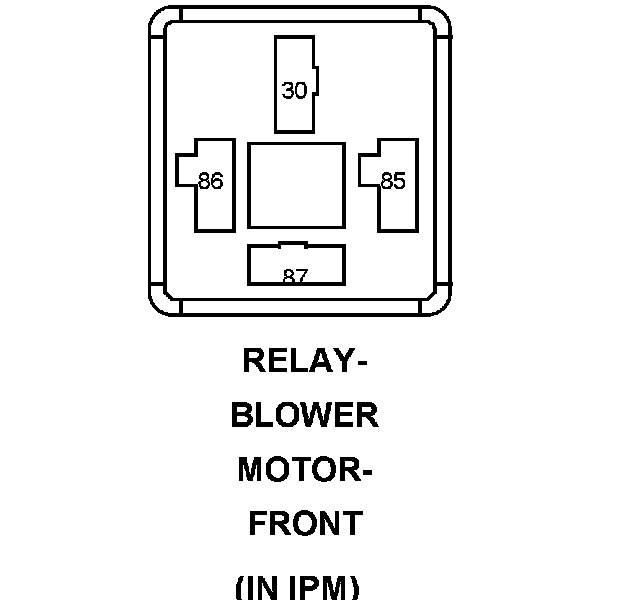

Relay-Blower Motor-Front

Component ID: 223
Component : RELAY-BLOWER MOTOR-FRONT

Connector:
Name : RELAY-BLOWER MOTOR-FRONT
Color :
# of pins : 0




30 INTERNAL B(+)
85 INTERNAL B(+)
86 INTERNAL FRONT BLOWER MOTOR RELAY CONTROL
87 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
87A - -
