Actuator-Blend Door-Passenger

Component ID: 2

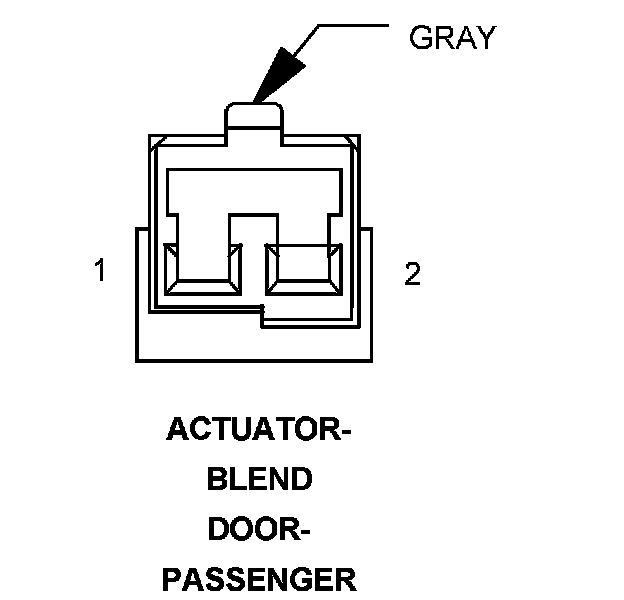

Component : ACTUATOR-BLEND DOOR-PASSENGER

Connector:
Name : ACTUATOR-BLEND DOOR-PASSENGER
Color : GRAY
# of pins : 2




Pin Circuit Description
1 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
2 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C34 20DB/LB COMMON DOOR DRIVER (B)

Component Location - 20
