Airbag-Driver Squib 2

Component ID: 6

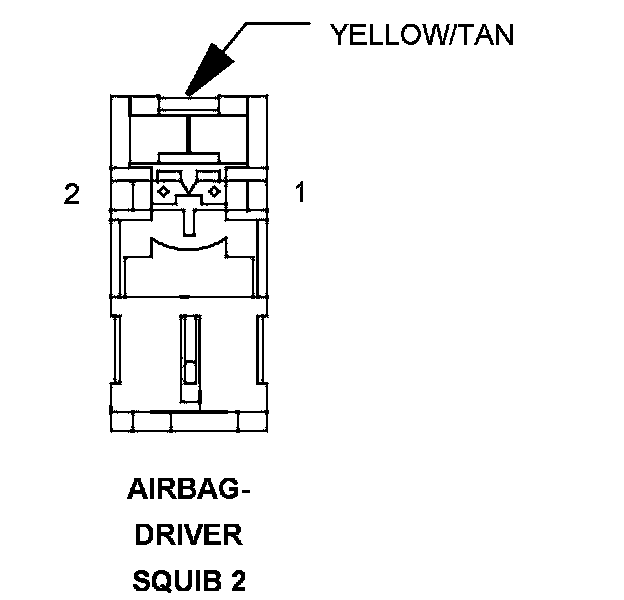

Component : AIRBAG-DRIVER SQUIB 2

Connector:
Name : AIRBAG-DRIVER SQUIB 2
Color : YELLOW/TAN
# of pins : 2




Pin Circuit Description
1 R61 20LG/VT DRIVER SQUIB 2 LINE 2
2 R63 20LG/WT DRIVER SQUIB 2 LINE 1

Component Location - 22
