Accessory Drive Splash Shield - Removal

REMOVAL





1. Hoist and support vehicle on safety stands, as necessary.
2. Move front wheel as necessary to access the splash shield.

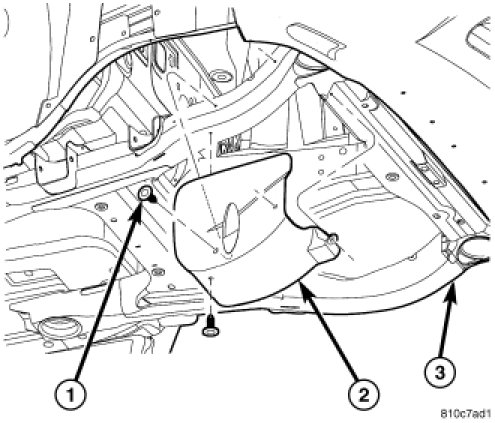

3. Remove four push pins attaching accessory drive splash shield to engine cradle.
4. Remove accessory drive splash shield from vehicle.
