Third Row







REMOVAL





1. Open liftgate.
2. Remove rear floor stowage bin. Removal.

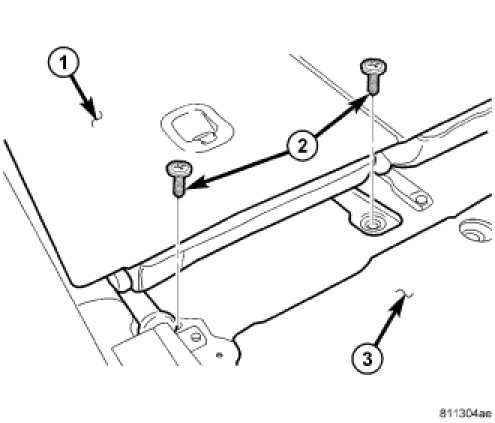

3. Remove third row seat rear two attaching bolts.




4. Remove third row seat front covers.
5. Remove the third row seat front two attaching bolts.
6. Remove seat from vehicle.
