Installation

INSTALLATION

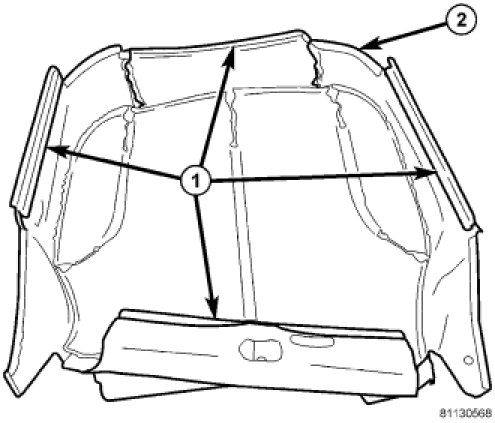

1. Position front seat back cushion foam and seat back cover together.
2. Place front seat back foam/cover onto front seat back frame.

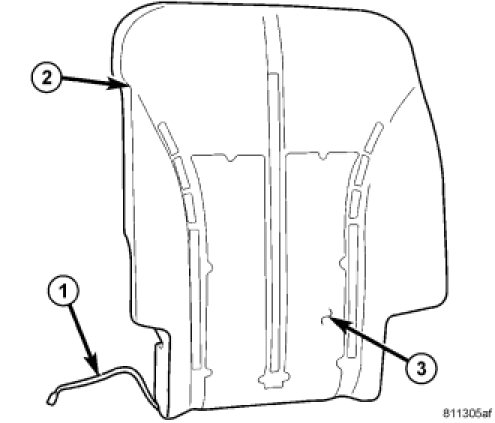

3. Engage J-straps attaching front seat back cover to seat back frame.




4. Install front seat back side cushion cover, if equipped.
5. Install front seat back to front seat assembly. Seat Back - Installation.
6. Install front seat. Seat - Installation.
7. Install front seat headrest sleeves and headrest. Headrest - Installation.
