Installation

INSTALLATION





1. Position recliner assembly (2) onto the seat back frame (1).
2. Install bolts attaching recliner to seat back frame and tighten to 28 Nm (20 ft. lbs.).

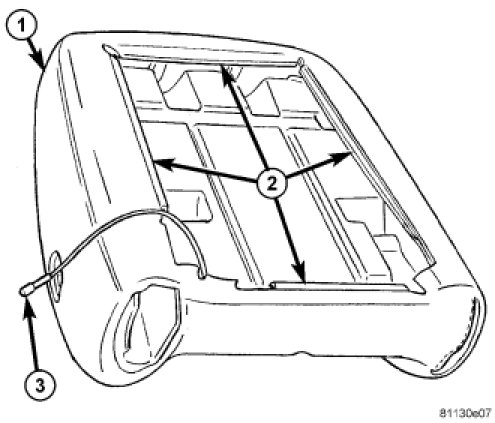

3. Roll seat cover (1) downward.
4. Engage J-strap (2) at base of seat cushion.
5. Install the seat back. Seat Back - Installation.
