Installation

INSTALLATION

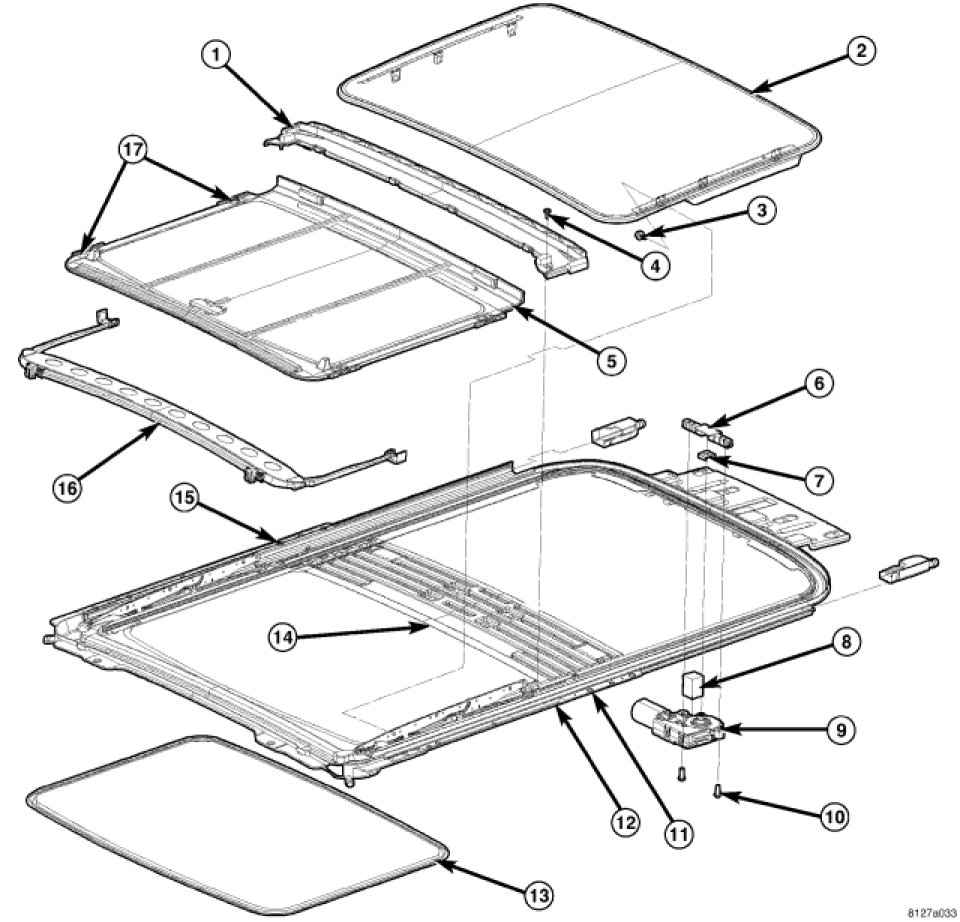

1. Place butt joint of trim lace into position starting at the rear of the opening at the butt joint notch (14) in the U-frame.
2. Push trim lace into position.
3. Ensure that the corner radii is fully engaged.
4. Once the original trim lace is attached to sunroof module using a Trim Stick C-4755 or equivalent, begin tucking the headliner under the lip on the trim lace working all the way around the opening. When installing a new trim lace, begin tucking the headliner under the lip as the tear cord is removed working all the way around the opening.
