Installation

INSTALLATION





NOTE: Cross bars must be installed onto the side rails before installing rails.

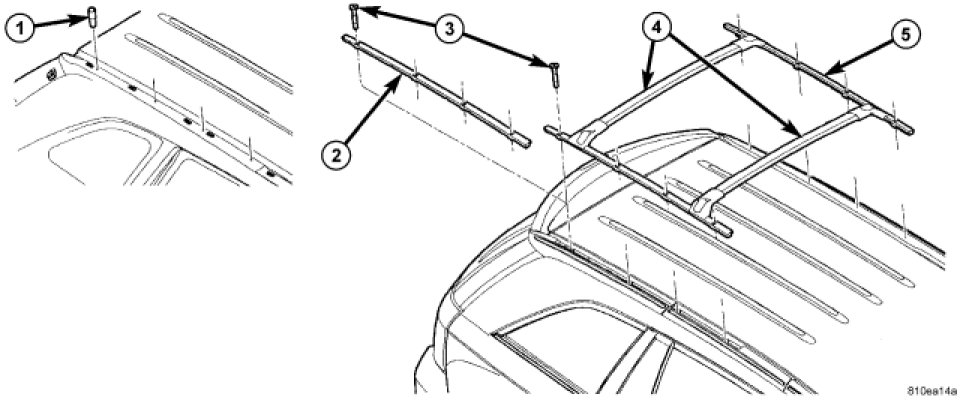

1. Place side rails in position on a clean flat surface. Starting at front end of side rails slide crossbars onto side rails.
2. Place crossbars into position on side rails and press the lower edge of the cross bar lever to lock it into position on each side.
3. Place luggage rack assembly into position on vehicle.

NOTE: To ensure proper sealing of the threads, new screws should be used.

4. Install new attaching screws into the RIV nuts and tighten screws to 6 Nm (55 in. lbs.) torque.

NOTE: To minimize wind noise, both crossbars should be repositioned to the rear of the vehicle.
