Outside Rearview Mirror - Installation

INSTALLATION

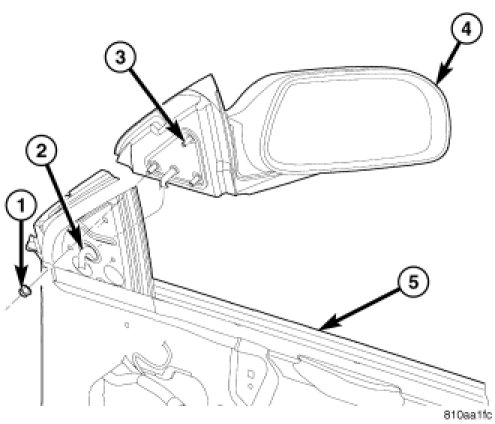

1. Place outside mirror in position.
2. Install nuts attaching mirror to door.




3. Install mirror flag stuffier into position.

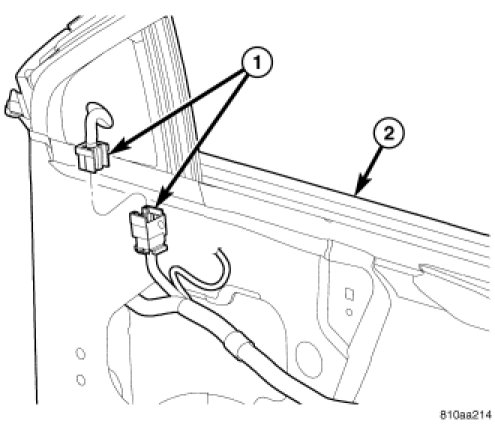

4. Connect the electrical connector, if equipped.
5. Verify proper mirror operation.
6. Install front door trim panel. Front Door Trim Panel - Installation.
7. Install front door frame molding.
