Latch-Door-Driver Rear

Component ID: 164
Component : LATCH-DOOR-DRIVER REAR

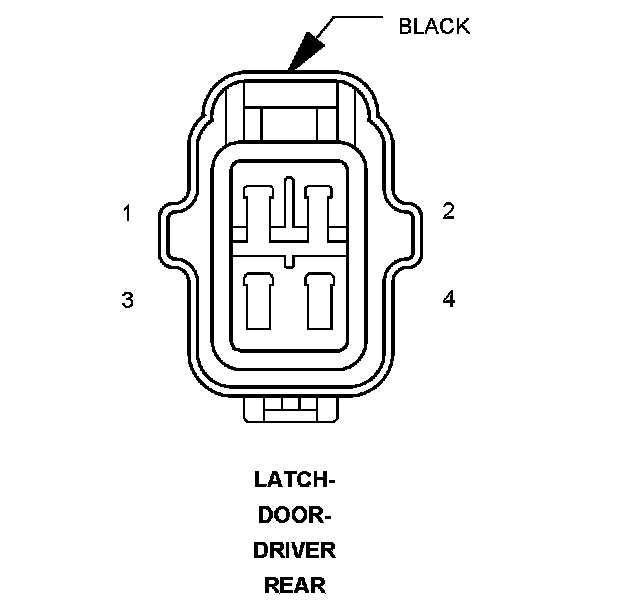

Connector:
Name : LATCH-DOOR-DRIVER REAR
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G77 20VT/YL LEFT REAR DOOR AJAR SWITCH SENSE
2 G983 20VT/TN GROUND
3 P292 18VT/LG DOOR UNLOCK DRIVER
4 P222 18VT/DG DOOR LOCK DRIVER

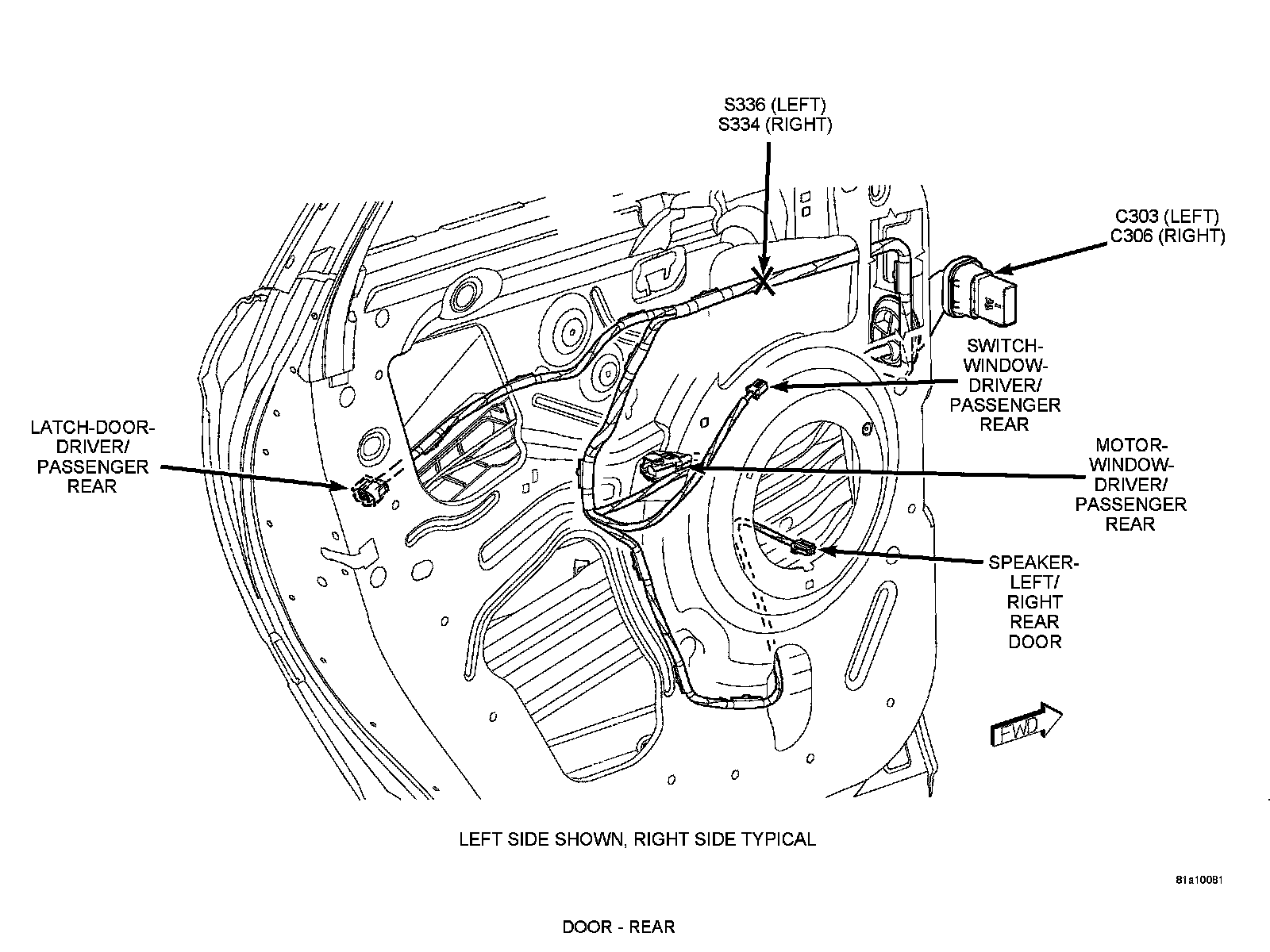

Component Location - 42
