C-Pillar Trim Panel-Removal

REMOVAL





1. Open rear door and liftgate.
2. Fold door first row and second row seats to access upper trim panel.
3. Remove rear header trim. Removal.
4. Remove D-pillar trim panel. Removal.
5. Remove lower D-pillar seat belt anchor. . Service and Repair
6. Remove quarter trim bolster to access screws attaching C-pillar upper trim panel.

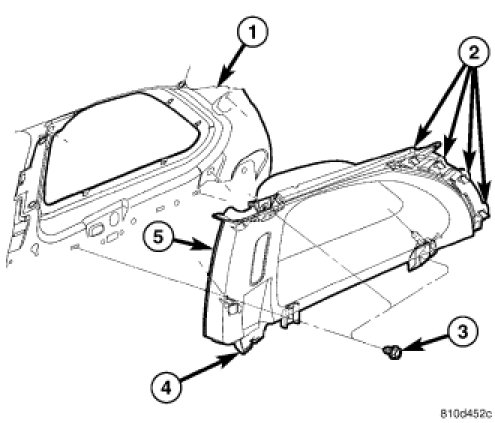

7. Using a Trim Stick C-4755 or equivalent, disengage the locking tabs and remove C-pillar upper trim panel.
8. Remove trim panel from vehicle.
