Removal







REMOVAL

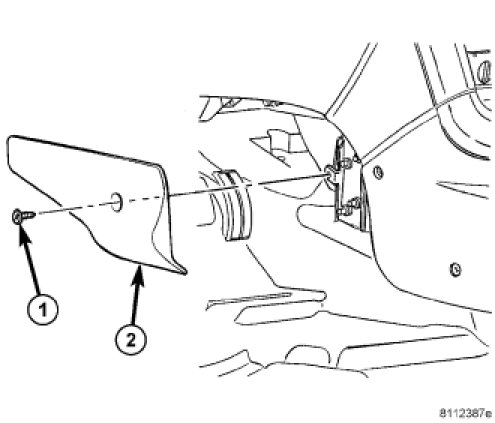

NOTE: Left hand shown, right side similar.





1. Remove left and right attaching screws.
2. Remove left and right center console closeout panels.
