Rear Console

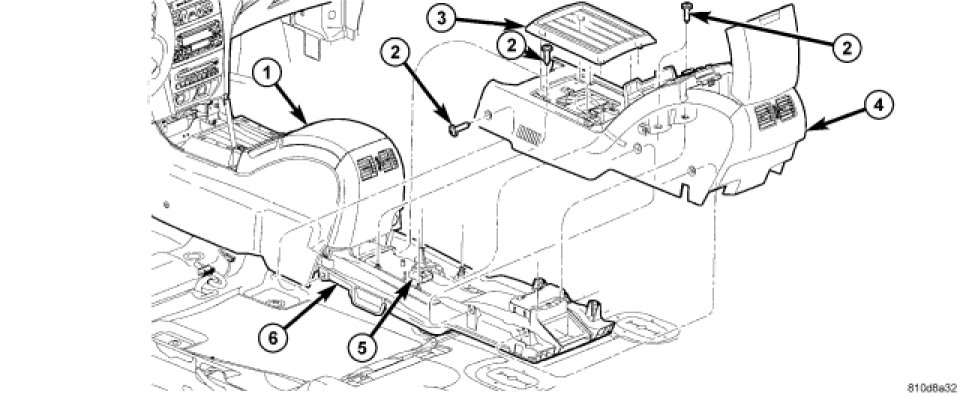

REMOVAL





1. Using a Trim Stick C-4755 or equivalent, disengage the locking tabs and remove floor console scuff plate.
2. Remove four attaching screws under scuff plate.
3. Open cup holder and remove two attaching screws on the bottom.
4. Remove sidewall attaching screws, three per side.
5. Disconnect the rear floor console wire harness connector and remove rear floor console from vehicle.
