Grille - Installation







INSTALLATION





1. Install grille into fascia opening aligning grill tabs with fascia tab openings.
2. Install fascia. Front Fascia - Installation

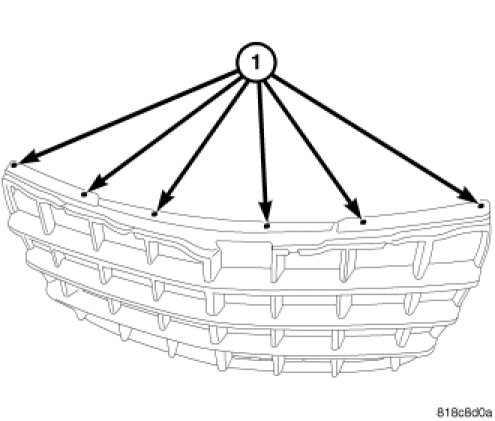

3. Install fasteners into grille openings (1).
