Rear Wheelhouse Splash Shield - Removal

REMOVAL





1. Hoist and support vehicle on safety stands, as necessary.
2. Remove rear wheel.

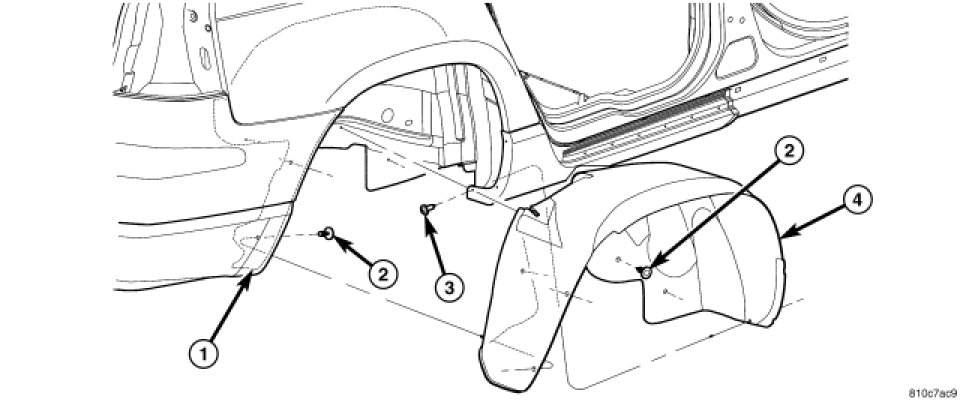

3. Remove screw attaching rear wheelhouse splash shield to cladding.
4. Remove four push pin fasteners attaching splash shield to inner wheelhouse.
5. Remove two push pin fasteners attaching rear splash shield to rear fascia aperture bracket. Removal.
6. Remove splash shield from vehicle.
