Front Wheelhouse Splash Shield - Installation







INSTALLATION

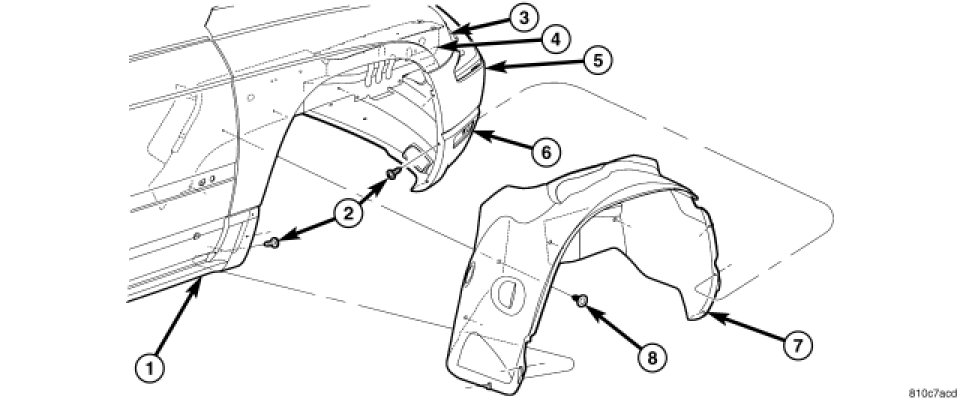

1. Place splash shield into position.
2. Install five screws and four push pin fasteners attaching splash shield to inner wheelhouse.
3. Install front wheel.
4. Remove safety stands and lower vehicle, as necessary.
