Installation

INSTALLATION

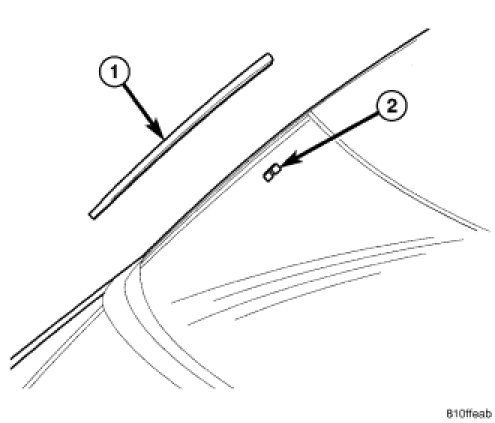

1. Position A-pillar molding windshield clip into position. Tuck lower end of molding under fender, and align to overlay molding to existing roof molding at top of windshield. Maintain a 2 mm gap to the roof molding for thermal expansion.
2. Start from the top to the bottom inserting molding into windshield frame clips.
