Removal - B-Pillar

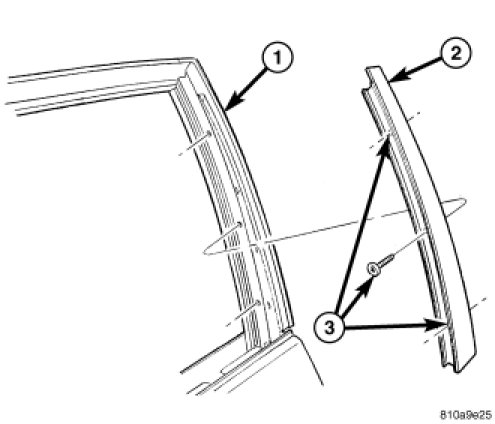

REMOVAL - B-PILLAR





1. Roll door glass down.
2. Remove outer door belt molding, as necessary.
3. Remove screws attaching front edge of applique to door frame.
4. Remove applique from vehicle.
