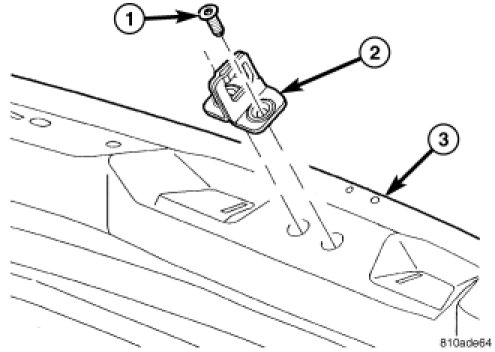

Removal







REMOVAL





1. Open liftgate.
2. Remove liftgate sill scuff plate. Liftgate Sill Scuff Plate - Removal.
3. Mark outline of striker on sill to aid installation.
4. Remove screws attaching striker to sill.
5. Remove striker from vehicle.
