Liftgate Latch - Installation

INSTALLATION

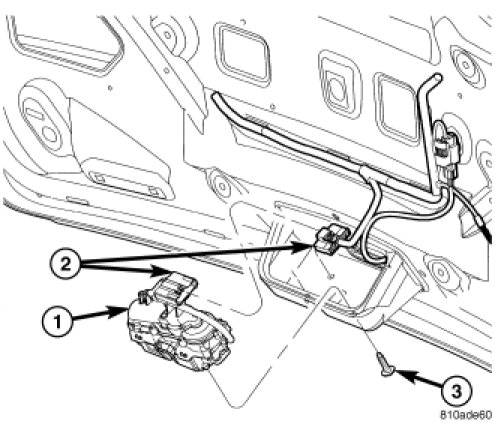

1. Engage link and place latch in position on vehicle.
2. Install screws attaching latch to liftgate. Tighten screws to 11 Nm (95 in. lbs.) torque.
3. Connect wire connector to liftgate latch.
4. Verify liftgate fit and operation. Adjust as necessary.
5. Install liftgate trim panel.
