Upper

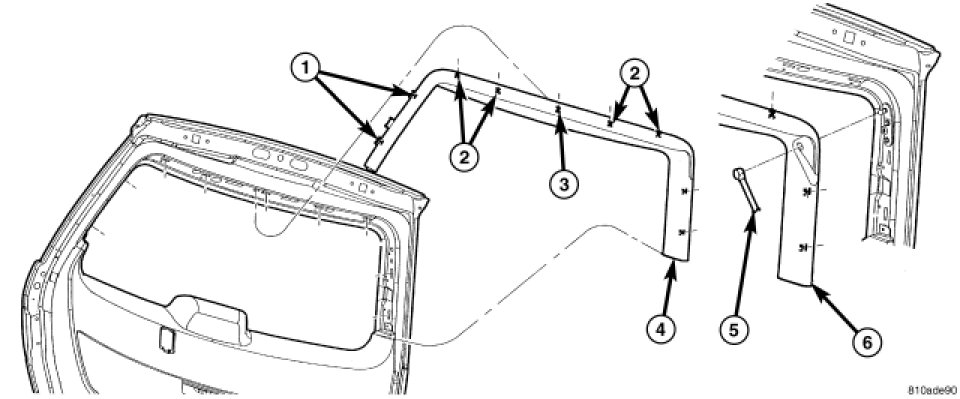

REMOVAL - UPPER





1. Release liftgate latch and open liftgate.
2. Disconnect power liftgate link from ball head bracket, if equipped. Removal.
3. Using a Trim Stick C-4755 or equivalent, disengage the upper trim panel locking tabs.
4. Remove upper trim panel from liftgate.
