Lower

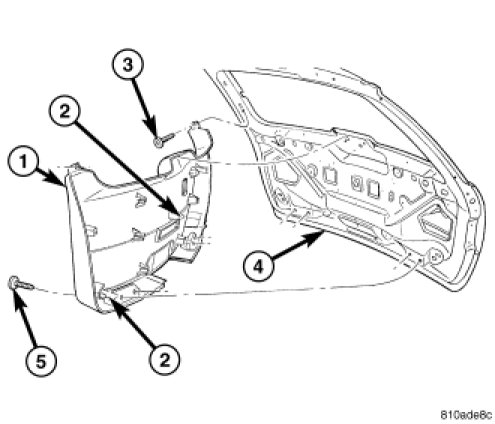

REMOVAL - LOWER





1. Release liftgate latch and open liftgate.
2. Remove liftgate upper trim panel. Liftgate Trim Panel - Removal.
3. Remove the two upper screws attaching trim panel.
4. Remove the six lower screws attaching trim panel.
5. Remove liftgate trim panel from vehicle.
6. Gently pull trim panel away from liftgate to disengage pins and grommets.
7. Remove trim panel from vehicle.
