Thermistor

THERMISTOR

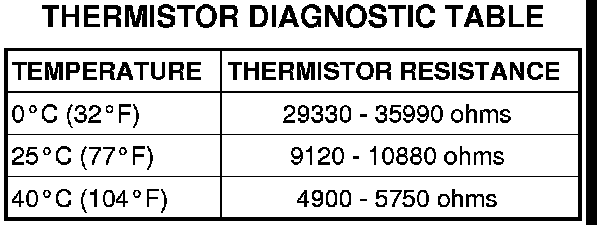

The thermistor provides the temperature signal to the power liftgate control module. Refer to the THERMISTOR DIAGNOSTIC TABLE to test the thermistor resistance.
