Removal

REMOVAL





1. Open the liftgate.
2. Disconnect and isolate the battery negative cable.

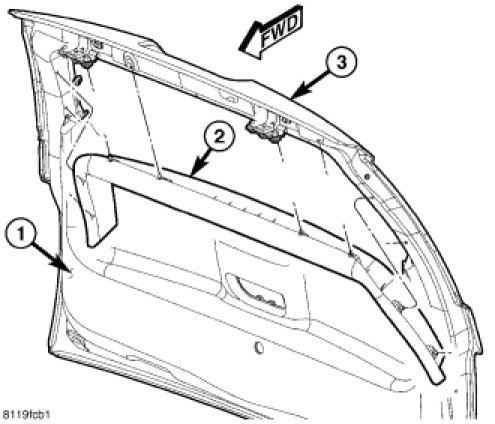

3. Using a trim stick C-4829-A or equivalent, separate the pushpin fasteners and remove the upper trim panel (2).

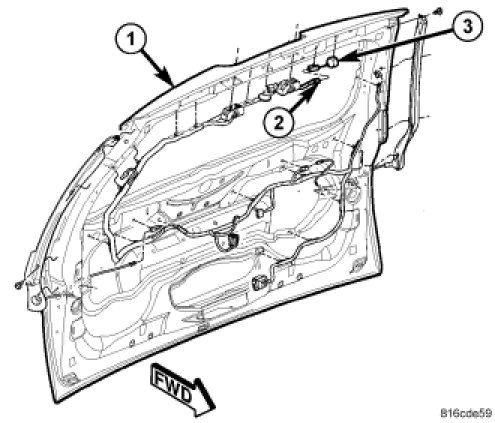

4. Disconnect the chime electrical connector (2).
5. Unsnap the chime (3) from the liftgate (1) and remove from the vehicle.
