Rear Door Latch: Adjustments

ADJUSTMENT

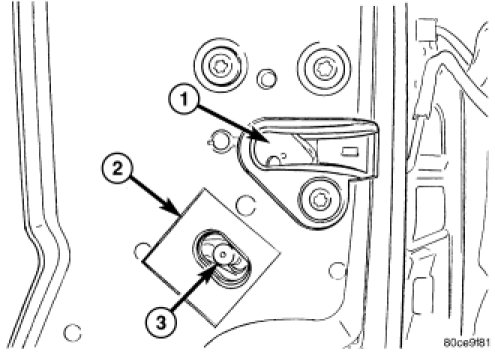

1. Locate access hole and remove the mylar tape covering it.
2. Insert a 5/32 inch hex-wrench through hole and into adjustment screw. Loosen screw.
3. Operate outside handle several times to release any restriction because of misalignment.
4. Tighten adjustment screw to 3 Nm (30 in. lbs.).
5. Test handle for proper operation.
