Rear Bumper Reinforcement Bracket - Removal

REMOVAL





1. Remove rear fascia. Rear Fascia - Removal.
2. Remove rear bumper reinforcement.Rear Bumper Reinforcement - Removal
3. Remove left reinforcement bracket.

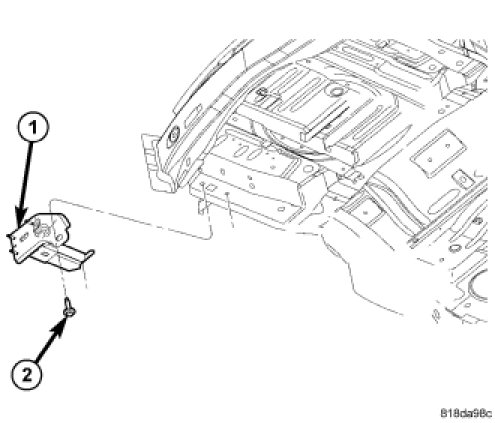

4. Remove two screws (2) attaching reinforcement bracket (1) to the body.

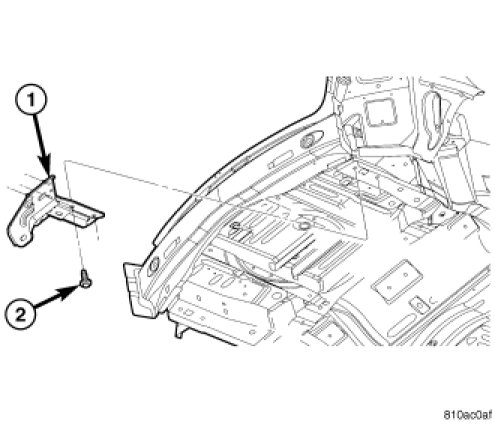

5. Remove right reinforcement bracket fasteners and bracket from body.
