Rear Bumper Reinforcement - Installation

INSTALLATION





1. Support rear bumper reinforcement using a suitable lifting device to lift into position.

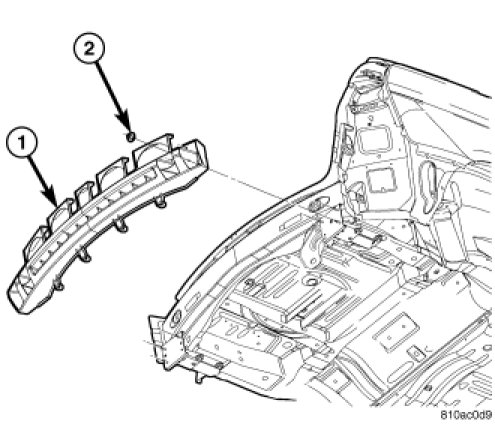

2. Position rear bumper reinforcement (1) on vehicle.
3. Install the six nuts (2) attaching rear bumper reinforcement to frame rail extensions and tighten to 27 Nm (20 ft. lbs.) torque.
4. Install rear bumper fascia. Rear Fascia - Installation.
