Removal

REMOVAL

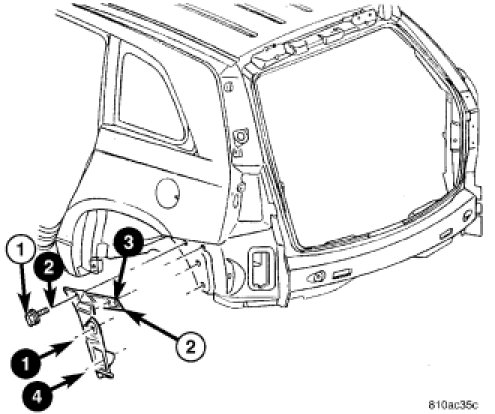

1. Remove rear fascia. Rear Fascia - Removal.
2. Remove two push pins on each side attaching splash shield to rear fascia aperture bracket (2).
3. Remove rear fascia bracket screws (four per side) to aperture panel (left or right side).
4. Remove rear fascia bracket to aperture panel.
